Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender

Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender
Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender
video play

Large Image :  Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender

Product Details:
Place of Origin: CHINA
Brand Name: HENGER
Certification: BV/CCS/DNV/CTC/ISO9001/ISO17357 2014-1
Model Number: PRF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1000-$2000
Packaging Details: Naked/Pallet/wooden box
Delivery Time: 7-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99/days
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Certificate: CCS / BV / LR / ISO17357/DNV/SGS
Shelf Life: 24 Months Specification: Dia 0.5m-4.5m, L 0.7m-9m/Customized
Working Pressure: 50kpa/80kpa Accessories: Tyre Sheath/Swivel/Shackle/Chain
Colour: Black/Blue/As Requirements Material: Natural Rubber
Packing: Naked/Pallet Service Life: 10 Years
High Light:

Marine Pneumatic Rubber Fender

,

Galvanized Pneumatic Rubber Fender

,

Galvanized Ship Tyre Fender

marine pneumatic rubber fender with galvanized/fender yokohama/ship tyre fenders/Yokohama type and pneumatic fenders



Qingdao Henger Shipping Supplies Co., Ltd



Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, R&D, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products match the international standard,such as ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender 0



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.



1. Inflatable Rubber Fender Introduction



The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Progress in the development of such floating inflatable rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.





2. Inflatable Rubber Fender Types



There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM

service and technical design based on customer requirement and actual demand. contact our sales service for more details.

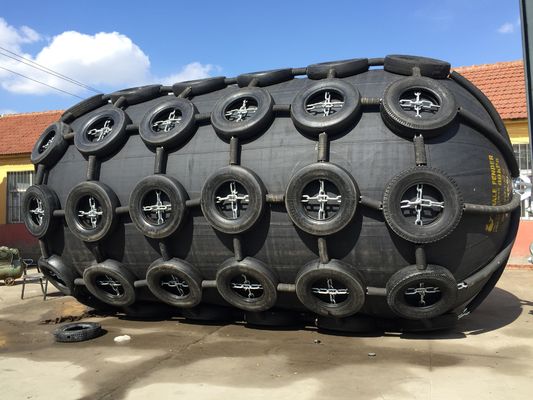

3. Tyre-chain Protective Jacket Type Inflatable Fender Product Show













4. Henger Inflatable Rubber Fender Structure









5. Manufacturing Proces





6. Henger Inflatable Rubber Fender Advantages



6.1. Safety and Reliability

Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.



6.2. No Deterioration or Variation in Performance

Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.



6.3. Advantages at Inclined Berthing

Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.





6.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Inflatable Rubber Fenders ideal. The surface pressure of the Henger Inflatable Rubber Fenders is equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Inflatable Rubber Fenders are popular at LNG-ship terminals.



6.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Inflatable Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Henger Inflatable Rubber Fenders perform well in such cases, and protect ships and mooring facilities.



6.6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Henger Inflatable Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Inflatable Rubber Fenders safely protect ships and mooring facilities even under rough weather.



Technical Parameter

7. Inflatable Rubber Fender Technical Parameter









Fender Size Compression Amount (60%)

Noumenon Weight

(Kg)

Weight with Protective Jacket

(Kg)

D

(mm)

L

(mm)

Reaction

(KN)

Energy Absorption

(KNm)

500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000

* there are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.

* inflatable fender size could be customized according to customer requirement.

* all accessorires could be customized according to customers' requirement or drawings.





8. Inflatable Rubber Fender Model Selection

Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender 1



Model Selection of Inflatable Fender for Small & Middle Size Ship



Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship





Model Selection of Inflatable Fender for Large-tonnage Ship



Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5







8. Inflatable Rubber Fender Model Selection





Model Selection of Inflatable Fender for Small & Middle Size Ship



Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship





Model Selection of Inflatable Fender for Large-tonnage Ship



Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5







Practical Use



Inflatable Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier



Company Introduction



Production Facilities







Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender 2





Packing & Delivery

Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender 3

* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.





After Sales Service



Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality inflatable rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.



Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.





FAQ

Q: Are you trading company or manufacturer?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample but customers need to pay the cost.



Q: What is your terms of payment?

A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.

Marine Pneumatic Rubber Fender With Galvanized Fender Yokohama Ship Tyre Fender 4

* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.





After Sales Service



Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality inflatable rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.



Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.





FAQ

Q: Are you trading company or manufacturer?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample but customers need to pay the cost.



Q: What is your terms of payment?

A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.
