|Product Name:||Pneumatic Rubber Fender||Brand:||Henger|
High Pressure Ship Rubber Fender,
50Kpa Ship Rubber Fender,
50Kpa pneumatic marine fender

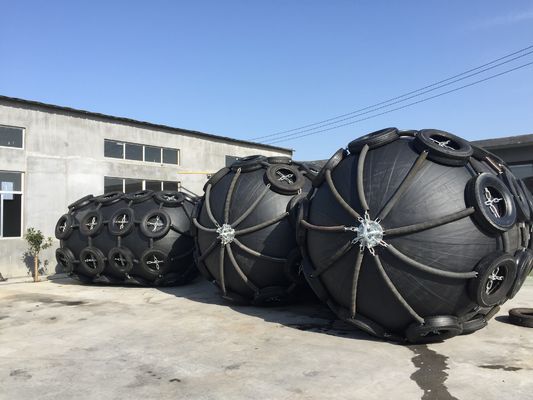

high pressure ship rubber fender with good air tightness 50Kpa yokohama pneumatic rubber fenders
Pneumatic rubber fender introduction
The fender is mainly to withstand the impact force of the ship when the ship is docking, leaving the dock and other forms (such as when the ship is tied to tow), and transmits it to the hull structure of a larger area. Wooden fenders have buffering effect. Although steel fenders have poor buffering effect, they have better strength and can be included in the section of the hull girder (the welding strength must be guaranteed). Especially for large-open deck barges, they can make up for the deck The lack of effective cross-sectional area is conducive to longitudinal strength. Steel materials cannot be used for the fenders of oil barges and small oil tankers.
Large seagoing vessels usually do not have fenders. River boats, work boats, permanent double-track fenders, one of which is located on the upper deck, and the other is located slightly higher than the designed waterline.
Pneumatic rubber fender Parameter
Model Selection Of Pneumatic Rubber Fender For Small & Middle Size Ship
D X L (m)
|50||0.5 x 1.0||Fishing Ship|
|100||0.7 x 1.5 ~ 1.0 x 1.5||Fishing Ship|
|200||1.0 x 1.5 ~ 1.2 x 2.0||Fishing Ship, Towing Ship|
|300-500||1.2 x 2.0 ~ 1.5 x 2.5||Fishing Ship, Towing Ship|
|1000||1.5 x 2.5 ~ 1.5 x 3.0||Towing Ship, Cargo Ship|
|3000||2.0 x 3.0 ~ 2.0 x 3.5||Cargo Ship, Ocean Trawler|
|10000||2.0 x 3.5 ~ 2.5 x 4.0||Cargo Ship|
Model Selection Of Pneumatic Rubber Fender For Large-tonnage Ship
|Assumed Boarding Speed (M/S)||Effective Kinetic Energy (KNM)||
Fender Size D x L
|200000||0.15||1890||3.3 x 6.5|
|150000||0.15||1417||3.3 x 6.5|
|100000||0.15||945||3.0 x 5.0|
|85000||0.17||1031||3.0 x 6.0|
|50000||0.18||680||2.5 x 5.5|
|40000||0.20||672||2.5 x 5.5|
|30000||0.22||609||2.5 x 4.0|
|20000||0.25||525||2.5 x 4.0|
|15000||0.26||425||2.5 x 4.0|
|10000||0.28||329||2.0 x 4.0|
|5000||0.33||228||2.0 x 3.5|
Pneumatic Rubber Fender Features
1. Safety and Reliability
Boat Rubber Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
2. No Deterioration or Variation in Performance
Boat Rubber Fender utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.
3. Advantages at Inclined Berthing
Boat Rubber Fender, energy absorption does not decrease at inclined compression up to 15 degrees.
4. Most Cost Competitive System
The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Boat Rubber Fender ideal. The surface pressure of the Boat Rubber Fender is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals.
5. Soft Reaction Force for Ship and Jetty Structure
The reaction force of Henger Pneumatic Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Boat Rubber Fender perform well in such cases, and protect ships and mooring facilities.
6. Lower Mooring Forces under Rough Weather Conditions
The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.
Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Pneumatic Rubber Fender Application
Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
Pneumatic Rubber Fender storage
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
We are a manufacturer of Inflatable Rubber Fenders and Marine Airbags.We have nearly 20 years of production experience in the production of these two products. Our products have now been sold all over the world. -----------(We have customers in Indonesia, India, Vietnam, Malaysia and other countries in Asia, and we have a lot of sales experience in America, Canada, Brazil, Colombia, Peru and other countries; European countries,such as the United Kingdom, Germany, France, Poland, Russia and other countries have expressed that our products are of high quality and low price, and they want to establish cooperative relations with us.)
We want to find cooperative companies in your country to promote our Henger brand in your country. Because your company is also very strong,we really want to cooperate with you. The MOQ of our product is one, and many customers may purchase hundreds of products at once. So whatever you need, we always can meet your requirement.
