Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber

Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber
Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber
video play

Large Image :  Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: Henger
Certification: Iso 9001、BV、ccs
Model Number: 015
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Naked
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Material: Natural Rubber
Specification: Dia 0.5m-4.5m, L 0.7m-9m/Customized Certificate: CCS / BV / LR / ISO17357/DNV/SGS
Shelf Life: 24 Months Working Pressure: 50kpa/80kpa
Application: Dock,Ship,Ship To Ship Service Life: 10 Years
Production Time: 5-10 Days Payment Method: L/C, D/A, D/P, T/T, Western Union, Moneygram
Accessories: Tyre Sheath/Swivel/Shackle/Chain Packing: Naked/Pallet
Colour: Black/Blue/As Requirements
High Light:

Compressed Pneumatic Rubber Fender

,

Anti Collision Pneumatic Rubber Fender

Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber



Qingdao Henger Marine Supplies Co., Ltd. has long been committed to the product development, production and sales of lifting and moving airbags, inflatable rubber fenders (by ball), and solid polyurethane fenders for the upper and lower discharges of ships. Testing equipment, strict quality management system, the product selection of high-quality materials and special explosion-proof technology, smooth appearance, wear resistance, aging resistance, good air tightness, high strength, long service life, excellent quality, and passed ISO9001: 2000 international quality management system certification, and China Classification Society (CCS) quality certification, and exported to the United Kingdom, Italy, Germany, Pakistan, Malaysia, Singapore, South Korea and other countries and regions, and provide product services for large-scale national construction (Rubber fender, handling air bag, air bag mandrel).
Rubber fender is one of the inflatable fender products and one of the most advanced fender products in the world. It uses compressed air as a buffer medium to absorb the impact energy of the hull, which is similar to the general compressed rubber fender products. It has a special air-impact function, so it is an ideal protective equipment for ships when berthing at sea and port terminals.

Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 0



Specification parameter table:





Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202




Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 1



There are two types of "Henger" inflatable rubber fenders:

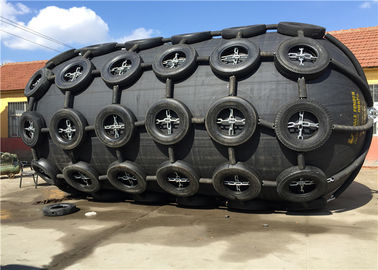

1. Net type fender: The fender is covered with a protective net, which is composed of chains, wires or optical fibers and is usually used with tires or rubber sleeves.
The size of "Henger" pneumatic rubber fender ranges from 500×1000 mm to 4500×12000 mm, including all standard and non-standard sizes.



Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 2



"Henger" pneumatic rubber fender has the following advantages:


1. Meet the requirements of ISO17357:2002
2. More secure and reliable
3. Smaller parking force
4. Adapt to the tide
5 Low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are many optional accessories.



Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 3



"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.





Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 4



Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.



Compressed Air Anti Collision Pneumatic Rubber Fender Boat Fender Rubber 5



Service and transportation:


The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
