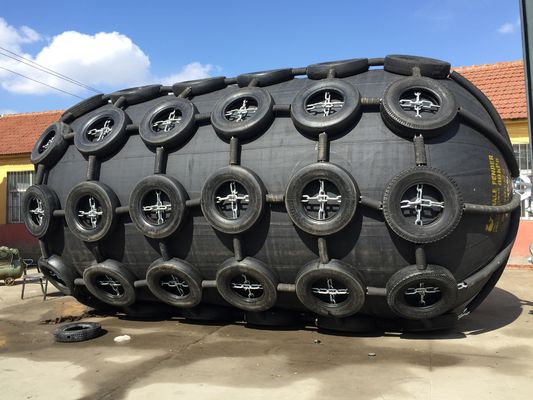

80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders

80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders
80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders
video play

Large Image :  80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: Henger
Certification: Iso 9001、BV、ccs
Model Number: 3300*4500
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Naked
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Material: Customized Size: Customized Size
Product Name: Pneumatic Rubber Fender Warranty Period: 24 Months
Packing: Naked Certification: CCS BV Certification ISO17357 ISO9001,LR,CCS
Design Using Life: 10 Years
High Light:

80kPa Marine Dock Fenders

,

Ship Compressed Marine Dock Fenders

,

80kPa Yokohama Floating Fenders

Pneumatic rubber fender for large oil tanker natural rubber ship



Description of marine pneumatic rubber fender



The pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.





Specification parameter table:





Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154





Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Pneumatic Rubber Fender Features

Advantage:

● Safety and Reliability

● No Deterioration or Variation in Performance

● Most Cost Competitive System

● Lower Mooring Forces under Rough Weather Conditions

● External wear resistance

● Bearing pressure

● Ageing resistance

● Long service life

● Good air tightness

80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders 0

Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.



80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders 1



Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.





80kPa Ship Compressed Marine Marine Dock Fenders Yokohama Floating Fenders 2



Service and transportation:


The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.





Thank you for reading. If you have any needs and interests, you can contact me.
