Features of our Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies: Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product. Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm Standard colors ...

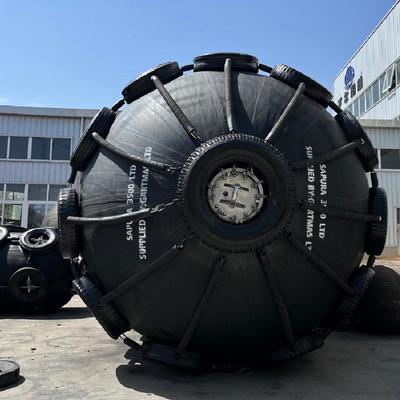

Features of our Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies:
Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
Standard colors gray and black
Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
Comprehensively tested for material and hydrostatic pressure irregularities
Correctly evaluated for angular and durability performance
Clearly marked with all relevant identification
Complete with up-to-date certification
Available in a variety of sizes
Thick outer skin supercedes that of a normal surface fender
Fitted safety valve for fenders of 2.5 m diameter upwards
Pneumatic rubber fender Parameter
| Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
| 50 | 0.5 x1.0 | Fishing ship |
| 100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
| 200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
| 300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
| 1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
| 3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
| 10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
| For Small & Middle Size Ship | ||
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
Pneumatic Rubber Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
