Marine Rubber Airbag with 4-12 Layers for Enhanced Performance and Repair Durable Marine Rubber Airbags feature a 4-12 layer synthetic tire cord design for exceptional durability and performance in demanding marine applications. Product Specifications Material: Rubber Diameter: 0.8-3 M Length: 4-25 ...
Durable Marine Rubber Airbags feature a 4-12 layer synthetic tire cord design for exceptional durability and performance in demanding marine applications.
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
|---|---|---|---|---|---|
| Medium Pressure (4-5) | |||||
| Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 |
| High Pressure (6-8) | |||||
| Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
|---|---|---|---|
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Ship Launching & Upgrading
With over two decades of successful application in China, our marine rubber airbags have established themselves as the most reliable solution for ship launching and upgrading operations. This technology handles vessels ranging from small boats to massive ships weighing tens of thousands of tons, and is widely accepted in international dockyards across North America, Europe, and Southeast Asia.

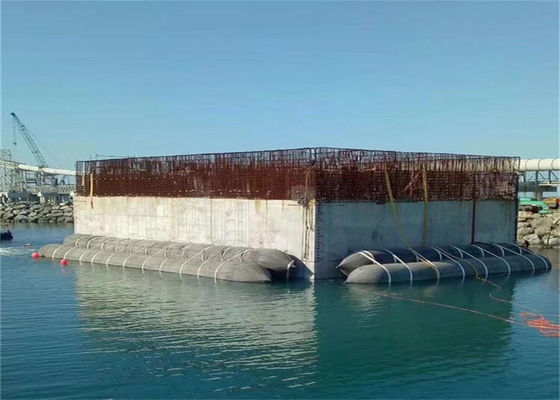

Heavy Lifting & Transportation
Our marine rubber fenders serve as an efficient solution for port construction applications including caisson lifting, launching, relocation, and transportation operations, with robust design and exceptional load-bearing capacity.
Buoyancy Aid & Salvage Operations
With superior buoyancy characteristics and impressive load-bearing capacity, our airbags are indispensable for sunken vessel salvage operations and buoyancy aid applications in challenging marine environments.
Located in Qingdao, a beautiful coastal city, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise specializing in manufacturing marine products including marine rubber fenders, marine airbags, navigation marks, and marine buoys. All products are ISO 9001-2008 certified and have IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing techniques, and complete facilities, we are committed to becoming a top-ranking international marine products manufacturer, providing high quality products and services while ensuring global marine safety.
