Marine Rubber Airbag: 4-12 Layer Construction with Repair Kit Included Product Overview High-Quality Marine Rubber Airbag with Synthetic Tire Cord Layers Application: Salvaging, Ship Launching And Ashoring, Cargo Carrying Condition: New Transport Package: Pallet Material: Rubber Diameter: 0.8-3 M ...

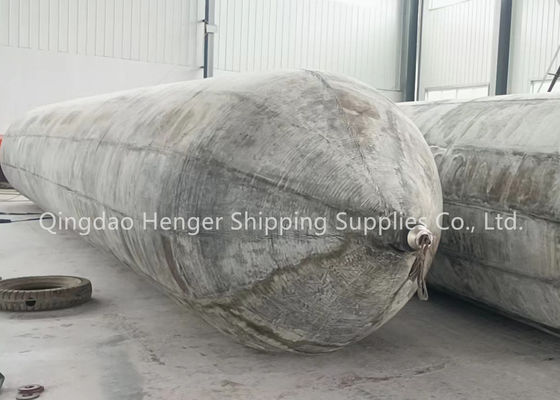

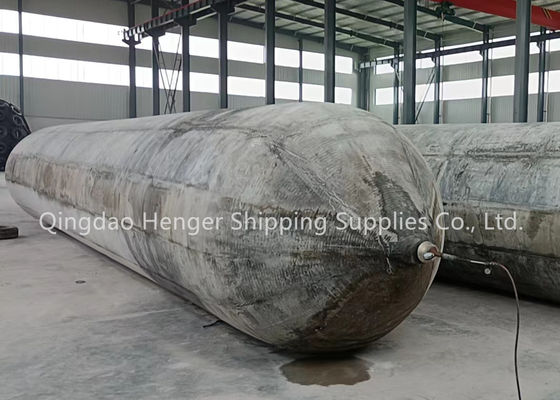

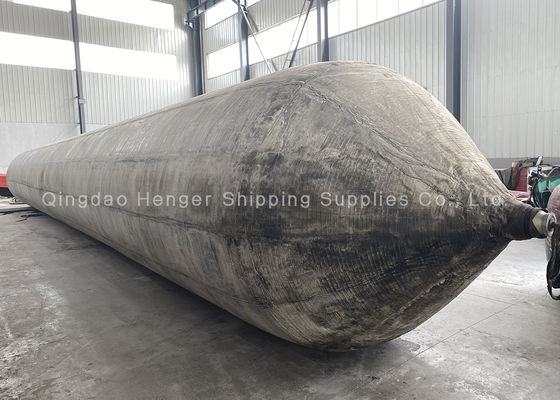

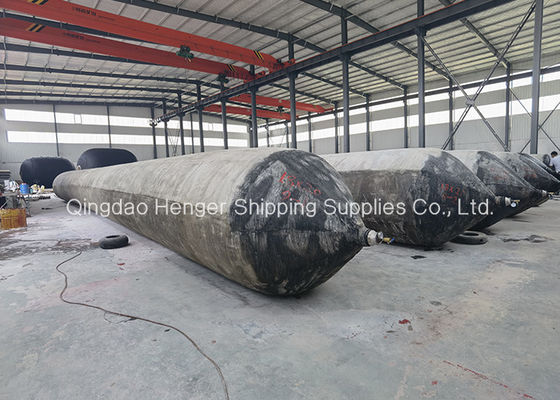

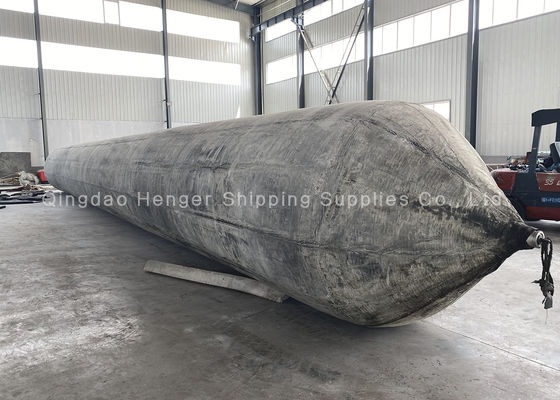

High-Quality Marine Rubber Airbag with Synthetic Tire Cord Layers
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
| Diameter(m) | Medium Pressure (4-5) | High Pressure (6-8) | Test Pressure |
|---|---|---|---|
| 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 | Working Pressure |
| 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 |
Some normal sizes of our Marine Rubber Airbag, customized sizes are also available
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
|---|---|---|---|
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
With over two decades of successful application in China, marine rubber airbags have established themselves as the most reliable and stable solution for ship launching and upgrading operations. This innovative technology demonstrates remarkable versatility, capable of handling vessels ranging from small-tonnage flat-bottom boats to massive ships weighing tens of thousands of tons.
Globally recognized for its effectiveness, our marine rubber airbag technology has earned widespread acceptance among international dockyards, shipyards, and port construction companies. The solution has gained significant market traction across key regions including North America, Europe, and Southeast Asia, where it continues to set industry standards for safety and performance.
Marine rubber fenders serve as an efficient solution for various port construction applications, including caisson lifting, launching, relocation, and transportation operations. Their robust design and exceptional load-bearing capacity make them ideal for demanding marine construction projects.
Capitalizing on their superior buoyancy characteristics and impressive load-bearing capacity, marine rubber airbags have become indispensable tools for sunken vessel salvage operations and buoyancy aid applications. These airbags provide reliable performance in challenging marine environments, offering effective solutions for complex salvage missions.
