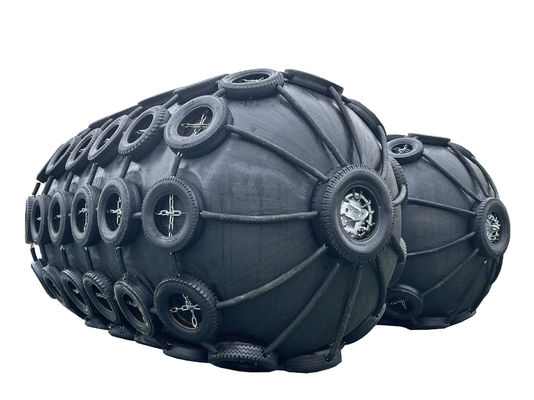

BV Certificate Marine Ship Factory Marine Offshore Pneumatic Rubber Fender

1.Qingdao Henger Shipping Supplies Co., Ltd

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.

2. Inflatable Rubber Fender Introduction

The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Progress in the development of such floating inflatable rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.

Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.

3. Henger Inflatable Rubber Fender Advantages

3.1. Safety and Reliability

Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

3.2. No Deterioration or Variation in Performance

Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.

3.3. Advantages at Inclined Berthing

Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.

3.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Inflatable Rubber Fenders ideal. The surface pressure of the Henger Inflatable Rubber Fenders is equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Inflatable Rubber Fenders are popular at LNG-ship terminals.

3.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Inflatable Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Henger Inflatable Rubber Fenders perform well in such cases, and protect ships and mooring facilities.

3.6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Henger Inflatable Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Inflatable Rubber Fenders safely protect ships and mooring facilities even under rough weather.

4. Manufacturing Proces

4.1. raw material prepare
4.2. inner rubber layer produce

4.3. tyre-cord layer produce
4.4. outer rubber layer produce

4.5. ready for vulcanization

4.6.vulcanization process

4.7. after vulcanization
4.8. wind protective tyre sleeve
4.9. finished pneumatic fender
4.10. air tightness test before delivery
4.11.delivery process
4.12. delivery

 5. Inflatable Rubber Fender Technical Parameter
