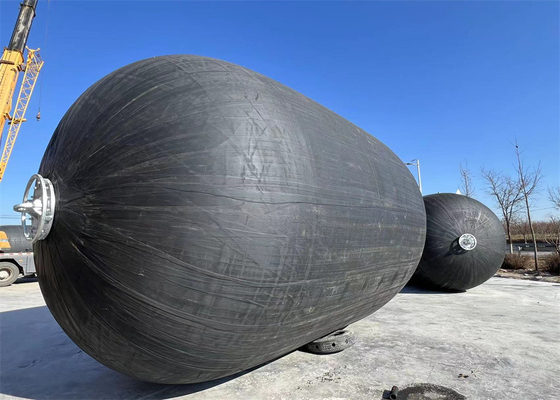

Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection

Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection
Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection
video play

Large Image :  Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV/CCS/DNV/GL/ABS/LG/ISO17357
Model Number: PRF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 1000-8000/set
Packaging Details: Naked/Pallet
Delivery Time: 5-8 days
Payment Terms: L/C,T/T,
Supply Ability: 100sets/Month
Detailed Product Description
Product Name: Yokohama Type Fender Brand: Henger
Application: Ship To Ship Transfer,STS,STD Certification: CCS,BV,ISO17357 ISO9001, ABS, DNV
Specification: 3.3*6.5m,Customized Warranty Period: 24 Months
Part: Marine Equipments, Flange, Pneumatic Boat Fender, Marine Fender, Pneumatic Rubber Fender Payment Method: L/C, T/T, Western Union, MoneyGram
Color: Gray/Black/Customized Accessories: Tyre Sheath/Swivel/Shackle/Chain
High Light:

Sling Pneumatic Marine Fender

,

Edge Port Pneumatic Marine Fender

,

Ship Protection Marine Rubber Fender

Sling Pneumatic Fender Edge Port Marine Fender Inflatable For Ship Protection

Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection 0
Floating pneumatic fenders are used worldwide in Ship-to-Ship (STS) transfer operations, docks and various vessels. Used in ship-to-ship and ship-to-dock operations, fenders play a vital role in the safe operation of ship berthing and mooring.
1. ISO 17357-1:2014 certified
2. Guaranteed energy absorption
3. Low hull pressures
4 Chain tyre net and Sling type
5. Thick skin construction
6. Good angular performance



Henger Pneumatic Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. Operational experience over a long period of time attests to its high safety and reliability, and hydraulic pressure tests have proven the strength to be suitable. Furthermore, large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. The figure below shows data obtained from many destructive pressure tests at various percentage compressions. Such data are used to establish a basic minimum endurable pressure (MEP) curve for pneumatic rubber fenders.



Ships usually make initial contact with the dock or another ship on STS operations at an oblique angle. In the case of solid rubber fenders or foam fenders, rated reaction force and energy absorption decreases considerably at inclined compressions compared with parallel compression. In order to compensate for the decrease of energy absorption at inclined compression, it is necessary to use larger sizes in the case of solid rubber fenders or foam fenders.

Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection 1

Distribution of load is also comparatively even because of the molecular freedom of air and high flexibility of the multi-layered cord-reinforced rubber membrane. This makes the body of a pneumatic rubber fender more shape conformant compared to solid or foam fenders, and thus able to better distribute the load along the hull of a ship or jetty structure during inclined compression.



Henger Pneumatic Rubber Fenders basically float on the water in an unrestricted vertical plane corresponding to the tidal range and ship's vertical movement.
This means that energy absorption always takes place at the most suitable position, and that only one fender is required per dolphin.

Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection 2
Details of Henger Pneumatic Rubber Fenders
Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection 3Edge Port Sling Pneumatic Marine Fender Inflatable For Ship Protection 4

Pneumatic Rubber Fender Technical Parameter

Fender SizeCompression Amount (60%)

Noumenon Weight
(Kg)

Weight with Protective Jacket
(Kg)

D
(mm)

L
(mm)

Reaction
(KN)

Energy Absorption
(KNm)

50010006462335
60010007482840
7001000137175852
100015001823282100
1000200025745148152
1200200029763167200
13502500427102220298
15002500499134270300
15003000579153318450
17003000639191380482
20003500875308580890
2000400010003526801000
25004000138166310641180
250055002019113112681380
300050002422135719802388
300060002906129324002690
330045001884117523802617
330065003015181429803000

* there are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.
* inflatable fender size could be customized according to customer requirement.
* all accessorires could be customized according to customers' requirement or drawings.


Model Selection of Pneumatic Fender for Small & Middle Size Ship

Ship Tonnage(T)Recommendation Size D x L ( m)Ship Type
500.5 x1.0Fishing ship
1000.7 x 1.5~1.0 x 1.5Fishing ship
2001.0 x 1.5~1.2 x 2.0Fishing ship, towing ship
300-5001.2 x 2.0~1.5 x 2.5Fishing ship, towing ship
10001.5 x 2.5~1.5 x 3.0Towing ship, cargo ship
30002.0 x 3.0~2.0 x 3.5cargo ship, ocean trawler
100002.0 x 3.5~2.5 x 4.0cargo ship



Model Selection of Pneumatic Fender for Large-tonnage Ship

Ship Tonnage
(DWT)

Assumed Boarding Speed
(M/S)

Effective Kinetic Energy
(KN.M)

Fender Size D*L
(m)

2000000.1518903.3 x 6.5
1500000.1514173.3 x 6.5
1000000.159453.0 x 5.0
850000.1710313.0 x 6.0
500000.186802.5 x 5.5
400000.206722.5 x 5.5
300000.226092.5 x 4.0
200000.255252.5 x 4.0
150000.264252.5 x 4.0
100000.283292.0 x 4.0
50000.332282.0 x 3.5
