Product Details:
Payment & Shipping Terms:
|
Certification: | CCS,ABS,BV,LR,CCS BV GL | Application: | Salvage,heavy Lifting,ship Launching,landing |
---|---|---|---|
Material: | Natural Rubber | Color: | Black |
Size: | Customer's Ruquirement | Lifespan: | 8~10 Years |
Standard: | ISO14409 | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
Warranty: | 18 Months | Type: | Pnematic |
High Light: | Black Pneumatic Marine Rubber Airbag,Ship Landing Marine Rubber Airbag,Ship Launching Pneumatic Rubber Airbag |
Marine Ship Launching And Landing Rubber Airbag
Marine Ship Launching And Landing Rubber Airbag Introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
KN/m | Ton/m | |||
D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
0.5m | 157.16 | 16.02 | ||
D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
0.6m | 160.3 | 16.34 | ||
D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
0.8m | 143.03 | 14.58 | ||
0.7m | 163.43 | 16.66 | ||
D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
1.0m | 138.22 | 14.09 | ||
0.9m | 155.59 | 15.86 | ||
0.8m | 172.85 | 17.62 | ||
0.7m | 190.22 | 19.39 | ||
D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
1.1m | 141.46 | 14.42 | ||
1.0m | 157.16 | 16.02 | ||
0.9m | 172.85 | 17.62 | ||
0.8m | 188.64 | 19.23 |

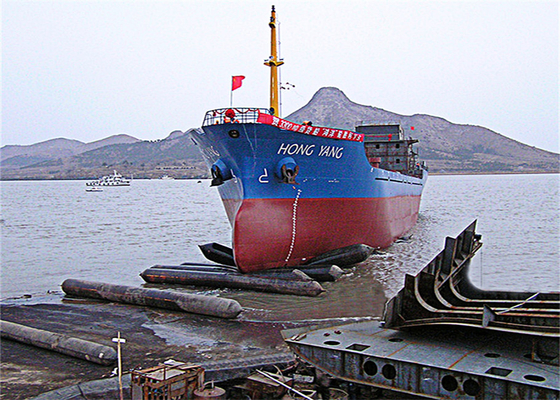

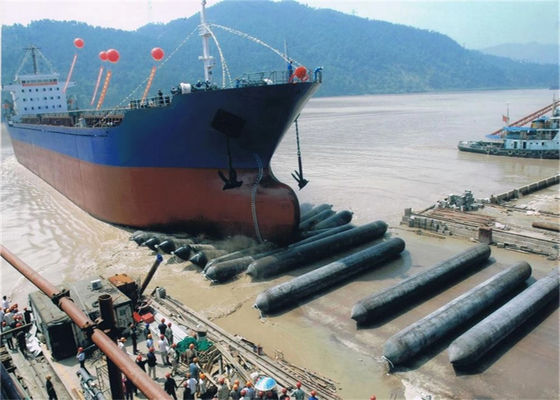

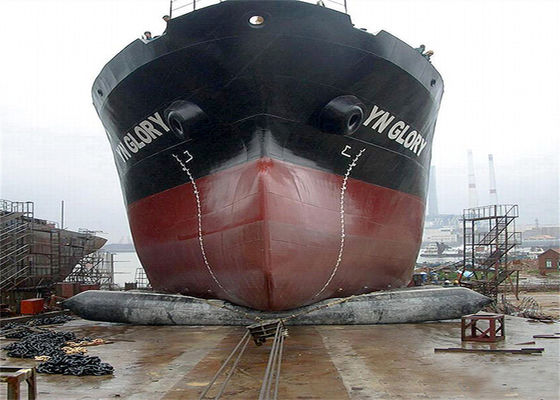

1. Ship Launching & Upgrading
2. Weight Lifting & Moving
3. Buoyancy Aid & Salvage
Upgrade of the airbag end fittings
The material and structure were reformed respectively :
1. Material: The upgraded end fittings are made of stainless steel, which is more resistant to corrosion than the previous hot-dip galvanized material.
2. Structurally: Technical changes have been made to the structure design of the end, and the air retention performance has been greatly improved. After testing, our airbags can be air-tight for 24 hours.
1. While the shipping air launching airbags are in use, strictly control the pressure, prohibit use of exceeding the work pressure.
1. When we don’t use the marine airbag roller for a long time, it should be washed and dried. Should sue the external talcum powder on the lifting airbag surface. Should put the airbag in a dry, ventilated room away from the light source. Keep away the shipping airbags safe to avoid stretching, compression and deformation.
2. Keep the airbag away from heat sources.
3. Can not contact the airbags launching to acids, alkalis, greases and organic solvents.
4. When the airbag ship is not in use, we should keep it in the status of stretched flat, not stacked, and no heavy objects piled on it
Custom logo
We can customize the airbags metal end fitting for you, so you can choose to print your own logo on it.
Whether you use airbags yourself or sell it, it will be your style.
The better news is that we can do this for you for free !
