Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS ABS LR BV TUV ISO,SGS,ABS,BV,CCS | Product Nam: | Ship Airbag |
|---|---|---|---|
| Warranty: | 24 Months | Layers: | Customizable |
| Material: | Natural Rubber | Specification: | Customizable |
| High Light: | Ships Marine Rubber Airbags,CCS Ships Marine Rubber Airbags,Customized Marine Salvage Airbag |
||

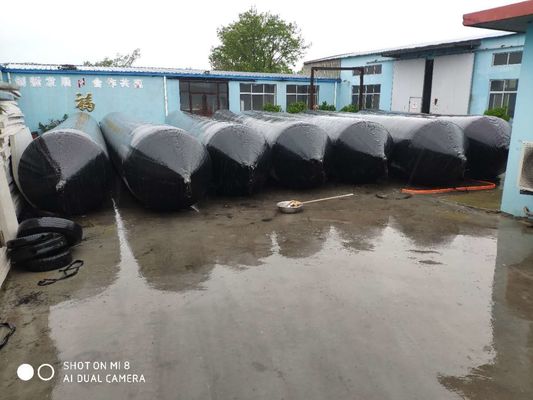

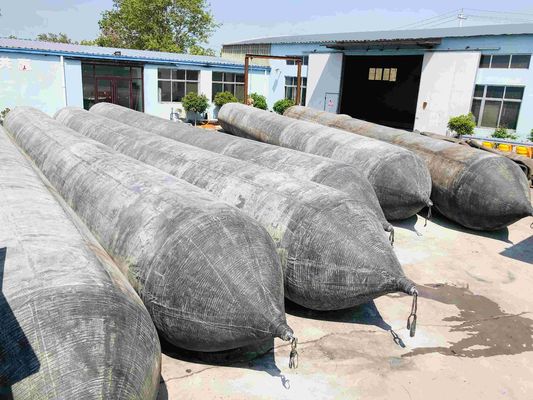

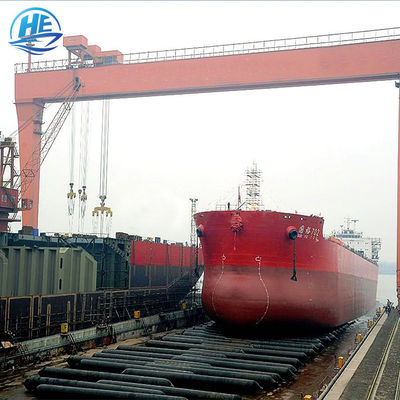

Marine airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric. Airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats. Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||
The airbag is working under bad and poor condition, suffering from long time sunlight exposure, seawater corrosion, impurities pollution, etc. The surface of airbag must be equipped with high capability of abrasion resistance, ageing resistance, corrosion resistance.
Henger airbag is made of natural rubber with special ingredients and unique manufacturing method. The finished airbag could working very well under above mentioned bad and poor working condition.
Henger airbag is manufactured with unique integral twining technique. The airbag wall thickness is uniform with secondary seam in overlap joint. When rolling in slope and uneven ship path, the flexible airbag is helpful to reduce structure stress and ship launching risk.
Heavy distortion phenomenon would cause delamination among airbag layers, then to cause more serious accidents.
Such dangerous distortion phenomenon in ship launching process never happened to Henger Marine Airbags
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
