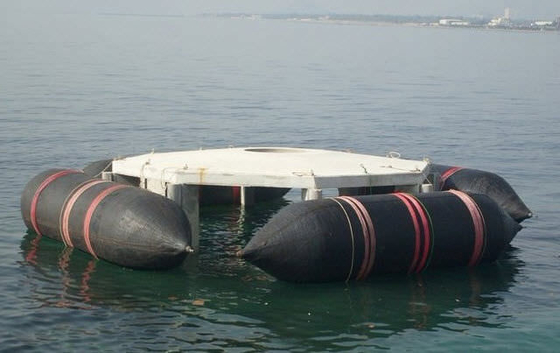

Marine Rubber Airbag Henger Marine Rubber Airbag Upstream Downstream Salvage Aid Floating Heavy Lifting Marine rubber airbag is an innovative product of Chinese own proprietary intellectual property rights. It has wide application like ship upgrading and launching, salvage and buoyancy aid, heavy ...
Lifting marine air bag launching for boats is China independent intellectual property rights of innovative products,the products are mainly applied to ship launching and landing,weight lifting,handling,installation of underwater buoyancy aid etc. Nowadays,Marine rubber airbags are widely used in the world.The products are less limited by space,no large mechanical equipment,can shorten the working period and save the unnecessary cost.Through years of development practice,marine rubber airbag is become more safety effective and green environment protection.
c.Heavy Lifting Airbag
3.Airbag Making Materials
Nylon tire cord layer
Outer rubber
4. Advantages of Henger Marine Airbag
1. The production process adopts N+2 layers of cord, and ordinary companies use N+1 layers of cord.
2. The price competitive advantage is obvious.
3. It can pass various quality inspections such as BV / CIC / CCS in the industry, and comply with ISO9001, ISO17357 and other industry standards.
4. The warranty period is 18 months, which is 6 months longer than that of companies in the same industry.
5. Give free maintenance tools to provide customers with convenience
Advantage:
1. Large carrying capacity
2. High resistance to compression and distortion
3. New design of terminal explosion-proof structure
4. Long-lasting anti-aging and anti-wear properties
5. Higher flexibility and damping capacity
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
5.Marine rubber air board product specification
|
Item Size(D×L)mm |
D (mm) |
L (mm) |
Compression Value60% |
Reference Weight (kg) |
|
| Counter Force(KN) |
Energy Absorption (KJ) |
||||
| Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
| Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
| Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
| Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
| Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
| Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
| Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
| Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
| Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
| Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
| Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
| Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
| Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
| Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
| Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
| Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
| Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
| Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
| Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
6.Why you chose us
a.Professional after-sale staff
For customer problems, after-sales staff will respond within one hour and give solutions as soon as possible.
b.Efficient technical support
The company has 134 employees, of which professional and technical personnel account for 40% of the company's total number of employees, who can respond to various emergency situations in the fastest time.
c.Ingenious source factory
Control the quality of products at the source and have a strict quality supervision system. At the same quality product price, the source manufacturer is lower.
d.Regular return visits to customers
All products sold by our company are tracked and maintained by full-time maintenance personnel during the product warranty period.
