Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of Water

Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of Water
Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of Water
video play

Large Image :  Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of Water

Product Details:
Place of Origin: China
Brand Name: Henger
Model Number: 016
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: paller
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Certification: CCS LRS GL SGS BV Delivery Time: 7-10days
Product Nam: Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag Size: D15*L20m Ship Launching Airbag
Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers Maximum Load: 250T/ M
Warranty Period: 12 Months Application: Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag
Packing: Nude Packing / According To Shipping Requirements Working Pressure: 0.08Mpa
Part: Marine Airbag,Other,Hinge,marine Equipments,Rubber Material: Natural Rubber,Steel,Mixed Rubber With Natural Rubber And Carbon,Nylon Rubber,HDPE
Product Name: Ship Launching Marine Air Bag,marine Rubber Airbag,ship Launching Airbag,BV Certificate Pneumatic Rubber Heavy Lifting Ship Launching Airbag,High Quality Mooring Spherical Steel Buoy Color: Black,grey,Black Orange,accoring To Requirements
Diameter: 0.8--2.5M,1.8m,from 100mm To 250mm,0.6-2.8m,0.4m-2.0m Usage: Ship Launching,landing And Slvage,Protect Boat,moving/lifting/landing /launching,Boat Fender
Standard: CB/T-3837,ISO14409,CB/T-3795,ISO Standard,ISO 14409 Name: Barge Tug Launching High Air-Press Ship Airbag,Marine Rubber Ship Launching Airbags,Pneumatic Marine Rubber Airbags,marine Equipment / Marine Part Air Bag Supplier / Marine Airbag
Technology: High Pressure,Whole Wrapping,anti-explosion Type. Whole-wrapping Technology,Whole Intertwine Technology,Explorsion Proof Length: 15m,5.0m-20m,from 1000mm To 24000mm,18m
Long: 12-18m,8-24m Design Using Life: 10 Years,6-10 Years
Quality: Excellent,Top
High Light:

L20m Marine Rubber Airbags

,

10Layers Marine Rubber Airbags

,

Customizable Ship Launching Airbags

Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of The Water

Adhesive technology of rubber airbag

Bonding between unvulcanized rubber

Addition of rubber adhesive products: I: During the manufacturing process, the mutual bonding and bonding between components is extremely common. The bonding between unvulcanized rubber generally adopts thermal bonding method, because the rubber material generally has good bonding performance during thermal bonding, and the calendering process of semi-products can use thermal bonding to combine the rubber components. Together.

Customizable Marine Rubber Airbags To Assist Boats To Get In And Out Of Water 0

Marine rubber bladders comply with ISO 14409. Marine airbags can be used to launch and upgrade ships up to 100,000DWT. Compared with the traditional berth launching method, the launch of ship airbags is more environmentally friendly, because the ship airbags can be launched at any seaside, without worrying about the construction of launching facilities; in addition, marine airbags require almost no maintenance and can be reused.



ship lift rubber airbag price



Specifications(ISO14409 )
NanjingDeers ND-4 Intensive Air Bag for Ship Launching
Diameter
Working pressure
Working height
Bearing capacity
KN/m
Ton/m
D=1.0m
0.14Mpa
0.6m
87.96
8.98
0.5m
109.96
11.22
0.4m
131.95
13.46
D=1.2m
0.12Mpa
0.7m
94.25
9.62
0.6m
113.10
11.54
0.5m
131.95
13.46
0.4m
150.80
15.39
D=1.5m
0.10Mpa
0.9m
94.25
9.62
0.8m
109.96
11.22
0.7m
125.66
12.82
0.6m
141.37
14.43
0.5m
157.08
16.03
D=1.8m
0.09Mpa
1.1m
98.96
10.10
1.0m
113.10
11.54
0.9m
127.33
12.98
0.8m
141.37
14.43
0.7m
155.51
15.87
0.6m
169.65
17.31
D=2.0m
0.08Mpa
1.2m
100.53
10.26
1.1m
113.10
11.54
1.0m
125.66
12.82
0.9m
138.23
14.11
0.8m
150.80
15.39
0.7m
163.36
16.67
0.6m
175.93
17.95

airbag shipping machine



Henger Airbag Advantages.



1. Technical advantages

The Boat Launching Ship Airbag introduces the world's most advanced inflatable fender production technology, and has hired experienced engineers at home and abroad for training and guidance throughout the year, achieving a true sense of strict compliance with ISO17357-2002 "Ship and Offshore Technology High Pressure Floating Inflatable Rubber Protector" Shipboard" international quality standard production.

2, Production advantage

The company has accumulated 25 years of professional rubber production experience. It is the earliest established, fastest growing, largest production scale, strongest technology and capital, and most stable quality rubber fender supplier in this region.

3, Quality advantage

The company has the most complete raw material inspection equipment, production equipment, and finished product inspection equipment in the industry. It is the first to pass the ISO9001: 2000 international quality management system certification. The products are sold all over the world. The strict and standardized construction requirements, high-quality products and thoughtful after-sales service have been widely praised by users at home and abroad.

4. Price advantage

Imported duty-free rubber is used as the main material, and auxiliary materials for Boat Launching Ship Airbag are purchased from suppliers that have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with the most complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary working hours and waste of materials in production.

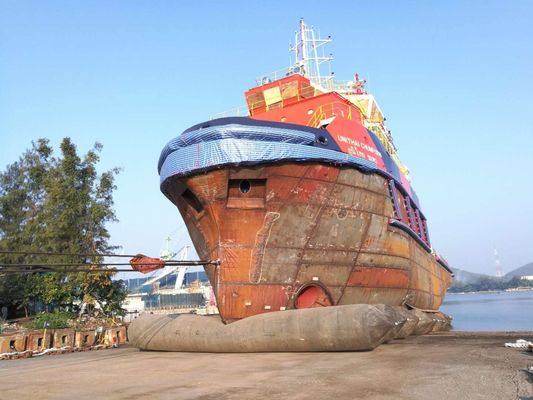

ship lifting airbag







Company introduction



Henger is a comprehensive marine supplies company that integrates lifting and moving airbags for ship's upper and lower discharges, Boat Launching Ship Airbag, polyurethane fenders, product development, production and sales. The company has a group of experienced and skilled research, development, production and sales teams. The company's products use high-quality materials and special explosion-proof technology, with smooth appearance, wear resistance, aging resistance, good air tightness, high strength, long service life, and excellent quality. They have passed the ISO9001:2000 international quality management system certification, and China Classification Society (CCS) quality certification, and exported to the United Kingdom, Italy, Germany, Pakistan, Malaysia, Singapore, South Korea and other countries and regions.
