Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS,ABS,BV,LR,CCS BV GL | Application: | Salvage,heavy Lifting,ship Launching,landing |
|---|---|---|---|
| Material: | Natural Rubber | Color: | Black |
| Size: | Customer's Ruquirement | Lifespan: | 8~10 Years |
| Standard: | ISO14409 | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
| Warranty: | 18 Months | Type: | Pnematic |
| High Light: | Ship Launching Inflatable Roller,8 Layers Ship Launching Inflatable Roller,Pnematic Inflatable Marine Rubber Airbag |
||

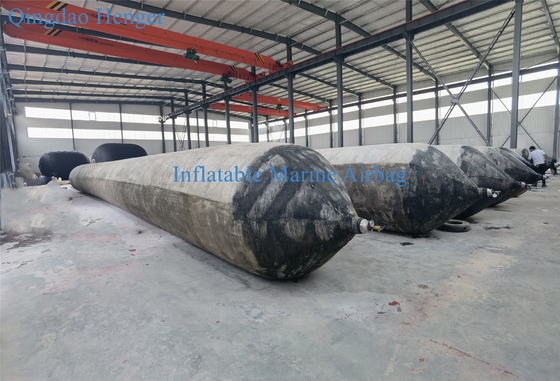

Ship Launching Inflatable Roller 8 Layers Marine Rubber Airbag
Marine Rubber Airbag Introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
| Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
| KN/m | Ton/m | |||
| D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
| 0.5m | 157.16 | 16.02 | ||
| D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
| 0.6m | 160.3 | 16.34 | ||
| D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
| 0.8m | 143.03 | 14.58 | ||
| 0.7m | 163.43 | 16.66 | ||
| D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
| 1.0m | 138.22 | 14.09 | ||
| 0.9m | 155.59 | 15.86 | ||
| 0.8m | 172.85 | 17.62 | ||
| 0.7m | 190.22 | 19.39 | ||
| D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
| 1.1m | 141.46 | 14.42 | ||
| 1.0m | 157.16 | 16.02 | ||
| 0.9m | 172.85 | 17.62 | ||
| 0.8m | 188.64 | 19.23 | ||

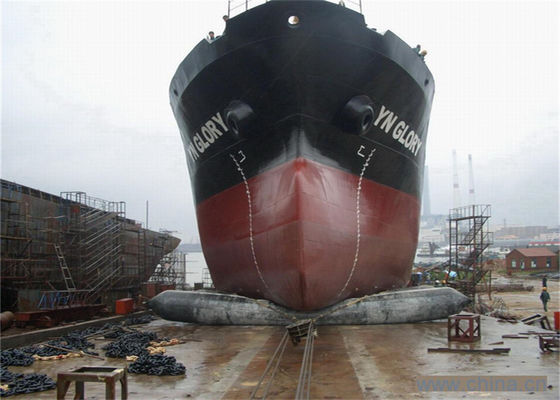

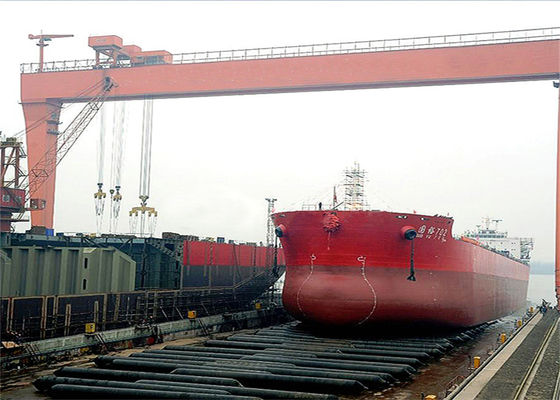

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
1. Minimum Order Quantity ( MOQ): 1 Pcs
2. Delivery time: 7 days ( depends on the quantity of order)
3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.
4. Production standard: ISO14409 & GB/T 3795-1996
5. Expected lifespan: 10-15 years.
6. Warranty period: 24 Monthes
7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
