The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized

Key Attributes
Brand Name: Henger
Model Number: HE-HPF
Place of Origin: China
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Supply Ability: 10PCS PER WEEK
Delivery Time: 7-15 WORKING DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Standard Packaging: NUDE/PALLET

Product Summary

The origin and function of inflatable rubber airbag What is the first use of an airbag when a ship is launched? The history of launching ships with airbags can be traced back to 1981, at the Xiaoqinghe Shipyard in Jinan On January 20, 1981, a 60-dwt airbag-suspended oil tanker was launched in ...

Product Custom Attributes

Highlight

0.17 MPa Rubber Inflatable Airbags

,

Marine Up And Down Water Airbags

,

Customize Rubber Inflatable Airbags

Product Name:
Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag
Brand:
HENGER
Material:
Natural Rubber
Size:
D0.5-4.5
Lifespan:
8~10 Years
Layer:
5/ 6/ 7 / 8 / 9 / 10 Layers
Working Pressure:
0.05MPa-0.17MPa
Product Description

The origin and function of inflatable rubber airbag



What is the first use of an airbag when a ship is launched?


The history of launching ships with airbags can be traced back to 1981, at the Xiaoqinghe Shipyard in Jinan
On January 20, 1981, a 60-dwt airbag-suspended oil tanker was launched in Shandong Province. 7 airbags deployed
in that project. One is 2 meters in diameter and 6 meters long for lifting. The remaining six airbags are 0.8 meters
x 6 meters long and acts as a roller. The original intent of the test launch was to develop a fast, less terrain-constrained


A method of launching a ship for war purposes.



1. Airbags for launching and launching of ships

2. Airbags for lifting and moving heavy objects

3. Building mandrels, hollow slab inflatable mandrels, bridge inflatable mandrels

4. Floating salvage airbag

5. Pipeline plugging airbag

The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized 0

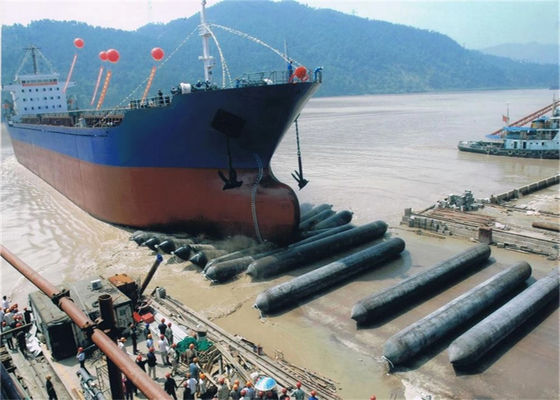

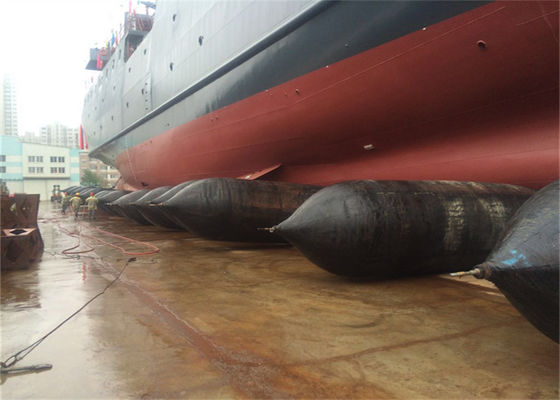

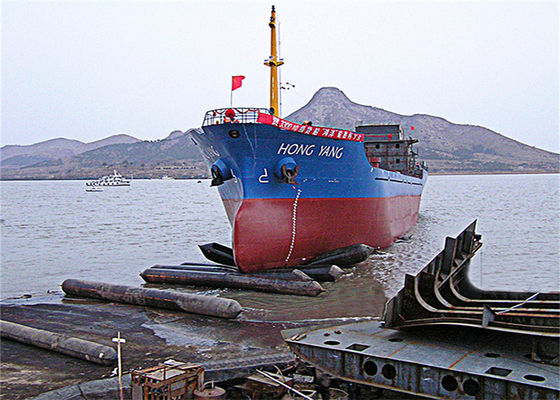

1. Launching and launching of ships:

The application of marine airbags is less restricted by the site and does not require large-scale mechanical equipment, so it can shorten the engineering cycle,

Save a lot of money. After more than 20 years of development and practice, it has been proved that this product is safe, efficient, green and environmentally friendly.

Features such as mobility and flexibility. The launching ship has developed from a flat-bottomed ship with a weight of dozens of tons to a large ship with a weight of tens of thousands of tons.

Practice has proved that the process of launching and launching ship airbags is safe and reliable. At present, this technology has been adopted by the shipbuilding industry at home and abroad,

Recognized by the port construction industry, the airbag launching technology has been promoted to a certain extent in the United States, Europe, Southeast Asia and other countries.

The production and application of marine airbags are mainly carried out with reference to two industry standards: CB/T3795 "The upper row and launch of ships"

Airbags", CB/T3837 "Technical requirements for the upper discharge and launching of airbags for ships".

The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized 1

2. Lifting and moving heavy objects:

The air bag used for lifting and moving heavy objects is an innovative product with my country's independent intellectual property rights and has been widely used at present.

Underwater lifting and transportation of heavy objects such as caisson landing, transportation of other heavy objects, and underwater installation works

The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized 2

3. Assisted floating salvage:

Marine airbags can generate greater buoyancy and have strong load-bearing capacity, and are widely used in the rescue of stranded ships and other

Floating and salvage fields in rivers, seas, lakes and other regions.

The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized 3

4: Inner mold airbag for construction

Capsules for hollow slabs of bridge construction Airbags for culvert concrete pouring instead of wood and steel forms, saving costs,

Improve efficiency.

The world's best-selling inflatable rubber airbags assist ships in launching and launching, and can be customized 4

5: pipeline blocking airbag

Fire pipeline plugging airbags, oil and gas pipeline plugging airbags, groundwater gas leaking airbags, isolation airbags

Airbags for closed pipelines in underground construction

Advantages of Aorunda rubber marine airbags:

1. High-quality original imported rubber compound (Thailand RSS3)

2. Strict and special explosion-proof production process

3. Smooth appearance, physical wear resistance, oil resistance, aging resistance, high acid and alkali resistance

4. Large bearing capacity, good air tightness, high strength, safe and reliable.

5. long lasting



Introduction of Heavy Duty Ship and Boat Launching Lifting Salvage Marine Rubber Airbag

Lifting rubber airbag are also known as air bags, ship lifting airbag, ship rubber airbag,rubber tube, ship salvage airbag,rubber pontoon,inflatable air bags, air lifting bags, air balloon,salvage bags,ship launching rubber airbag. Airbag now are used for ship launching,loading and floating.They are widely used in cargo/boat/ship/vessel launching and landing,lifting and moving sunkenships and heavy goods.

Diameter
0.6 to 2.8m
Effective length
5 to 24m
Layers
From 3 layers to 10 layers or customize according to requirements.
Material
Natural rubber and fabric cord
Working pressure
0.05Mpa~0.17Mpa
Standard
ISO14409
Certification
CCS,BV,ABS,ISO9001
Life span
Over 6-8 years
Warranty period
2 years with best after-sales service
Stocks
Available
Delivery time
Depends on the quantity, usually within 7 days.
MOQ
1 PC
Payment terms
T/T or L/C



Gurateed working puressure of Florescence marine airbag.
Layers/Dimeter
0.8m
1.0m
1.2m
1.5m
1.8m
2.0m
3+1 ply
0.13Mpa
0.10Mpa
0.09Mpa
0.07Mpa
0.06Mpa
0.05Mpa
4+1 ply
0.17Mpa
0.13Mpa
0.11Mpa
0.09Mpa
0.08Mpa
0.07Mpa
5+1 ply
0.21Mpa
0.17Mpa
0.14Mpa
0.11Mpa
0.09Mpa
0.08Mpa
6+1 ply
0.25Mpa
0.20Mpa
0.17Mpa
0.13Mpa
0.11Mpa
0.10Mpa
