Marine Grade U2 U3 Stud Anchor Chain

Key Attributes
Brand Name: Henger
Place of Origin: China
Certification: BV,CCS,KR,LR,NK, ABS
Supply Ability: 3000 Tons per Month
Delivery Time: 1-5 Weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Standard Packaging: NUDE/PALLET

Product Summary

Marine Grade U2 U3 Stud Anchor Chain U2 U3 Stud Anchor Chain Specification = NORMINAL CHAIN DIAMETER (mm) PROOF TEST LOAD(KN) BREADING TEST LOAD(KN) WEIGHT kg/27.5m GRADE2 GRADE3 GRADE2 GRADE3 17.5 127 179 179 256 194 19 150 211 211 301 236 20.5 175 244 244 349 269 22 200 280 280 401 322 24 237 332 ...

Product Custom Attributes

Highlight

U3 Stud Anchor Chain

,

Marine Grade U2 Stud Anchor Chain

,

CM690 Marine Anchor Chain

Product Name:
Anchor Chian
Materia:
CM490,CM690
Color:
Black Or Upon Customer's Requests
Size:
17.5mm-130mm
Application:
Marine Anchorage
Certification:
CCS,BV,LR,RINA,KR,NK,GL,ABS,DNV,RS
Warranty:
1 Year
PPayment Term:
T/T, Western Union Or L/C At Sight
Product Description

Marine Grade U2 U3 Stud Anchor Chain



U2 U3 Stud Anchor Chain Specification



=

NORMINAL CHAIN DIAMETER (mm)

PROOF TEST LOAD(KN) BREADING TEST LOAD(KN) WEIGHT
kg/27.5m
GRADE2 GRADE3 GRADE2 GRADE3
17.5 127 179 179 256 194
19 150 211 211 301 236
20.5 175 244 244 349 269
22 200 280 280 401 322
24 237 332 332 476 370
26 278 389 389 556 431
28 321 449 449 642 496
30 368 514 514 735 564
32 417 583 583 833 635
34 468 655 655 937 712
36 523 732 732 1050 800
38 581 812 812 1160 887
40 640 896 896 1280 1032
42 703 981 981 1400 1084
44 769 1080 1080 1540 1197
46 837 1170 1170 1680 1310
48 908 1270 1270 1810 1438
50 981 1370 1370 1960 1546
52 1060 1480 1480 2110 1661
54 1140 1590 1590 2270 1791
56 1220 1710 1710 2430 1926
58 1290 1810 1810 2600 2086
60 1380 1940 1940 2770 2249
62 1470 2060 2060 2940 2361
64 1560 2190 2190 3130 2516
66 1660 2310 2310 3300 2676
68 1750 2450 2450 3500 2885
70 1840 2580 2580 3690 3010
73 1990 2790 2790 3990 3274
76 2150 3010 3010 4300 3548
78 2260 3160 3160 4500 3737
81 2410 3380 3380 4820 4030
84 2580 3610 3610 5160 4334
87 2750 3850 3850 5500 4650
90 2920 4090 4090 5840 4976
92 3040 4260 4260 6080 5199
95 3230 4510 4510 6440 5544
97 3340 4680 4680 6690 5780
100 3530 4940 4940 7060 6143
102 3660 5120 5120 7320 6398
105 3850 5390 5390 7700 6773
107 3980 5570 5570 7960 7033
111 4250 5940 5940 8480 7569
114 4440 6230 6230 8890 7983
117 4650 6510 6510 9300 8409
120 4850 6810 6810 9720 8863
122 5000 7000 7000 9990 9143
124 5140 7200 7200 10280 9598
127 5350 7490 7490 10710 9908
130 5570 7800 7800 11140 10382





U2 U3 Stud Anchor Chain Inspection



We have in-house facility for each inspection:
1.Chemical analysis by spectrometer
2.Measurement inspection
3.Mechanical properties testing, yield point, tensile strength, elongation
4.Non destructive inspection (NDT): X-ray, dye penetrant test, magnetic particle inspection

5.Dropping test

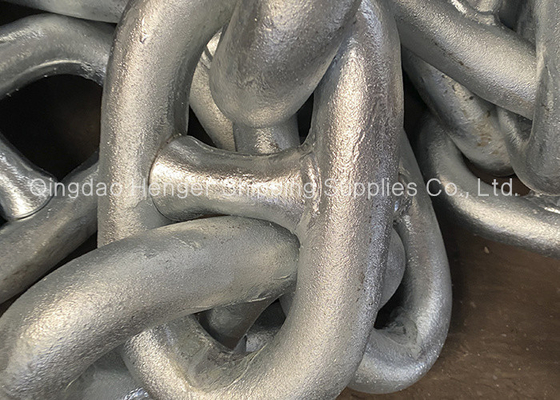

Marine Grade U2 U3 Stud Anchor Chain 0



Our Advantage



1.We are ISO 9000 approved, which enable us to supply our clients with better and better products and service.



1. We've been in this line for more than 15 years, which enable us to know where to get best quality, best delivery time and best price.



2. Our technicial team knows very well about products manufacture and inspection, which enable us to test and inspect products strictly on our clients' ground.



4.We are experienced in exporting our products, which enable us to ship products to our clients safely and economically.

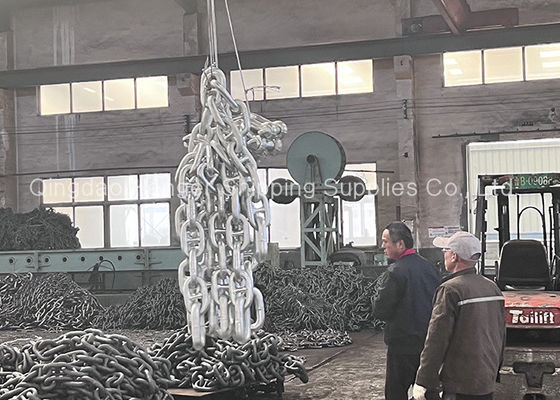

Marine Grade U2 U3 Stud Anchor Chain 1



FAQ



1. Q:How to order the products?
A:Send the details inquiry to us, the more detailed the better. For example, item No., item description, material, size,surface treatment, packing requirement. If possible, it's better attach some reference pictures or drawings or any links from our website to avoid any misunderstanding.


2. Q:About sample:
A:Small and small quantity samples are for free. You only need to bear express charge.


3. Q:About delivery time:
A:Delivery time can be according to your requirement. Usually within 20 days after receipt of order deposit.


4.Q: About mini order:
A:Different products with different MOQ, please contact us to confirm.


5.Q:About payment:
A:T/T, L/C, western union......,please contact us to confirm.


6.Q:How will my order be shipped?
A:Usually shipped by sea, small order or urgent order can be by air or by courier after received your agreement.


7.Q:What's your quality guarantee?
A:We have different kinds of products which can meet different quality standard. Our skilled QC department will test products during each production process. What's more, before packing and shipping, we will test again for each.

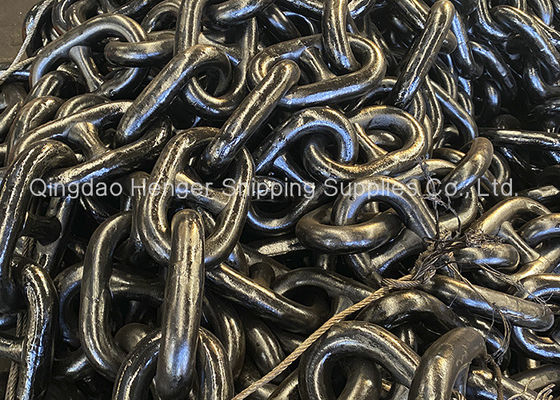

Marine Grade U2 U3 Stud Anchor Chain 2
