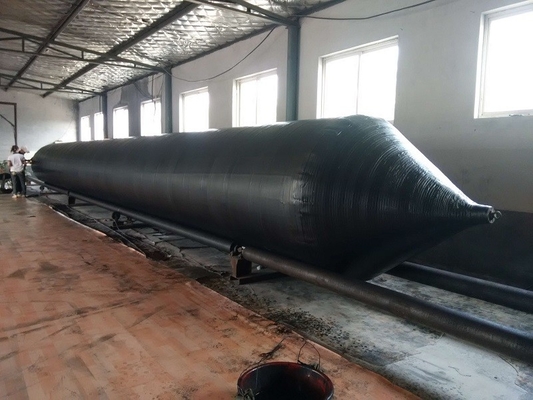

ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m

ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m
ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m
video play

Large Image :  ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m

Product Details:
Place of Origin: Qingdao
Brand Name: HER
Certification: BV / CCS / ISO9001
Model Number: 1.5*15m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Pallet Package
Delivery Time: 7-15
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 100 Pieces per months
Detailed Product Description
Material: Natural Rubber Color: Black
Diameter: 0.8 /1.0 / 1.5 / 1.8 / 2.0 / 2.5m Layer: 4/ 5/ 6/ 7 / 8 / 9 / 10 Layers
Working Pressure: 0.05MPa-0.18MPa
High Light:

7layers Ship Launching Airbags

,

ISO14409 Ship Launching Airbags

,

1.5m Heavy Lift Air Bags

ISO14409 7layers Heavy Lifting 1.5*15m Ship Launching Airbags





Feature of ship airbag



Experienced, professional, reliable, quality guarantee.



ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m 0



Advantages of launching ship airbag



1. Big carrying capacity

2. High capacity against compression and twisting

3. new design of anti-bursting construction at the end

4. Optimized structural layout

5. durable aging resistance and anti-wear characteristic

6. higher flexibility and damping capacity



ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m 1



The classification of launching ship airbag



Classified based on the diameter:



D(m) Diameter 1.0 1.2 1.5 1.8 2.0
Medium pressure air-bag (4-5 layers of dipped tire cord fabric)



Ex-factory

test pressure(Mpa)



0.14-0.16 0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09



Allowable pressure (Mpa)



0.12-0.14 0.10-0.12 0.08-0.10 0.07-0.09 0.06-0.08
High pressure air-bag (6-8 layers of dipped tire cord fabric)



Ex-factory test pressure(Mpa)



0.22-0.26 0.20-0.24 0.15-0.20 0.13-0.16 0.12-0.15

Allowable pressure (Mpa)



0.20-0.24 0.17-0.20 0.13-0.18 0.11-0.14 0.10-0.13



ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m 2

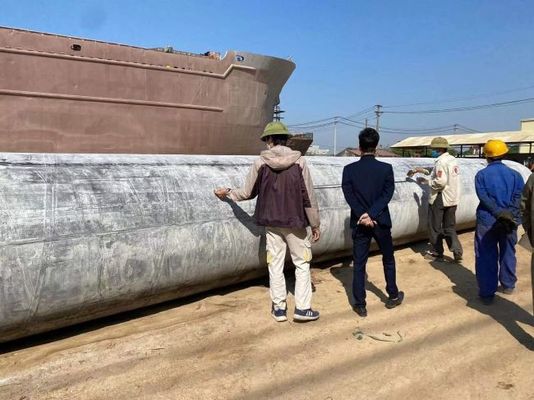

The air-bag application method for common medium ship launching is described as follows



1. Based on calculation result, enough rolling air bags and lifting air-bags, towing machines and air compressors are prepared. Before using, an air bag shall be inflated and tested without load. In case of air leakage, the air bag must be repaired before using.



2. The roads for ship movement, including the road from the shipbuilding berth to ramp, must be cleaned up and flattened. Sundries must be removed from the roads, especially sharp iron nails andstone on the road, to avoid piercing the air bag. The ramp shall be enough long and wide in water



3. All the protruding sharp corners and burrs on casting likeA bracket and stern post and so on shall be ground flush.



4. Fasten the hull with the steel cable of traction winch.



5. Close all the sea chest valves on the ship, fix the rudder and propeller.



6. There are many ways to remove all blockes and fill in the rolling air bag.



7. Adjust pressure in the air bag so that the bottom can be lowered to appropriate working height. Make sure that the bottom will not touch the ground while moving the ship. For average small sized ship, the working height could be chosen Within the range of 0.2-0.3M.



8. All air bags shall be pointed at the center of the ship and perpendicular to the launching direction.



9. Start the traction winch to release steel cable slowing followed by slow movement of the ship. When the forefront air bag located in the front part separates from the bottom, it shall be put into the stern immediately and fill in the air bag according to the arrangmetn space of the air bag defined in the calculations.



10. Repeat the above process to move the ship to waterside slowly. When the air bag cannot be filled in, block the river and no ship is allowed to pass.



11. Evacuate personnel in the dangerous zone, inform staff on the ship to get ready. When conditions such as water depth and so on are gnough. Cut cable or unhook so that the ship can launch quickly. If the river is too narrow to realize quick launching, release the cable slowly by traction winch to launch the ship slowly.



12. For large ships, its necessary to install anti-skip device.

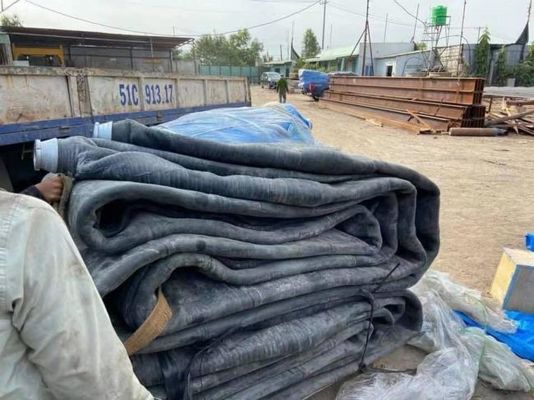

13. Collect air bags.



ISO14409 Heavy Lifting Ship Launching Airbags 7layers 1.5*15m 3



Airbag storage



1. The airbag should not be used for a long time, it should be washed and dried, filled with talcum powder on the outside, and placed in a dry, cool and ventilated place indoors.



2. The place where the air bag is stored should be far away from heat sources.



3. The airbag should not be in contact with acids, alkalis, grease and organic solvents.



4. When the airbag is not in use, it should be stretched out and placed flat, not stacked, and no heavy objects shall be piled on the airbag.



5. Do not drag the airbag on the ground.



FAQ



1. Minimum Order Quantity ( MOQ): 1 Pcs

2. Delivery time: 7 days ( depends on the quantity of order)

3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.

4. Production standard: ISO14409 & GB/T 3795-1996

5. Expected lifespan: 10-15 years.

6. Warranty period: 12 Monthes

7. Factory direct selling of Marine rubber airbags Please inquiry our salespersons for the best price.
