8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated

8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated
8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated

Large Image :  8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-HPF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 50-3000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Application: Salvage,heavy Lifting,ship Launching,landing Material: Natural Rubber
Color: Black Size: Customer's Ruquirement
Lifespan: 8~10 Years Certification: CCS,ABS,BV,LR,CCS BV GL
Standard: ISO14409 Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers
Warranty: 18 Months Type: Pnematic
High Light:

Ship Launching Rubber Airbag

,

8 Layer Ship Launching Rubber Airbag

,

BV Certificate Marine Rubber Airbag

ISO14409 BV Certificate 8 Layer Ship launching Rubber Roller



Introduction



Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.

8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 0

Manufacturing Technology

Whole Intertwine Technology

"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.

Framework

“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.

Technical Requirement

According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  • Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  • Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  • Safety Factor: >4.5
  • Air Tightness: depressurization < 5% after 1hour inflation
  • Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  • Anti-explosion design of end part.
  • 8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 1

Specifications



Diameter Working Pressure Working height Bearing capacity per unit length
KN/m Ton/m
D=1.0m 0.20Mpa 0.6m 125.76 12.82
0.5m 157.16 16.02
D=1.2m 0.17Mpa 0.7m 133.61 13.62
0.6m 160.3 16.34
D=1.5m 0.13Mpa 0.9m 112.63 12.5
0.8m 143.03 14.58
0.7m 163.43 16.66
D=1.8m 0.11Mpa 1.1m 120.96 12.33
1.0m 138.22 14.09
0.9m 155.59 15.86
0.8m 172.85 17.62
0.7m 190.22 19.39
D=2.0m 0.10Mpa 1.2m 125.76 12.82
1.1m 141.46 14.42
1.0m 157.16 16.02
0.9m 172.85 17.62
0.8m 188.64 19.23



Application

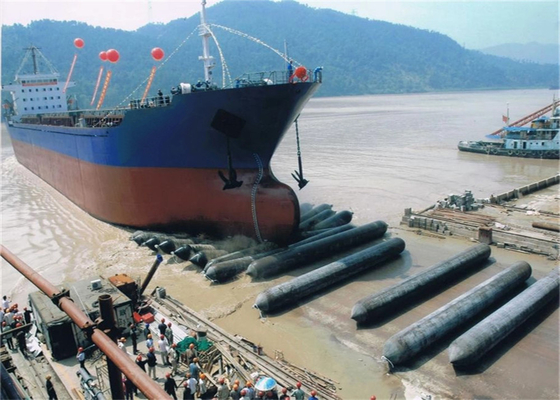

  • Ship Launching & Upgrading

With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.

8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 2

  • Weight Lifting & Moving

Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects

8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 3

  • Buoyancy Aid & Salvage

Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.



8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 4

Notice during the use of the ship balloon:

1. While the shipping air launching airbags are in use, strictly control the pressure, prohibit use of exceeding the work pressure.



  • The surface in contact with the shipping lifting airbag must not have a sharp protruding hard object to prevent the airbag skin from being pierced.
  • Try to avoid distortion in the length of the airbag.
  • Should avoid the inflatable load after we have in charged the air into the airbag.
  • For example, when the ship is erected, when the lifting airbag has lifted most of the hull, remove most of the pier and fill the rolling airbag. If there are 1-2 piers still under compression, the internal pressure between the airbags should be adjusted so that the ship can be removed from the side of the ship. And the pier can not be manually used. Otherwise, the ship may be forced to impact the airbag that has been filled.
  • Another example is the collision with other objects for various reasons during the ship transfer process. In severe cases, the impact airbag may be damaged.
  • Before long time no use or re-use after repair, we should carry out the air filling test again. The air internal pressure should be the same as the factory test value of our factory. The test worker should keep away three meters from the airbag during the test. If the airbag repaired by a large area damage, we should decrease the use pressure. Therefore, for the airbag often used, still need the above test once a year.
  • Do not drag the ship launch airbag on the hard ground.

8 Layer Ship Launching Rubber Airbag ISO14409 BV Certificated 5

Storage of the ship launching airbag



1. When we don’t use the marine airbag roller for a long time, it should be washed and dried. Should sue the external talcum powder on the lifting airbag surface. Should put the airbag in a dry, ventilated room away from the light source. Keep away the shipping airbags safe to avoid stretching, compression and deformation.

2. Keep the airbag away from heat sources.

3. Can not contact the airbags launching to acids, alkalis, greases and organic solvents.

4. When the airbag ship is not in use, we should keep it in the status of stretched flat, not stacked, and no heavy objects piled on it





FAQ



1. Minimum Order Quantity ( MOQ): 1 Pcs

2. Delivery time: 7 days ( depends on the quantity of order)

3. Certificates: ISO 9001:2008, CCS, SGS, BV etc.

4. Production standard: ISO14409 & GB/T 3795-1996

5. Expected lifespan: 10-15 years.

6. Warranty period: 24 Monthes
