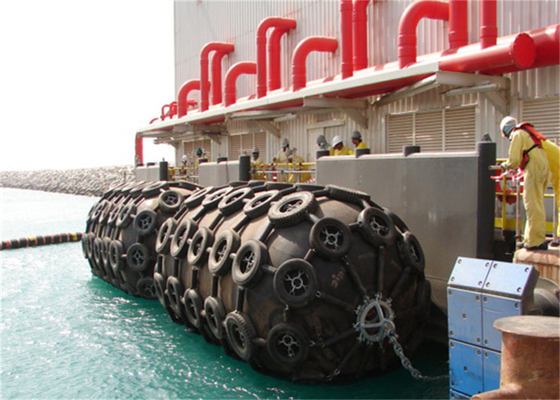

Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies

Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies
Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies
video play

Large Image :  Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS BV ISO17357
Model Number: 500mm x 1000mm-3300mm x 6500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD 230 TO USD 7000 PER PC
Packaging Details: International General Packaging
Delivery Time: 5-8 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 PC PER WEEK
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Brand: Henger
Material: Natural Rubber Specification: Dia 0.5m-4.5m, L 0.7m-9m/Customized
Certificate: CCS / BV / LR / ISO17357/DNV/SGS Shelf Life: 24 Months
Working Pressure: 50kpa/80kpa Application: Dock,Ship,Ship To Ship
Service Life: 10 Years Production Time: 5-10 Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, Moneygram Accessories: Tyre Sheath/Swivel/Shackle/Chain
Packing: Naked/Pallet Colour: Black/Blue/As Requirements
High Light:

Pneumatic Floating Rubber Fender

,

Boats Protection Floating Rubber Fender

,

CCS Dock Pneumatic Rubber Fender

Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies



Product Description

INTRODUCTION OF MARINE PNEUMATIC RUBBER FENDER

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms
Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies 0
Features of our Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies:
Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
Standard colors gray and black
Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
Comprehensively tested for material and hydrostatic pressure irregularities
Correctly evaluated for angular and durability performance
Clearly marked with all relevant identification
Complete with up-to-date certification
Available in a variety of sizes
Thick outer skin supercedes that of a normal surface fender
Fitted safety valve for fenders of 2.5 m diameter upwards

Pneumatic rubber fender

1. Material: thick
2. We use reinforced polymide fiber line.
3. Anchor chain: High quality hot dip galvanizing,more resistant to seawater corrosion, extrusion resistance.
4. Customized tyre intensive inflatable rubber fender,the lifespan will be longer.
5. Guaranteed energy and reaction force is superior.
6. All products comply with ISO standards.



pneumatic yokohama type marine rubber fender

Yokohama floating Marine boat pneumatic rubber fender was based on rubber technology for automotive tires and rubber aircraft fuel tanks. Our fenders are used to protect ships and mooring facilities even when excess load is applied. We can prove different sizes available for various ship-to-ship and ship-to-shore.
Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies 2


Pneumatic fender-net type:



The fender body made by a chain net or rope net etc. Chain nets are able to withstand corrosion longer and are usually built with used tyres and rubber sleeves to provide additional protection. Fiber nets use only rubber sleeves. Wire nets are light and more easily repaired.

The most highlight characteristic of the pneumatic rubber fender is:

The fender is covered by a tire chain net, and this prolong the use life of this inflatable fender.

We use the used tyre for the net of our fenders, all the tire will be done the fresh treatment, the surface is beautiful.

Our chain has the characteristic of anti-UV and anti-sea corrosion. All the chain are zinc galvanized treatment. We also have an PP high density rope to replace Chain, this rope is also anti-uv, anti-sea water, anti-abrasion and anti corrosion.

The diameter from 0.2m to 5m, and the length is from 0.5m to 12m.





The pneumatic fenders are also called inflatable fenders, has the following characteristics:



1. High energy absorption
The energy absorption is the main technical data of the pneumatic rubber fender. As the tonnage of the ship increases, the impact energy of the ship contacting the shore or other vessels increases exponentially during berthing operations. The huge impact energy must be absorbed by the full deformation of the fender and sufficient contact area. Our pneumatic fender compression deformation could be more than 60%, and the contact surface area expanding by the compression deformation increasing. This fenders’ energy absorption ability is much more than other type fenders.
2. Super low reaction force
We fill the low pressure air inside the inflatable fenders, so the inner pressure is increased limited during the compression deformation.
Due to the large contact surface, so the pressure to the ship unit area is low. Compared with other ship fenders, this is not only a low reaction force, it is a super low reaction force.

3. The inclined contact is good during the operation
For ships, there must be a certain angle of access to the shore and the possibility of connecting the ship. Our inflatable pneumatic fenders are much more adaptable to inclined contacts than other fenders.
4. The rubber pneumatic fender will be floating on the water, even the ship swings, it can be applied.
Yutung inflatable fenders float on the surface of the water ( over 50% of the body area). And by the tiding, the fender position will not change with respect to the ship’s position. In particular, when the ship sways with the waves, the cylindrical inflatable fenders roll with little friction. Therefore, it will not damage the shipping coating, and also can ease the swinging and vibrating of ship.
This rubber inflatable fenders have been widely used in oil tankers, container ships, yachts, offshore platforms, large docks, military port terminals, large bridge piers, etc.









Performance of Pneumatic Rubber Fender:





Specifications (mm) Pneumatic 50KPa Pneumatic 80KPa
Diameter Length Energy Absorption(KJ) Reaction Force(KN) Energy Absorption(KJ) Reaction Force(KN)
200 500
300 500
500 1000 6 64 8 80
600 1200 10 86 13 108
700 1500 17 137 21 171
1000 1500 32 181 40 226
1000 2000 45 257 56 321
1200 2000 63 297 79 371
1350 2500 100 426 125 533
1500 3000 153 579 191 724
1700 3000 190 637 238 796
2000 3500 308 875 385 1094
2500 4000 663 1380 829 1725
2500 5500 932 2010 1165 2513
3000 5000 1050 2030 1313 2538
3000 6000 1315 2488 1644 3110
3300 6500 1814 3015 2268 3769
3500 6000 2018 3286 2523 4108
3500 6500 2325 3656 2906 4570
3500 7000 2650 4018 3313 5023
3600 7200 3180 4821 3500 5680
4500 9000 4752 5747 6633 7551
4500 12000 6473 7984 9037 10490





Pneumatic Floating Rubber Fender Protection Boats Ships Marine Supplies 3






Our Services



1. Our service purpose is to let customer satisfaction.

2. By understand your requirement and the objective condition,we can supply the perfect solution.

3. On the premise of not reveal company secrets,we supply technical consulting.
