Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pneumatic Rubber Fender/Marine Fender/Yokohama Fender | Brand: | Henger |
|---|---|---|---|
| Material: | Natural Rubber | Specification: | Dia 0.5m-4.5m, L 0.7m-9m/Customized |
| Certificate: | CCS / BV / LR / ISO17357/DNV/SGS | Shelf Life: | 24 Months |
| Working Pressure: | 50kpa/80kpa | Application: | Dock,Ship,Ship To Ship |
| Service Life: | 10 Years | Production Time: | 5-10 Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, Moneygram | Accessories: | Tyre Sheath/Swivel/Shackle/Chain |
| Packing: | Naked/Pallet | Colour: | Black/Blue/As Requirements |
| High Light: | Pneumatic Floating Rubber Fender,Boats Protection Floating Rubber Fender,CCS Dock Pneumatic Rubber Fender |
||

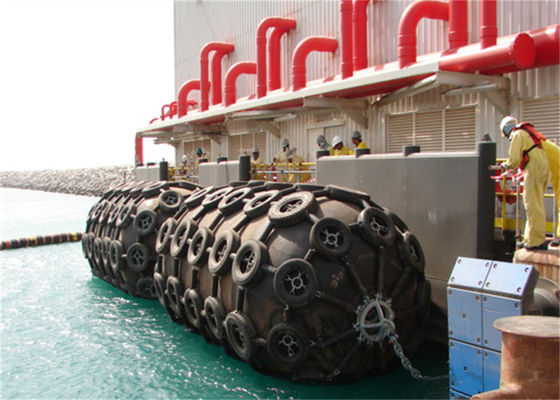

Pneumatic fender-net type:
The fender body made by a chain net or rope net etc. Chain nets are able to withstand corrosion longer and are usually built with used tyres and rubber sleeves to provide additional protection. Fiber nets use only rubber sleeves. Wire nets are light and more easily repaired.
The most highlight characteristic of the pneumatic rubber fender is:

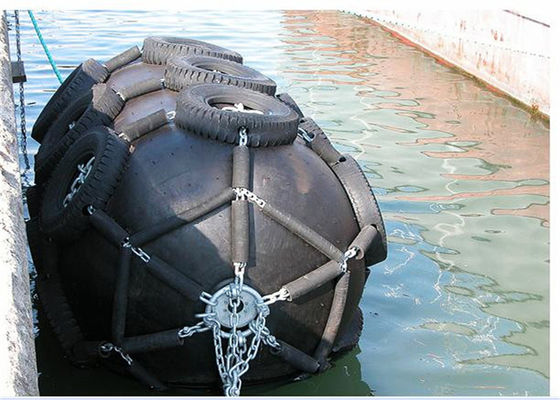

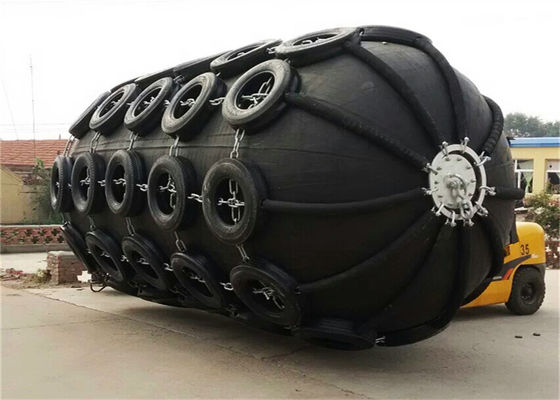

The fender is covered by a tire chain net, and this prolong the use life of this inflatable fender.
We use the used tyre for the net of our fenders, all the tire will be done the fresh treatment, the surface is beautiful.
Our chain has the characteristic of anti-UV and anti-sea corrosion. All the chain are zinc galvanized treatment. We also have an PP high density rope to replace Chain, this rope is also anti-uv, anti-sea water, anti-abrasion and anti corrosion.
The diameter from 0.2m to 5m, and the length is from 0.5m to 12m.
The pneumatic fenders are also called inflatable fenders, has the following characteristics:
| 1. High energy absorption | |
| The energy absorption is the main technical data of the pneumatic rubber fender. As the tonnage of the ship increases, the impact energy of the ship contacting the shore or other vessels increases exponentially during berthing operations. The huge impact energy must be absorbed by the full deformation of the fender and sufficient contact area. Our pneumatic fender compression deformation could be more than 60%, and the contact surface area expanding by the compression deformation increasing. This fenders’ energy absorption ability is much more than other type fenders. | |
| 2. Super low reaction force | |
| We fill the low pressure air inside the inflatable fenders, so the inner pressure is increased limited during the compression deformation. | |
| Due to the large contact surface, so the pressure to the ship unit area is low. Compared with other ship fenders, this is not only a low reaction force, it is a super low reaction force. | |
| 3. The inclined contact is good during the operation | |
| For ships, there must be a certain angle of access to the shore and the possibility of connecting the ship. Our inflatable pneumatic fenders are much more adaptable to inclined contacts than other fenders. | |
| 4. The rubber pneumatic fender will be floating on the water, even the ship swings, it can be applied. | |
| Yutung inflatable fenders float on the surface of the water ( over 50% of the body area). And by the tiding, the fender position will not change with respect to the ship’s position. In particular, when the ship sways with the waves, the cylindrical inflatable fenders roll with little friction. Therefore, it will not damage the shipping coating, and also can ease the swinging and vibrating of ship. | |

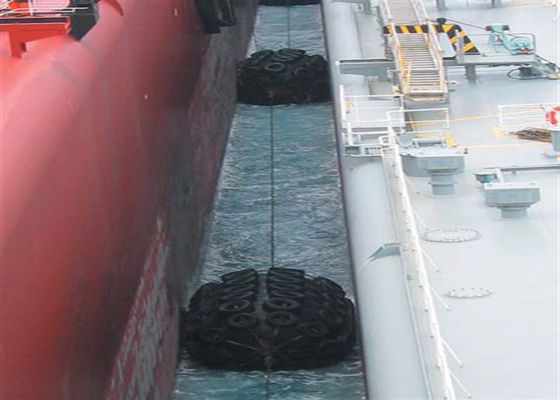

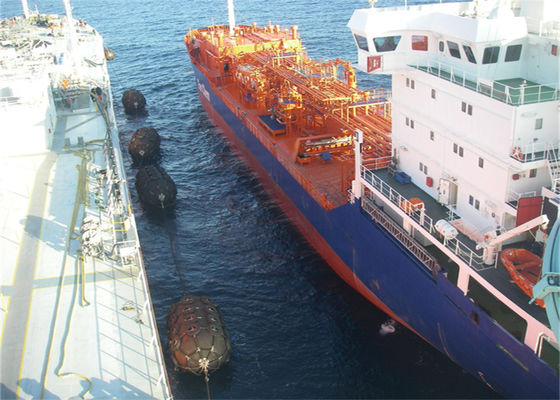

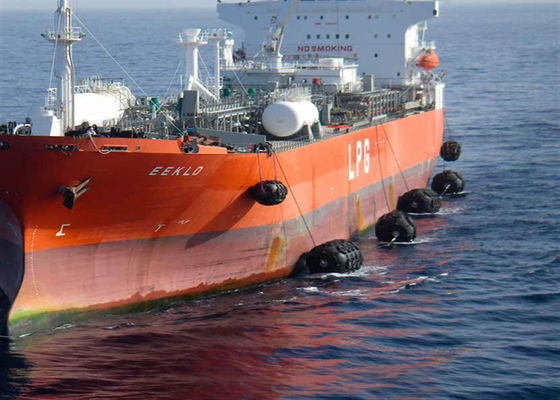

| This rubber inflatable fenders have been widely used in oil tankers, container ships, yachts, offshore platforms, large docks, military port terminals, large bridge piers, etc. | |
Performance of Pneumatic Rubber Fender:
| Specifications (mm) | Pneumatic 50KPa | Pneumatic 80KPa | |||
| Diameter | Length | Energy Absorption(KJ) | Reaction Force(KN) | Energy Absorption(KJ) | Reaction Force(KN) |
| 200 | 500 | ||||
| 300 | 500 | ||||
| 500 | 1000 | 6 | 64 | 8 | 80 |
| 600 | 1200 | 10 | 86 | 13 | 108 |
| 700 | 1500 | 17 | 137 | 21 | 171 |
| 1000 | 1500 | 32 | 181 | 40 | 226 |
| 1000 | 2000 | 45 | 257 | 56 | 321 |
| 1200 | 2000 | 63 | 297 | 79 | 371 |
| 1350 | 2500 | 100 | 426 | 125 | 533 |
| 1500 | 3000 | 153 | 579 | 191 | 724 |
| 1700 | 3000 | 190 | 637 | 238 | 796 |
| 2000 | 3500 | 308 | 875 | 385 | 1094 |
| 2500 | 4000 | 663 | 1380 | 829 | 1725 |
| 2500 | 5500 | 932 | 2010 | 1165 | 2513 |
| 3000 | 5000 | 1050 | 2030 | 1313 | 2538 |
| 3000 | 6000 | 1315 | 2488 | 1644 | 3110 |
| 3300 | 6500 | 1814 | 3015 | 2268 | 3769 |
| 3500 | 6000 | 2018 | 3286 | 2523 | 4108 |
| 3500 | 6500 | 2325 | 3656 | 2906 | 4570 |
| 3500 | 7000 | 2650 | 4018 | 3313 | 5023 |
| 3600 | 7200 | 3180 | 4821 | 3500 | 5680 |
| 4500 | 9000 | 4752 | 5747 | 6633 | 7551 |
| 4500 | 12000 | 6473 | 7984 | 9037 | 10490 |
