Certification: | CCS,ABS,BV,LR,CCS BV GL | Application: | Salvage,heavy Lifting,ship Launching,landing |
---|---|---|---|
Material: | Natural Rubber | Color: | Black |
Size: | Customer's Ruquirement | Lifespan: | 8~10 Years |
Standard: | ISO14409 | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
Warranty: | 18 Months | Type: | Pnematic |
High Light: | Inflatable Marine Rubber Airbag,Landing Marine Rubber Airbag,CCS Ship Launching Airbag |

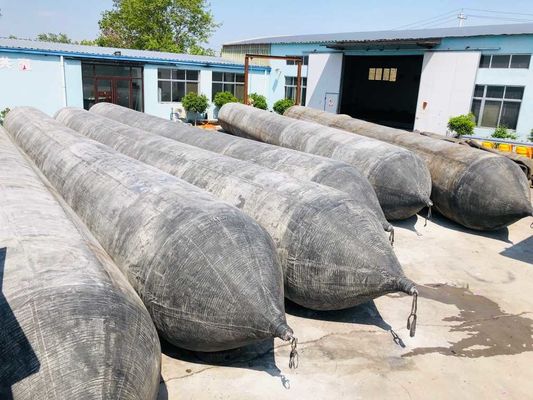

Marine Rubber Airbag also known as rubber airbag, ship air bags, ship launching airbag, ship salvage airbag, boat salvage airbags, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi layer of rubber-dipped tyre fabric.

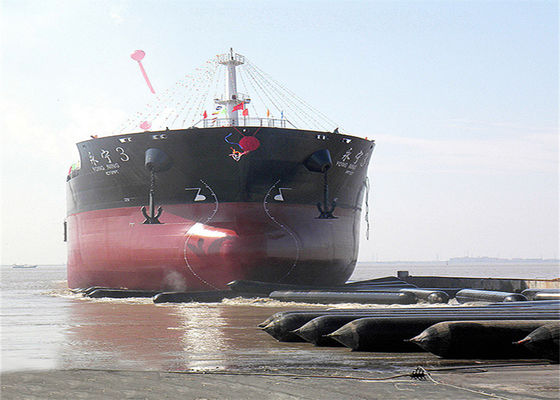

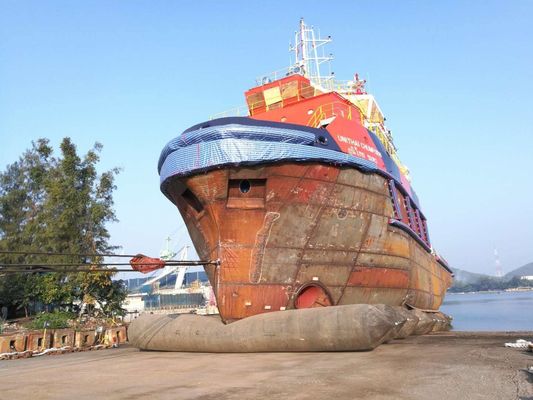

Marine Rubber Airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Marine Rubber Airbag are very popular with shipyard, ship owner, and marine supplies company now.
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Features
1. Long lifespan
2. Movable and reusable
3. Saving investment costs
4. Saving labor and time
Diameter | Working Pressure | Working height | Bearing capacity per unit length | |
KN/m | Ton/m | |||
D=1.0m | 0.20Mpa | 0.6m | 125.76 | 12.82 |
0.5m | 157.16 | 16.02 | ||
D=1.2m | 0.17Mpa | 0.7m | 133.61 | 13.62 |
0.6m | 160.3 | 16.34 | ||
D=1.5m | 0.13Mpa | 0.9m | 112.63 | 12.5 |
0.8m | 143.03 | 14.58 | ||
0.7m | 163.43 | 16.66 | ||
D=1.8m | 0.11Mpa | 1.1m | 120.96 | 12.33 |
1.0m | 138.22 | 14.09 | ||
0.9m | 155.59 | 15.86 | ||
0.8m | 172.85 | 17.62 | ||
0.7m | 190.22 | 19.39 | ||
D=2.0m | 0.10Mpa | 1.2m | 125.76 | 12.82 |
1.1m | 141.46 | 14.42 | ||
1.0m | 157.16 | 16.02 | ||
0.9m | 172.85 | 17.62 | ||
0.8m | 188.64 | 19.23 |
1. When we don’t use the marine airbag roller for a long time, it should be washed and dried. Should sue the external talcum powder on the lifting airbag surface. Should put the airbag in a dry, ventilated room away from the light source. Keep away the shipping airbags safe to avoid stretching, compression and deformation.
2. Keep the airbag away from heat sources.
3. Can not contact the airbags launching to acids, alkalis, greases and organic solvents.
4. When the airbag ship is not in use, we should keep it in the status of stretched flat, not stacked, and no heavy objects piled on it
1. While the shipping air launching airbags are in use, strictly control the pressure, prohibit use of exceeding the work pressure.
FAQ
1."I have ships but don't know how to choose the size of Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
2."I want to try your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China.
3."What's your MOQ?"
Answer: Our MOQ is 1PC.
4."How about the lifespan of your Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China?"
Answer: Designed lifespan of our Factory Price Rubber Inflatable Floating Pontoon for Ship Lanching Made in China is 6 to 10 years
5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.
6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
