Product Details:
Payment & Shipping Terms:
|
| Material: | Natural Rubber | Application: | Ship Launching |
|---|---|---|---|
| Diameter: | 0.8 /1.0 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m | Working Pressure: | 0.05MPa-0.17MPa |
| Color: | Black | Size: | Customized Size |
| Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers | Packing: | Pallet |
| High Light: | 12 Layers Marine Rubber Airbag,4 Layers Marine Rubber Airbag,12 Layers Boat Launching Airbag |
||

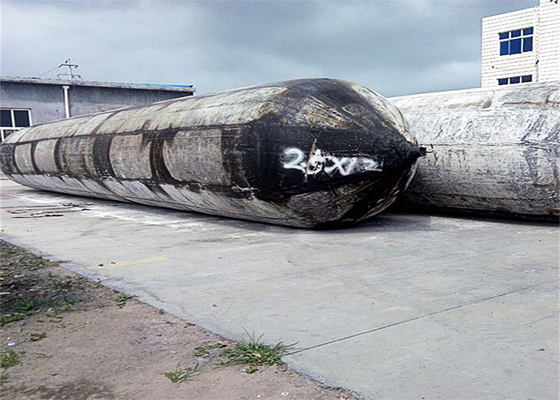

Natural Rubber 2.5*12m 4-12 Layers Boat Launching Marine Rubber Airbag
If you want to work with us, please contact me.
My email address: ediwn-xaio@hengergroup.com
My WhatsApp: +86 13371482686
Product Advantage
The outer rubber is made of natural rubber with hard texture, high toughness, high wear resistance, corrosion resistance and aging resistance, and synthetic rubber such as styrene butadiene and butadiene rubber. Adhesive adopts imported high-strength rubber special adhesive, which completely solves the phenomenon of degumming between each layer of the airbag.
Technical Requirement
According to CB/T 3795--1996, marine rubber fender should meet the following requirements.
Diameter & Effective Length Deviation: ±2%
Total Length Deviation: ±4%
Specifications
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Rubber Airbag Application

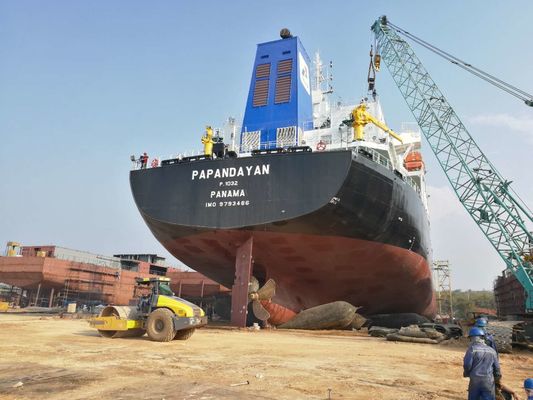

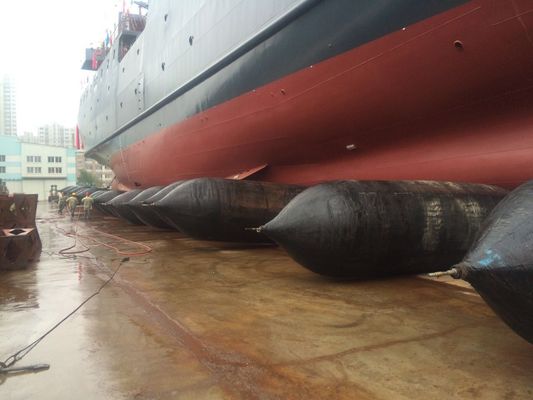

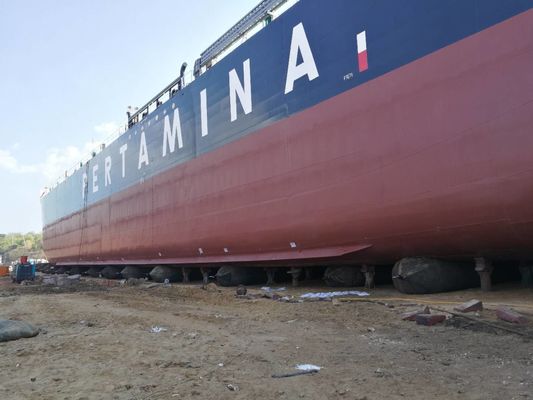

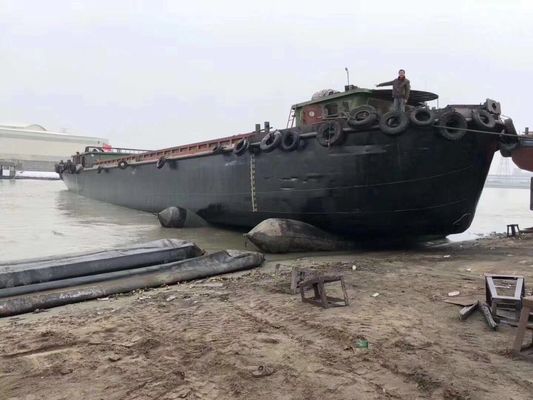

1.Ship Launching & Upgrading
2.Weight Lifting & Moving
3.Buoyancy Aid & Salvage
1.One-to-one VIP service.
2.Lifelong after-sale service.
3.Professional suggestions for suitable marine rubber airbag size and quantity.
4.Teach customers to use the marine rubber airbag on site .
5.Any questions will be replied within 24 hours.
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
