MOQ: | 1pcs |
Standard Packaging: | Naked |
Delivery Period: | 5day |
Payment Method: | L/C, D/A, D/P, T/T |
Supply Capacity: | 50pcs week |

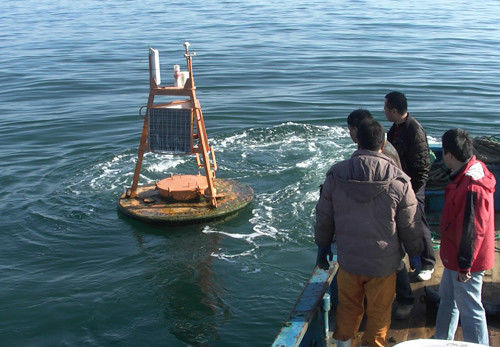

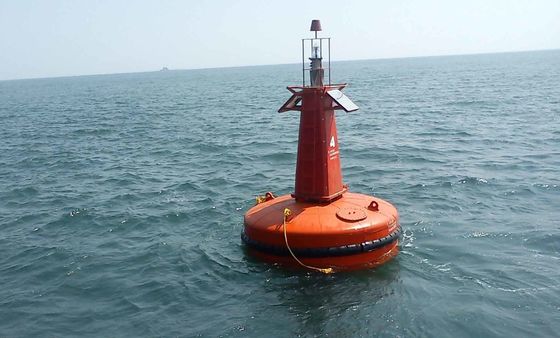

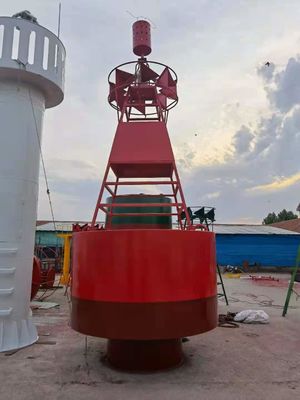

Indicative Floating Polyethylene Marine Navigation Buoys
Navigation Buoys Description
Navigation buoy is an artificial sign that helps guide the ship to navigate, locate and mark obstructions and warning, and provide safety information for various kinds of water activities. Navigation buoy are located in or near navigable waters to indicate the location of waterways, anchorages, beach hazards and other obstructions, to indicate water depth and wind regime, and to direct traffic in narrow waterways.
Polyethylene Navigation Buoy Technical Parameter
Type | HNF0.8 | HNF1.2 | HNF1.5 | HNF1.8 | HNF2.4 | HNF3.0 |
Body Diameter(mm) | 800 | 1200 | 1500 | 1800 | 2400 | 3000 |
Overall Height(mm) | 1600 | 2250 | 3900 | 5500 | 7400 | 4850 |
Free board(mm) | 400 | 400 | 600 | 700 | 1000 | 600 |
Focal Plane Height(mm) | 1095 | 1680 | 2660 | 3175 | 4575 | 3050 |
Draft(mm) | 600 | 600 | 1200 | 2500 | 3000 | 1300 |
Reserved Buoyancy(kg) | 200 | 450 | 1000 | 1780 | 4500 | 4200 |
Steel Navigation Buoy Technical Parameter
Type |
Body Diameter (mm) |
Height (mm) |
Lantern Support Height (mm) |
Local Height (mm) |
Lantern |
Draft (mm) |
Water Depth (m) |
HF1.5-D1 |
1500 |
5300 |
1800 |
2600 |
LED155 |
1150 |
3.5-15 |
HF1.8-D1 |
1800 |
5240 |
2350 |
2900 |
LED155 |
2100 |
6-15 |
HF2.4-D1 |
2400 |
7780 |
3040 |
4150 |
LED155 |
3830 |
13-40 |
HF3.0-D1 |
3000 |
7980 |
3450 |
4600 |
LED155 |
3480 |
13-40 |
HF1.5-D2 |
1500 |
3204 |
1270 |
1620 |
LED155 |
1100 |
<2 |
HF1.8-D2 |
1800 |
4270 |
2340 |
2940 |
LED155 |
1330 |
<10 |
HF2.4-D2 |
2400 |
5700 |
3040 |
3980 |
LED155 |
1720 |
<30 |
FAQ :
Q: Are you a factory or a trading company
A: We are a directly managed factory, welcome to visit us in Hefei, Anhui
Q: What size buoy can you provide?
A: Buoys, navigation buoys and mooring buoys with a diameter of 0.5m to 15m
Q: What kind of certificate can I get?
A: ZC, CCS, BV, RINA, KR, NK, GL, ABS, DNV
Q: How long is the delivery time?
A: Usually within 25 days
Q: What is the warranty?
A: 2 years after delivery
Q: Do you have foreign experience?
A: Yes, the products are exported to various foreign countries, and we also have foreign engineering projects.
