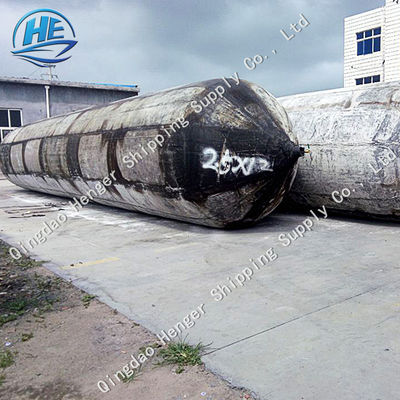

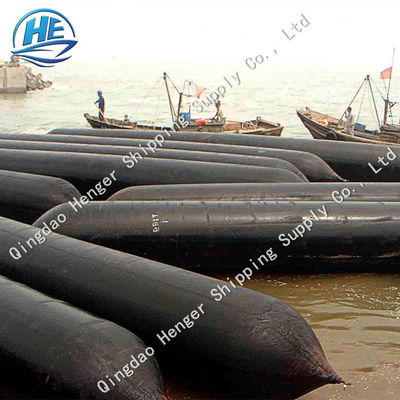

D15*L20m Marine Rubber Airbag Boats Ships Rubber Airbag

D15*L20m Marine Rubber Airbag Boats Ships Rubber Airbag
D15*L20m Marine Rubber Airbag Boats Ships Rubber Airbag
video play

Large Image :  D15*L20m Marine Rubber Airbag Boats Ships Rubber Airbag

Product Details:
Place of Origin: China
Brand Name: Henger
Model Number: 016
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: paller
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Certification: CCS LRS GL SGS BV Delivery Time: 7-10days
Product Nam: Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag Size: D15*L20m Ship Launching Airbag
Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers Maximum Load: 250T/ M
Warranty Period: 12 Months Application: Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag
Packing: Nude Packing / According To Shipping Requirements Working Pressure: 0.08Mpa
High Light:

D15*L20m Marine Rubber Airbag

,

10 layers Marine Rubber Airbag

,

D15*L20m Ships Rubber Airbag

boats ships rubber airbag/rubber airbag for docking/ship salvage airbags/airbag for launching the ship

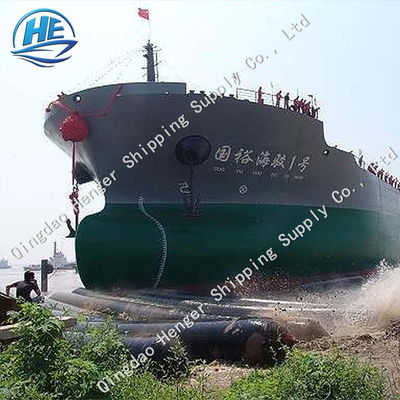

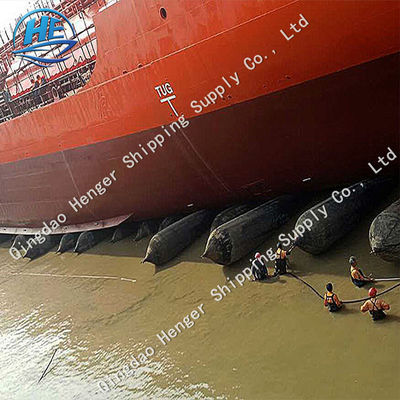

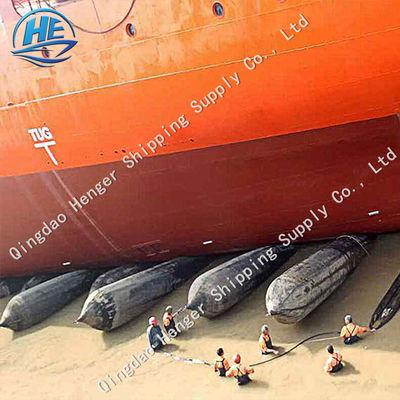

So far, many shipyards have also been using Inflatable Heavy LIfting Airbags to lift heavy objects into the water. These heavy objects are still widely used in daily production and real life.



Marine Rubber Airbag Introduction



So far, many shipyards have also been using Inflatable Heavy LIfting Airbags to lift heavy objects into the water. These heavy objects are still widely used in daily production and real life.

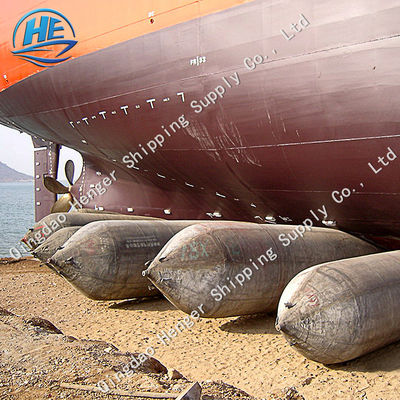

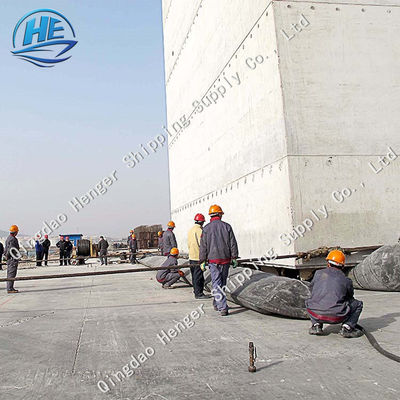

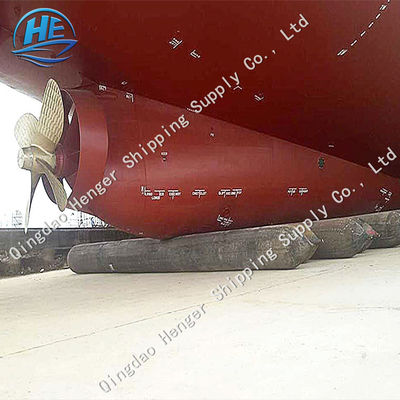

There are many innovative products with independent intellectual property rights in China. However, in the field of ship launching, marine airbags have a wide range of applications, such as ship launching and upgrading, caisson lifting and moving, heavy lifting, and underwater engineering buoyancy auxiliary equipment. Marine rubber airbags can effectively shorten the construction period and save a lot of money.



Floating salvage marine airbag Size

Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13



large size ship airbag(001)



Airbag performance



1. Air tightness test

The airbag will be inflated without any load to reach a certain internal test pressure. One hour later, the internal pressure was measured again. Compared with these two data, the pressure loss should be less than 5%.

2. Performance test

When the Inflatable Heavy Lifting Airbag is stationary, inflate the airbag airbag according to customer requirements.

We will carry out strict visual inspection and pore test before shipment. If it is not qualified, it will not be shipped.

3. Blasting test

Since the airbag is a pressure vessel, for safety reasons, before filling the airbag, it must be flushed with water until the airbag ruptures. The water pressure during the airbag sandblasting process should be greater than or equal to the value listed in the standard performance table.



launching lifting salvage marine airbag(001)



Storage of the ship launching airbag



1. When the airbag is not in use, if it needs to be stored for a long time, it should be kept clean and dry. Talc powder should be applied to the surface of the airbag. Place the airbag in a dry and ventilated room and away from the light source. Please place the transportation airbag in a safe place to avoid stretching, compression and deformation.

2. The air bag cannot be close to the heat source.

3. Do not expose the air bag to acids, alkalis, grease and organic solvents.

4. When the airbag boat is not in use, it should be kept flat, not stacked and without heavy objects.



Points to note when using balloons on board:



When using Inflatable Heavy LIfting Airbags, control the pressure and prohibit the use of airbags that exceed the working pressure.

During transportation, no sharp or hard objects should touch the airbag to prevent the airbag skin from being pierced. Try to avoid deformation of the airbag length. After inflating the air into the water, avoid inflating the air bag.

For example, when the airbag lifts most of the hull, move most of the dock and fill the rolling airbag. If there are still 1-2 piers in compression, then the internal pressure between the airbags should be adjusted so that the ship can be unloaded from the side of the ship. Another example is collisions with other objects due to various reasons in the process of moving the ship. In severe cases, the impacted airbag may be damaged.

If the airbag is not used for a long time, the inflation test should be performed again. The internal air pressure should be the same as the factory test value. During the test, the tester should keep a distance of 3 meters from the airbag. If the airbag is damaged after extensive maintenance, the operating pressure should be reduced.

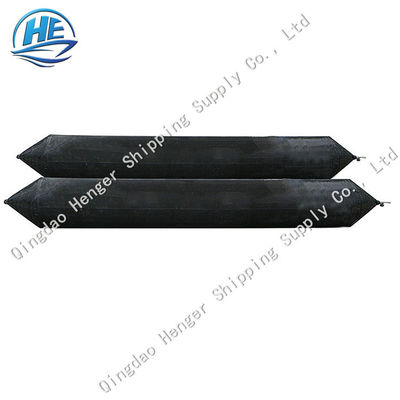

small airbag rubber airbag(001)
