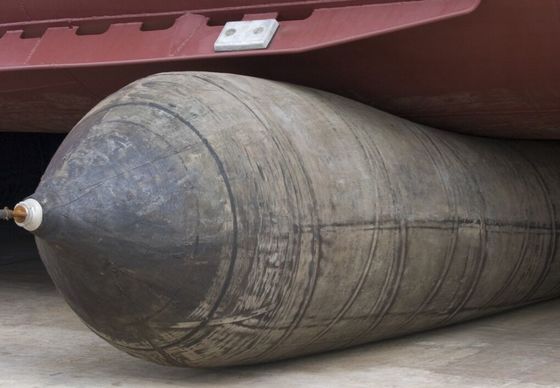

5 6 Layers Ship Launching Airbags Rubber Marine Airbag

5 6 Layers Ship Launching Airbags Rubber Marine Airbag

MOQ: 1pcs
Standard Packaging: paller
Delivery Period: 5day
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs week
Detail Information
Place of Origin
China
Brand Name
Henger
Certification
Iso 9001、BV、ccs
Model Number
016
Product Nam:
Marine Rubber Airbag / Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag
Size:
D15*L20m Ship Launching Airbag
Layer:
5/ 6/ 7 / 8 / 9 / 10 Layers
Delivery Time:
7-10days
Maximum Load:
250T/ M
Certification:
CCS LRS GL SGS BV
Warranty Period:
12 Months
Application:
Ship Launching Airbag / Salvage Airbag / Heavy Lifting Airbag
Packing:
Nude Packing / According To Shipping Requirements
Working Pressure:
0.08Mpa
Highlight:

6 Layers Ship Launching Airbags

,

5 Layers Ship Launching Airbags

,

5 Layers Rubber Marine Airbag

Product Description

Ship Launching Rubber Airbags

Ship Launching Rubber Airbag have been widely used worldwide. There are many technologies for producing marine airbags. Launching airbags are innovative products with independent intellectual property rights in China.



Marine Rubber Airbags



Ship Launching Rubber Airbag have been widely used worldwide. There are many technologies for producing marine airbags. Launching airbags are innovative products with independent intellectual property rights in China. They are mainly used for ship landing and underwater buoyancy. The product uses small space, simple technology, and saves unnecessary costs. Through years of development and practice, marine rubber airbags have been very advanced in the field of ship launching.



Inflatable Airbag(001)



Product Advantage



1. New end explosion-proof design

Air leakage at the junction area of metal parts and rubber parts increases as the pressure of the airbag increases. After several times of use under high working pressure, the Ship Launching Rubber Airbags will rupture and the metal parts will injure workers.

Henger has improved the bonding strength and air tightness between the main part of the rubber and the metal part at the end, and invented a new explosion-proof design for the end of the airbag. The Henger airbag works well under higher working pressure. There are no potential safety hazards.

2. High-strength galvanized anti-drop structure

Cast metal parts with galvanized coating. Enhance the bonding force between the metal parts and the rubber body after vulcanization. The anti-release structure of the metal parts makes the connection closer.



Marine Launching Airbag(001)



Some normal sizes of our Marine Rubber Airbag, customized sizes are also available



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10 0.07~0.13





Marine Launching Airbag test



1. Blasting test

Through the burst test, the minimum burst pressure value of the airbag can be tested. For the sake of safety, because the Ship Launching Rubber Airbag is a pressure vessel, it must be inflated while the airbag is inflated until the airbag bursts. The water pressure during the airbag sandblasting process should be greater than or equal to the value listed in the standard performance table.



2. Compression recovery test

If the recoverability of marine rubber airbags is to be verified, the airbags should be compressed and released quickly and repeatedly in a short period of time. Due to the limitation of the length of the airbag and the limitation of the compression recovery equipment, the compression recovery test can be achieved by reducing the same number of layers. Inflate the airbag so that the internal pressure reaches the pressure of the airbag performance data. The airbag is compressed vertically until the compression deformation reaches 75%. Keep this state for 1 minute. Then the pressure is released and the balloon diameter should return to more than 97% of its original diameter within 5 minutes.



submarine roller airbag(001)



FAQ



Question 1: What are the materials used in your product?

Answer: Our raw materials are natural rubber and nylon thread fabric impregnated with rubber

Question 2: Are you a factory?

Answer: We are a company and factory located in Jimo, Qingdao, close to Qingdao Port and Qingdao Airport, with convenient transportation.

Question 3: Can you do OEM?

Answer: Yes, we can do it. As long as we receive your request, we can produce as required.

Question 4: What is your delivery time and payment terms?

Answer: The delivery time depends on the size of the customer and the number of orders. You can choose the payment method, wire transfer at sight, letter of credit, Western Union and so on.

Question 5: Do you provide samples?

Answer: We are honored to provide you with samples for quality inspection. Customers only need to confirm the shipping volume, and then they can send samples through FedEx, DHL, UPS, TNT, etc.

Question 6: What certificates can your company provide?

Answer: We can provide CCS, ABS, DNV, LR, BV certificates.

Question 7: What is your warranty period?

Answer: Our warranty period is 24 months. During this period, we solemnly promise free replacement and repair for any problems with the products produced by the factory; if there are problems caused by customer improper operation, we can provide non-guaranteed warranty.



Tugboat Airbag(001)



Company Information



HENGER specializes in the production of rescue airbags and inflatable rubber fenders. Other key development products include EVA foam fenders, steel mooring buoys, and marine navigation aids. We have established long-term cooperative relations with many shipyards, shipowners and trading companies in China. We also export to Malaysia, Indonesia, Philippines, Singapore, India, Vietnam and many other countries in the world.
