Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped
Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped

Large Image :  Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS BV ISO17357
Model Number: 3300mm x 6500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD 230 TO USD 7000 PER PC
Packaging Details: International General Packaging
Delivery Time: 5-8 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 PC PER WEEK
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Brand: Henger
Material: Natural Rubber Specification: Dia 0.5m-4.5m, L 0.7m-9m/Customized
Certificate: CCS / BV / LR / ISO17357/DNV/SGS Shelf Life: 24 Months
Working Pressure: 50kpa/80kpa Application: Dock,Ship,Ship To Ship
Service Life: 10 Years Production Time: 5-10 Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, Moneygram Accessories: Tyre Sheath/Swivel/Shackle/Chain
Packing: Naked/Pallet Colour: Black/Blue/As Requirements
High Light:

d Floating Foam Filled Fender

,

4.5m Floating Foam Filled Fender

,

Rubber Boat Fender D Shaped

Floating Foam Filled Fender/Yokohama Type Rubber Boat Fender/rubber d fender/d shaped rubber fender

1. Pneumatic rubber fender introduction

Rubber fender, also known as rubber fender, is installed on a wharf or ship to absorb the collision energy between the ship and the wharf or ship when berthing or mooring, and protect the ship and wharf from damage.

Generally, rubber fenders can be divided into two categories according to the structure: solid rubber fenders (non-floating type) and floating rubber fenders.
The solid rubber fender (non-floating type) is an anti-collision device for dock ships with an earlier application history and a wide range of applications. According to the force of the rubber fender, it can be divided into shear type, rotating type and compression type; according to the structure of the fender, solid rubber fenders can be divided into D type, cone, drum, sector, rectangle, and cylinder. Shaped fenders and so on.
Floating rubber fenders can float freely on the water, and can be divided into inflatable rubber fenders and filled rubber fenders according to the different internal buffering media.
Inflatable rubber fenders use compressed air as the medium and use compressed air to do work to consume collision energy.
Foam-filled fenders are also called solid polyurethane fenders. The cushioning medium inside is mainly closed-cell foam materials, such as foamed EVA, foamed polyurethane, and foamed rubber .

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 0

2. Pneumatic rubber fender introduction



What type do we have?



Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.



Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.



Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 1

Mold making is different from traditional handmade products. It is in full compliance with ISO 17357:2014, type certification certified by DNV.GL.

The standard colors are gray and black.

The diameter ranges from 300 mm to 45000 mm, and the length ranges from 500 mm to 12000 mm.

It is composed of an inner rubber layer, a reinforcing rope layer and an outer rubber layer.

Comprehensive testing of material and water pressure inhomogeneity.

Correctly evaluate the angle and durability performance.

All relevant signs are marked on the sphere, and the latest certifications of various sizes are provided.

Install a safety valve for the mudguard with a diameter of 2.5 meters-a diameter of 4.5 meters.

3. Pneumatic rubber fender introduction



♦ Definition:

The pneumatic rubber fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.

♦ Characteristic:

● External wear resistance

● Bearing pressure

● Ageing resistance

● Long service life

● Good air tightness

● Easy storage

● Non deformation

● Simple installation

♦ Functions & Applications

● Installed on the wharf and dock for berthing

● Installed on the shipboard for berthing

● Float chamber

● For moving the cargo

● Pipe seal

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 2

4. Pneumatic rubber fender Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202



Ship Tonnage(T) Recommendation Size D x L ( m) Ship Type
50 0.5 x1.0 Fishing ship
100 0.7 x 1.5~1.0 x 1.5 Fishing ship
200 1.0 x 1.5~1.2 x 2.0 Fishing ship, towing ship
300-500 1.2 x 2.0~1.5 x 2.5 Fishing ship, towing ship
1000 1.5 x 2.5~1.5 x 3.0 Towing ship, cargo ship
3000 2.0 x 3.0~2.0 x 3.5 cargo ship, ocean trawler
10000 2.0 x 3.5~2.5 x 4.0 cargo ship
For Small & Middle Size Ship



5. Pneumatic Rubber Fender Features



* Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
* Comprehensively tested for material and hydrostatic pressure irregularities
* Correctly evaluated for angular and durability performance

* Clearly marked with all relevant identification

* Complete with up- to -date certification



6. Pneumatic Rubber Fender Features

Unique Design of Henger Pneumatic Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

7. Pneumatic Rubber Fender Features

♦ Advantage:

● Safety and Reliability

● No Deterioration or Variation in Performance● Advantages at Inclined Berthing

● Most Cost Competitive System● Soft Reaction Force for Ship and Jetty Structure

● Lower Mooring Forces under Rough Weather Conditions

8. Pneumatic Rubber Fender Features

"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 1





9. Inflatable rubber fender transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 4Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 5Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 6

10. Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

11. Pneumatic Rubber Fender Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier

12. Pneumatic Rubber Fender Application

Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

13. Pneumatic Rubber Fender Application

Pneumatic Rubber Fenders are suitable for many applications including:

1. Tankers, Gas Carries and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.



14. Pneumatic Rubber Fender Types

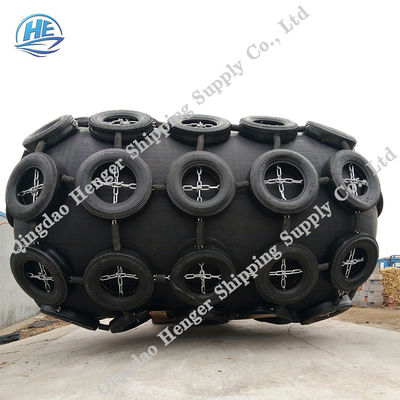

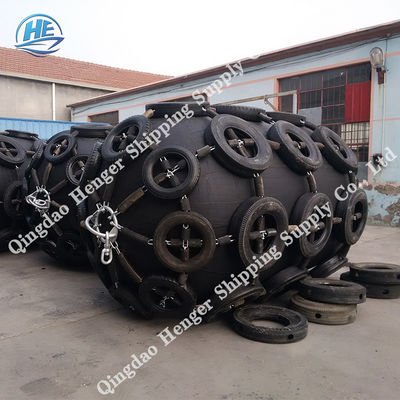

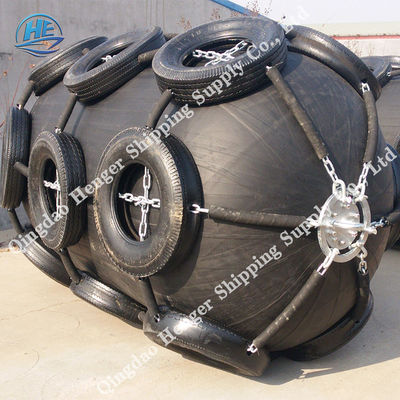

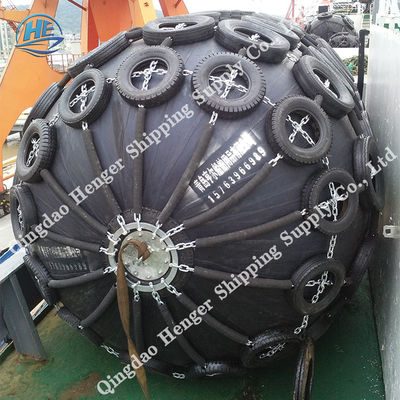

Type I: pneumatic rubber fender with Chain & tyre net protective jacket

Type II: Sling type with rubber plate, rubber tube & ropes protective jacket

Type III: Ribbed type rubber fender

Type IV: Rope net type protective jacket rubber fender

Type V: Standard type without any protective jackets

Type VI: hydro pneumatic rubber fender

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 7

15. Specially Designed and Strengthened Casting Flange



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 8Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 9

16. Pneumatic Rubber Fender storage



1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 10

17. Company Introduction



Qingdao Henger Shipping Supplies Co., Ltd Lies in Qingdao , a beautiful coastal city . Qingdao Henger Shipping Supplies Co., Ltd is a high-

tech enterprise integrated with manufacturing , research and innovation , technical services , specialized in manufacturing marine products , such

as pneumatic rubber fenders, foam filled fenders , marine rubber airbags , navigation mark , marine buoys . We are committed to ensuring

the safe docking of ships and contributing to the development of marine shipping.

Floating Foam Filled Fender Yokohama Type Rubber Boat Fender D Shaped 11

18. FAQ

Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes


Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.

The payment could paid by T/T, L/C, Western Union, Paypal, etc.
