| MOQ: | 1pcs |
| Standard Packaging: | paller |
| Delivery Period: | 5day |
| Payment Method: | L/C, D/A, D/P, T/T |
| Supply Capacity: | 50pcs week |

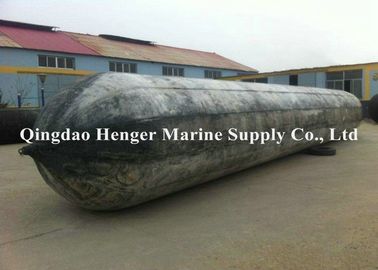

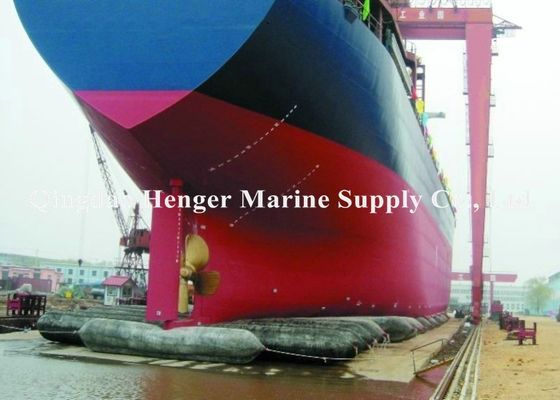

Ship Launching Airbags Rubber Salvage Marine And Marine Rubber Airbags
Resistance of marine airbags
The new layout of the end anti-blast plan
After the pressure of the airbag increases, the iron parts and rubber joints at the ends of the airbag have become more attractive. After repeated operation of the airbag, once the end is pregnant and revealing signs, the end of the airbag can easily explode and hurt people under low-pressure infiltration. In the issue of High-Pressure Heavy Marine Lifting Airbags water supply, there have been several signs of airbags with low consumption quality that the end of the airbag is flying out of the estimated customer, which is worthy of our progress. In order to meet the high internal pressure sealing requirements, we rejected the new layout of the end anti-explosion plan, strengthened the joint strength and sealing performance of the bag lift and the end iron parts, and used air pressure to advance. The operation has not produced any signs of sadness so far. , To eradicate lightly hidden dangers.
Henger specializes in manufacturing marine airbags and marine fenders.
Higher flexibility and shock absorption ability
"Henger" High-Pressure Heavy Marine Lifting Airbags are made by a unique overall winding process and are vulcanized at "low temperature and long time". The thickness of the capsule wall is uniform without any secondary seams caused by overlapping. Therefore, under the premise of the same strength, the "Henger" inflatable rubber airbag can be made thinner, softer and more elastic. When it rolls under the bottom of the ship, the contact pressure with the bottom of the ship will be smaller and uniform, and it has a higher shock absorption capacity. When the used ground has slope changes or unevenness, this soft elasticity is beneficial to eliminate structural stress and reduce the risk of ship launching.
Henger improved the manufacturing technique and raw material formula to strengthen kneading-resistance capability of the airbag and avoid worse accident .
Each layers of /ship-launching-airbags are painting with specially formulated mucilage to dissolve dust & impurities.
Inflatable Marine Rubber Airbag Technical Parameter:
| Model | D(m) | P(Mpa) | Working Height(m) | Unit Bearing Capacity(ton/m) | |||||
| 0.4D | 0.5D | 0.6D | 0.4D | 0.5D | 0.6D | ||||
| S1 |
S10 |
0.8 | 0.20 | 0.32 | 0.40 | 0.48 | 15.1 | 12.6 | 10.0 |
| 1 | 0.16 | 0.40 | 0.50 | 0.60 | 15.1 | 12.6 | 10.0 | ||
| 1.2 | 0.14 | 0.48 | 0.60 | 0.72 | 15.8 | 13.2 | 10.6 | ||
| 1.5 | 0.11 | 0.60 | 0.75 | 0.90 | 15.5 | 13.0 | 10.4 | ||
|
S11 |
0.8 | 0.19 | 0.32 | 0.40 | 0.48 | 14.3 | 11.9 | 9.5 | |
| 1 | 0.15 | 0.40 | 0.50 | 0.60 | 14.1 | 11.8 | 9.4 | ||
| 1.2 | 0.13 | 0.48 | 0.60 | 0.72 | 14.7 | 12.2 | 9.8 | ||
| 1.5 | 0.10 | 0.60 | 0.75 | 0.90 | 14.1 | 11.8 | 9.4 | ||
|
S12 |
0.8 | 0.24 | 0.32 | 0.40 | 0.48 | 18.1 | 15.1 | 12.1 | |
| 1 | 0.19 | 0.40 | 0.50 | 0.60 | 17.9 | 14.9 | 11.9 | ||
| 1.2 | 0.16 | 0.48 | 0.60 | 0.72 | 18.1 | 15.1 | 12.1 | ||
| 1.5 | 0.13 | 0.60 | 0.75 | 0.90 | 18.4 | 15.3 | 12.2 | ||
| 1.8 | 0.10 | 0.72 | 0.90 | 1.08 | 17.0 | 14.1 | 11.3 | ||
| S2 |
S20 |
1 | 0.24 | 0.40 | 0.50 | 0.60 | 22.6 | 18.8 | 15.1 |
| 1.2 | 0.20 | 0.48 | 0.60 | 0.72 | 22.6 | 18.8 | 15.1 | ||
| 1.5 | 0.16 | 0.60 | 0.75 | 0.90 | 22.6 | 18.8 | 15.1 | ||
| 1.8 | 0.13 | 0.72 | 0.90 | 1.08 | 22.0 | 18.4 | 14.7 | ||
| 2 | 0.12 | 0.80 | 1.00 | 1.20 | 22.6 | 18.8 | 15.1 | ||
|
S21 |
1 | 0.27 | 0.40 | 0.50 | 0.60 | 25.4 | 21.2 | 17.0 | |
| 1.2 | 0.23 | 0.48 | 0.60 | 0.72 | 26.0 | 21.7 | 17.3 | ||
| 1.5 | 0.18 | 0.60 | 0.75 | 0.90 | 25.4 | 21.2 | 17.0 | ||
| 1.8 | 0.15 | 0.72 | 0.90 | 1.08 | 25.4 | 21.2 | 17.0 | ||
| 2 | 0.14 | 0.80 | 1.00 | 1.20 | 26.4 | 22.0 | 17.6 | ||
|
S22 |
1 | 0.31 | 0.40 | 0.50 | 0.60 | 29.2 | 24.3 | 19.5 | |
| 1.2 | 0.26 | 0.48 | 0.60 | 0.72 | 29.4 | 24..5 | 19.6 | ||
| 1.5 | 0.20 | 0.60 | 0.75 | 0.90 | 28.3 | 23.6 | 18.8 | ||
| 1.8 | 0.17 | 0.72 | 0.90 | 1.08 | 28.8 | 24.0 | 19.2 | ||
| 2 | 0.15 | 0.80 | 1.00 | 1.20 | 28.3 | 23.6 | 18.8 | ||
| 2.5 | 0.12 | 1.00 | 1.25 | 1.50 | 28.3 | 23.6 | 18.8 | ||
| S3 |
S30 |
1 | 0.35 | 0.40 | 0.50 | 0.60 | 33.0 | 27.5 | 22.0 |
| 1.2 | 0.29 | 0.48 | 0.60 | 0.72 | 32.8 | 27.3 | 21.9 | ||
| 1.5 | 0.23 | 0.60 | 0.75 | 0.90 | 32.5 | 27.1 | 21.7 | ||
| 1.8 | 0.19 | 0.72 | 0.90 | 1.08 | 32.2 | 26.8 | 21.5 | ||
| 2 | 0.17 | 0.80 | 1.00 | 1.20 | 32.0 | 26.7 | 21.4 | ||
| 2.5 | 0.14 | 1.00 | 1.25 | 1.50 | 33.0 | 27.5 | 22.0 |
||
Airbag advantage
Production advantage
The company has accumulated 25 years of professional rubber production experience. It is the earliest established, fastest growing, largest production scale, strongest technology and capital, and most stable quality rubber fender supplier in this region.
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
| Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
| High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
Company introduction
Qingdao Henger Shipping Supplies Co., Ltd
Henger is a comprehensive marine supplies company that integrates lifting and moving airbags for ship's upper and lower discharges, inflatable rubber fenders (by ball), polyurethane fenders, product development, production and sales. The company has a group of experienced and skilled research, development, production and sales teams. The company's products use high-quality materials and special explosion-proof technology, with smooth appearance, wear resistance, aging resistance, good air tightness, high strength, long service life, and excellent quality.
