STS Floating Pneumatic Rubber Fender Ship To Ship Transfer Operation

Floating pneumatic rubber fender

1. Pneumatic rubber fender introduction



Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.

Pneumatic 50 fender size and performance requirements
Nominal size diameter x length mm	Initial internal pressure kPa	Guaranteed energy absorption (GEA)	Reaction force at GEA deflection(R)	Hull pressure (Internal pressure) at GEA deflection (P)
		Minimum value at deflection 60±5% kJ	Tolerance±10 % kN	Reference value kPa
500 x 1000	50	6	64	132
600 x 1000	50	8	74	126
700 x 1500	50	17	137	135
1000 x 1500	50	32	182	122
1000 x 2000	50	45	257	132
1200 x2000	50	63	297	126
1350 x 2500	50	102	427	130
1500 x 3000	50	153	579	132
1700 x 3000	50	191	639	128
2000 x 3500	50	308	875	128
2500 x 4000	50	663	1381	137
2500 x5500	50	943	2019	148
3300 x 4500	50	1175	1884	130
3300 x 6500	50	1814	3015	146
3300 x 10600	50	3067	5257	158
4500 x 9000	50	4752	5747	146
4500 x 12000	50	6473	7984	154

Pneumatic 80 fender size and performance requirements
Nominal size diameter x length mm	Initial internal pressure kPa	Guaranteed energy absorption (GEA)	Reaction force at GEA deflection (R)	Hull pressure (Internal pressure) at GEA deflection (P)
		Minimum value at deflection 60±5% kJ	Tolerance±10% kN	Reference value kPa
500 x 1000	80	8	85	174
600 x 1000	80	11	98	166
700 x 1500	80	24	180	177
1000 x 1500	80	45	239	160
1000 x2000	80	63	338	174
1200 x 2000	80	88	390	166
1350 x 2500	80	142	561	170
1500 x 3000	80	214	761	174
1700 x 3000	80	267	840	168
2000 x 3500	80	430	1150	168
2500 x 4000	80	925	1815	180
2500 x 5500	80	1317	2653	195
3300 x 4500	80	1640	2476	171
3300 x 6500	80	2532	3961	191
3300 x 10600	80	4281	6907	208
4500 x 9000	80	6633	7551	192
4500 x 12000	80	9037	10490	202

1 Safety and Reliability

Yokohama Pneumatic Rubber Fenders are constructed of several layers of strong
tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the
design of this fender is based on accepted theory and has been proven by extensive
experimentation. Operational experience over a long period of time attests to its high
safety and reliability, and hydraulic pressure tests have proven the strength to be suitable.



2 No Deterioration or Variation in Performance

Yokohama Pneumatic Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
In the case of solid rubber fenders or foam-filled fenders, based on data were taken
from comparison tests of Yokohama Fenders, there are variations in performance. Such
performance variations are associated to changes of rubber or foam hardness occurring
as a result of cyclic compression and temperature change.



The good performance of the Yokohama Pneumatic Rubber Fenders remains unchanged
even at temperatures under -50 degrees Centigrade (-58 degrees Fahrenheit).



3 Advantages at Inclined Berthing

Ships usually make initial contact with the dock or another ship on STS operations at an
oblique angle.

In the case of Yokohama Pneumatic Rubber Fenders, energy absorption does not
decrease at inclined compression up to 15 degrees.





4 Most Cost Competitive System

The utilization of the compressive elasticity of air, unlike other fenders which need protector panels, provides completely uniform surface pressure on contact. The surface pressure is equal to the internal air pressure



5 Stronger against Shearing Force

After contacting a dock, a ship is usually shifted to the correct mooring position. The
shifting exerts shearing and compression forces on the fenders. This combined force is
very severe in the case of solid rubber fenders because they are not reinforced against
such force. In contrast, Yokohama Pneumatic Rubber Fenders are adequately
reinforced using strong tire-cord to cope against such forces as well as internal
pressure.

6 Simple and Low Cost Installation

The weight of Yokohama Pneumatic Rubber Fenders is supported by the water on which it floats.
Therefore, the fender can be moored simply by means of a guy rope or chain, requiring minimal extra
cost. It can be removed easily to a suitable jetty or quay when not in use, or transferred to another
mooring point whenever required.



7 Low Maintenance Cost

Maintenance cost is very low. Although the internal pressure will vary with seasonal changes, the air leakage is so minimal that it is sufficient to check the air pressure only once a year. The chain net needs to be replaced only once in 3 or 4 years, depending on ambient conditions.



8 Shipping Cost Minimization

In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.

1. Pneumatic Rubber Fender Transportation

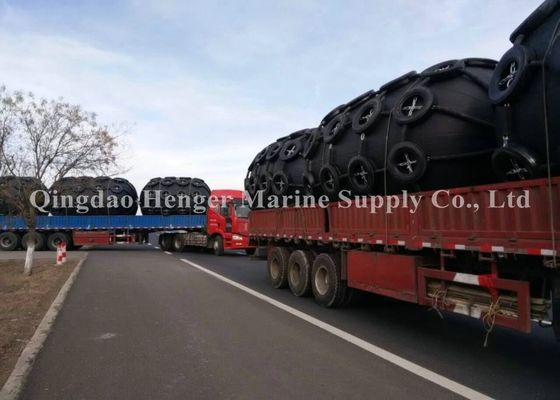

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

1. Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

1. Pneumatic Rubber Fender Types

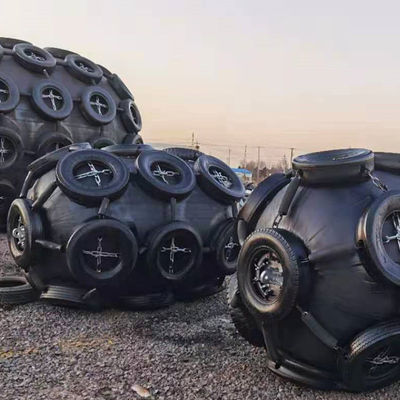

Type I: pneumatic rubber fender with Chain & tyre net protective jacket

Type II: Sling type with rubber plate, rubber tube & ropes protective jacket

Type III: Ribbed type rubber fender

Type IV: Rope net type protective jacket rubber fender

Type V: Standard type without any protective jackets

Type VI: hydro pneumatic rubber fender

2. Specially Designed and Strengthened Casting Flange



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

3. Pneumatic Rubber Fender storage



1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

4. Pneumatic Rubber Fender Inflation process



1. Install the inflatable rod

2. Remove the valve core with the wrench

3. Link up quick connector inflation, inflation pressure 0.05-0.08mpa, recommended pressure 0.05mpa.

4. pressure by gauge

5. Screw the valve core with the wrench
