0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags

0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags
0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags

Large Image :  0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: Iso 9001、BV、ccs
Model Number: 016
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: paller
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Detailed Product Description
Product Nam: Ship Airbag Warranty: 24 Months
Certification: CCS ABS LR BV TUV ISO,SGS,ABS,BV,CCS Layers: Customizable
Material: Natural Rubber Specification: Customizable
High Light:

Inflatable Marine Salvage Airbags

,

Rescue Marine Salvage Airbags

,

0.16Mpa Marine Salvage Lift Bags

Inflatable marine rescue airbag

What can marine rescue airbags do for you?

The structure of the marine rescue airbag is similar to that of the ship launching airbag, but the use of strong and lightweight structure, lifting seat belts and buckles, provides some of the best designs for rescue and floating applications. Rubber straps are often used to secure airbags together, and buckles make binding easier. The safety valve is installed at the end of the airbag, which is an ideal choice for automatically releasing the internal pressure when the marine rescue airbag is used in the deep sea.

Due to the strongest pneumatic mechanism, sea salvage airbags are usually used as temporary transportation equipment, or used in other occasions, such as sunken ship salvage, floating bridges, wharf construction, etc.

Feature:

Not easily affected by wind and waves.
There are few binding requirements.
Easily meet buoyancy requirements ranging from 100 tons to 2000 tons.
When the airbag is deflated, it is easy to transport and store.
Due to the ultra-high tensile strength of its frame material-a heavy-duty synthetic tire cord layer with a breaking strength exceeding 15,000 N / 5cm.
Excellent abrasion resistance and scratch resistance.
Low maintenance.
High flexibility and cost-effectiveness.




Heavy goods handling:

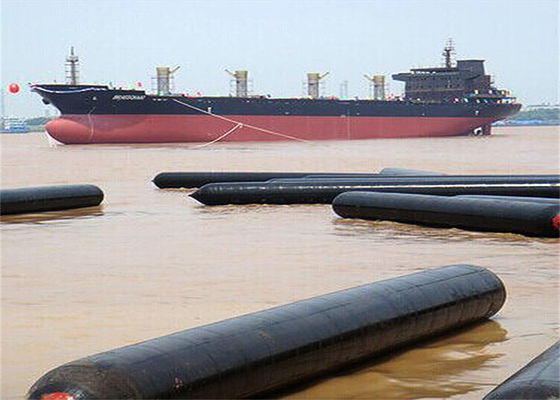

Marine airbags are widely used in caisson lifting, transportation, launching and other fields in port construction, as well as component displacement and launching.




Floating and salvage:


Marine airbags can generate greater buoyancy and strong load-bearing capacity, and are now widely used in rescue of stranded ships and other buoyancy and salvage fields.







Airbag packaging and transportation:


According to the provisions of the CB/T 3795-1996 of the People's Republic of China Ship Industry Standard, the packaging, transportation and storage of marine airbags should comply with the following standards:


1. Packaging
Folded and packed with plastic woven bags.


2. Transportation
Airbags should be lifted, lifted, and rolled in an inflated state when transported on short distances. It is strictly forbidden to drag on the ground.


The airbag should be folded and fixed to the tray during long-distance transportation, with a cushion underneath, and wrapped with a wrapping film on the outside.



Inflatable Marine Rubber Airbag Technical Parameter



Model D(m) P(Mpa) Working Height(m) Unit Bearing Capacity(ton/m)
0.4D 0.5D 0.6D 0.4D 0.5D 0.6D
S1



S10

0.8 0.20 0.32 0.40 0.48 15.1 12.6 10.0
1 0.16 0.40 0.50 0.60 15.1 12.6 10.0
1.2 0.14 0.48 0.60 0.72 15.8 13.2 10.6
1.5 0.11 0.60 0.75 0.90 15.5 13.0 10.4



S11

0.8 0.19 0.32 0.40 0.48 14.3 11.9 9.5
1 0.15 0.40 0.50 0.60 14.1 11.8 9.4
1.2 0.13 0.48 0.60 0.72 14.7 12.2 9.8
1.5 0.10 0.60 0.75 0.90 14.1 11.8 9.4





S12

0.8 0.24 0.32 0.40 0.48 18.1 15.1 12.1
1 0.19 0.40 0.50 0.60 17.9 14.9 11.9
1.2 0.16 0.48 0.60 0.72 18.1 15.1 12.1
1.5 0.13 0.60 0.75 0.90 18.4 15.3 12.2
1.8 0.10 0.72 0.90 1.08 17.0 14.1 11.3
S2





S20

1 0.24 0.40 0.50 0.60 22.6 18.8 15.1
1.2 0.20 0.48 0.60 0.72 22.6 18.8 15.1
1.5 0.16 0.60 0.75 0.90 22.6 18.8 15.1
1.8 0.13 0.72 0.90 1.08 22.0 18.4 14.7
2 0.12 0.80 1.00 1.20 22.6 18.8 15.1





S21

1 0.27 0.40 0.50 0.60 25.4 21.2 17.0
1.2 0.23 0.48 0.60 0.72 26.0 21.7 17.3
1.5 0.18 0.60 0.75 0.90 25.4 21.2 17.0
1.8 0.15 0.72 0.90 1.08 25.4 21.2 17.0
2 0.14 0.80 1.00 1.20 26.4 22.0 17.6





S22

1 0.31 0.40 0.50 0.60 29.2 24.3 19.5
1.2 0.26 0.48 0.60 0.72 29.4 24..5 19.6
1.5 0.20 0.60 0.75 0.90 28.3 23.6 18.8
1.8 0.17 0.72 0.90 1.08 28.8 24.0 19.2
2 0.15 0.80 1.00 1.20 28.3 23.6 18.8
2.5 0.12 1.00 1.25 1.50 28.3 23.6 18.8
S3





S30

1 0.35 0.40 0.50 0.60 33.0 27.5 22.0
1.2 0.29 0.48 0.60 0.72 32.8 27.3 21.9
1.5 0.23 0.60 0.75 0.90 32.5 27.1 21.7
1.8 0.19 0.72 0.90 1.08 32.2 26.8 21.5
2 0.17 0.80 1.00 1.20 32.0 26.7 21.4
2.5 0.14 1.00 1.25 1.50 33.0 27.5 22.0






Technical requirements for marine airbags:


According to CB/T 3795-1996, marine airbags should meet the technical requirements


1. Size deviation
The deviation of diameter and effective length is -2%---+2%,
The deviation of the total length is -4%---+4%


2. Elastic deformation
When using 1.2 times the working pressure as the experimental pressure, the diameter deformation is not more than 5%


3. Safety factor
Safety factor is not less than 4.5



0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 0


4. Airtightness
Inflate for 1h, the pressure drop is not more than 5%


5. Appearance requirements
Linear smooth, no cracks and bubbles, heavy skin, mixed impurities and obvious dirt and other visual defects.


6. Safety inflation device
The safety valve should be installed on the capsule, and the trip pressure of the safety valve should be 1.25 times of the working pressure.



0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 1



The development history of marine airbag:

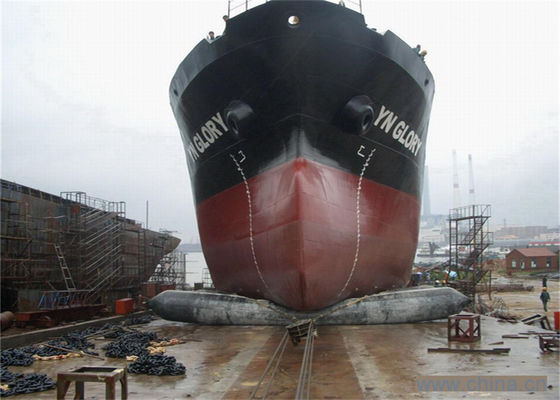

According to related records, humans have been using the rolling wood principle to carry heavy objects more than 6,000 years ago. People still use the rolling wood principle to carry heavy objects in daily production and life. Marine airbag is a flexible heavy vehicle designed according to the principle of rolling wood.


In the 1980s, due to the manufacturing process and materials of airbags, the weight of airbag launching ships was between 100 tons and 500 tons.

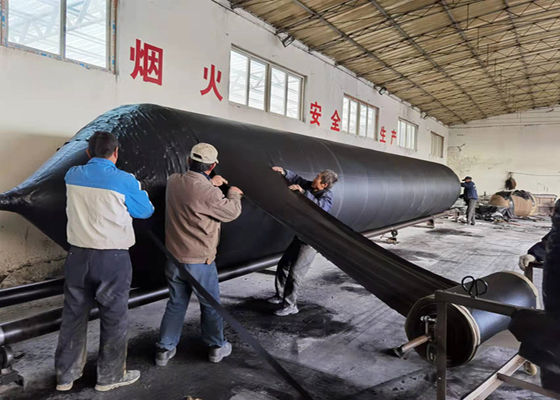

In the early 1990s, people made innovations in the process and materials of airbag manufacturing: nylon cords replaced canvas as a new skeleton material, and a new type of integral winding manufacturing process was developed.


Some marine airbag manufacturers still use the old production technology of lap type. It is generally believed that the integrally produced marine airbag is more reasonable in structure and has a greater safety factor and bearing capacity.


Water-filled blasting test is an important method to check the performance of marine airbags.





0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 2



Qingdao Henger Shipping Supplies Co., Ltd



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 3



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.



0.16Mpa Rescue Inflatable Rubber Marine Salvage Airbags 4





Service and transportation:


The product warranty period of Henger is 18 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.





Thank you for reading. If you have any needs and interests, you can contact me.

Thanks for reading, if you have any interest or questions, please feel free to contact me.
