MOQ: | 100M |
Delivery Period: | 5day |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 1000m week |

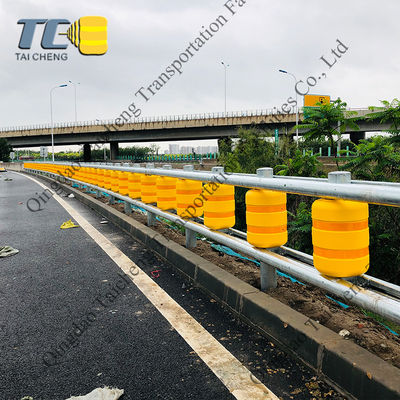

Absorb Impact Force And Turn It Into Kinetic Energy Rotating Guardrail With Safety Roller Barrier System
Nominal size and tolerance of rotating barrel:
Type | Nominal size and tolerance ( mm ) |
D
|
345+5 -5
|
370+5 -5
|
h
|
490+10 -10 |
510+10 -10
|
d
|
151+2 -2 |
h1
|
110+2 -2 |
h2
|
50+1 -1 |
h3
|
80+2 -2 |

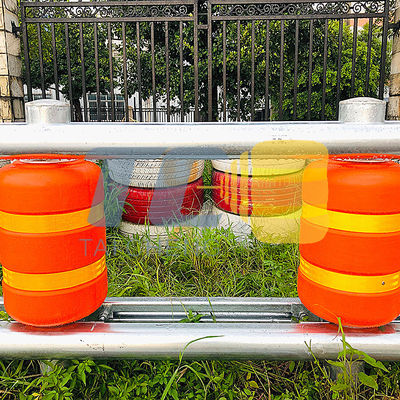

Parts and installation of rotating guardrail:
1) Column: It is driven into the roadbed and is the main force-bearing component.
2) Crossbeam: used for the connection between the columns and fix the rotating barrel.
3) Rotating barrel: fixed between the upper and lower beams, it can rotate around the column, the main material is EVA (ethylene-ester acid copolymer) and polyurethane.
4) Sleeve: Installed on the inner wall of the rotating barrel, rotating contact part.
5) Swivel ring: installed between the rotating barrel and the beam to balance and promote rotation.
6) Connection frame: used for connection between beams.
7) U-shaped frame: connect the beam and the column to fix the beam.
8) Cushion buckle: lined with beam and connected to U-shaped frame.
9) Hoop: connect the beam and column, used to fix the beam, suitable for specific models.
10) Reflective strip. It is a reflective film that is pasted on the rotating barrel for inducing.
Service and transportation:
Taicheng's product warranty period is 24 months, and the average supplier cannot achieve such a long time. This is also the trust that we and our customers have in our factory products.
After-sales service We are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support.
Transportation We can carry out transportation according to customer requirements. We always put customer requirements first.
![]() |
