High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter

High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter
High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter

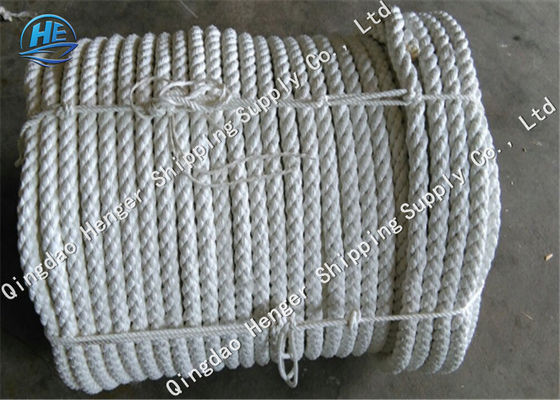

Large Image :  High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter

Product Details:
Place of Origin: QingDao
Brand Name: HER
Certification: CCS.ABS.LRS.BV.GL
Model Number: 60MM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Meter
Packaging Details: According To Customer Ordered
Delivery Time: 5-8 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 - 2000 Meters Per Week
Detailed Product Description
Product Name: High Quality Mooring Rope Item: Kuralon Rope,Polypropylene, Nylon
Material: Nylon,PP,polyester,polypropylene Color: White,yellow,blue,red,Black
Packing: Reel, Woven Bag, Bundle Diameter: 6 - 160mm,8mm,12mm,60mm, 4mm-56mm
Application: Mooring, Marine Outfitting,fishing, Etc Structure: 6 Strand Crosslay,3 Strand,3/8 Strand
High Light:

braided mooring rope

,

marine dock lines


High Quality 100% UHMWPE Marine Mooring&Towing Rope For Ship




Mooring Rope Introduction



Multiple strands of rope used to tie ships. Requires tensile, impact, abrasion resistance, flexibility and softness. In the past, steel cables, linen or cotton ropes were commonly used; after the emergence of synthetic fibers, most of them were made of nylon, polypropylene, vinylon, polyester, etc. In addition to light weight, high strength, good impact resistance and abrasion resistance, synthetic fiber ropes have the advantages of corrosion resistance, mildew resistance, and insect resistance. For example, the strength and abrasion fastness of nylon ropes are several times higher than hemp and cotton ropes, and the specific gravity of polypropylene ropes is less than water, which can float on the water and is easy and safe to operate. Chemical fiber cable is divided into 3 strands, multi-strand twisted cable and 8-strand, multi-strand twisted cable according to the processing structure. The 3-strand cable is generally 4-50 mm in diameter, and the 8-strand cable is generally 35-120 mm in diameter. In addition to chemical fiber ropes, they are also widely used in transportation, industry, mining, sports and fishery. According to the needs of special applications, metal materials can also be incorporated into the cable core.



High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 0
Polymer Polyethylene Rope
DIA CIR WT B/S
MM INCH INCH KGS/100M LBS/100FT TON KN
6 1/4 3/4 2.3 1.5 4.3 42
8 5/16 1 3.7 2.5 6.7 66
10 13/32 1-1/4 5.6 3.7 9.7 95
12 15/32 1-1/2 7.9 5.3 13.3 131
14 9/16 1-3/4 10.6 7.1 17.8 174
16 5/8 2 13.7 9.2 22.9 225
18 23/32 2-1/4 17.3 11.6 28.8 282
20 13/16 2-1/2 21.2 14.3 35.3 346
22 7/8 2-3/4 25.6 17.2 42.5 416
24 15/16 3 30.4 20.4 50.3 493
26 1-1/32 3-1/4 35.7 24.0 58.8 576
28 1-1/8 3-1/2 41.3 27.8 67.8 665
30 1-3/16 3-3/4 47.4 31.8 77.5 760
32 1-1/4 4 53.9 36.2 87.8 860
34 1-11/32 4-1/4 60.8 40.8 98.6 966
36 1-7/16 4-1/2 68.1 45.8 110 1078
38 1-1/2 4-3/4 75.9 51.0 122 1196
40 1-19/32 5 84.0 56.5 135 1318
42 1-21/32 5-1/4 92.6 62.2 148 1447
44 1-3/4 5-1/2 102 68.3 161 1581
46 1-13/16 5-5/8 111 74.6 176 1720
48 1-7/8 6 121 81.3 190 1864
50 2 6-1/4 131 88.0 205 2013
52 2-1/16 6-1/2 142 95.3 221 2167
56 2-1/4 7 164 111 254 2490
60 2-3/8 7-1/2 189 127 289 2831
64 2-1/2 8 215 144 326 3191
68 2-11/16 8-1/2 242 163 364 3567
72 2-7/8 9 271 182 404 3961
80 3-5/32 10 335 225 488 4787
88 3-7/16 11 405 272 578 5669
96 3-13/16 12 481 324 673 6599
Other sizes available upon request

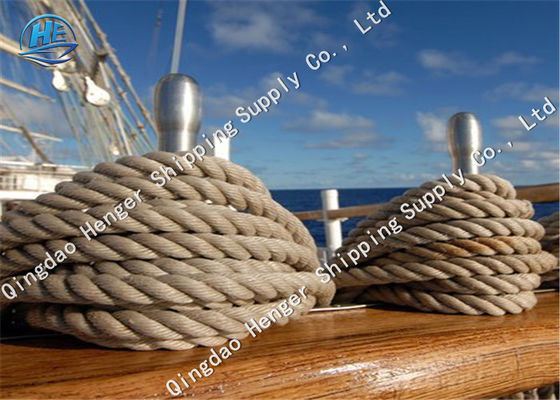

Mooring Rope Application

High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 1High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 2



Company Introduction


Our company mainly produces polypropylene (polypropylene), nylon (polyamide), polyester (polyester), polyester-acrylic hybrid, nylon, ultra-high molecular weight polyethylene series cable, Product diameter: 4mm~120mm, optional .The structure has 3 strands, 4 strands, 6 strands, 8 strands, 12 strands, and a double-woven 24-strand, 32-strand, 36-strand rope of various structural types.

The company's products have the characteristics of high strength, low elongation, anti-wear and anti-corrosion, and the performance indicators are in line with relevant national standards and international standards. Nowadays, the products have been widely used in deep sea mooring, marine engineering, ocean transportation, national defense military, port towing, water conservancy engineering and special equipment.


High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 3High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 4



High Strength Marine Mooring Rope Powerful Marine Towing 12 Strand 6 - 160mm Diameter 5
