MOQ: | 1pc |
Price: | USD 50-3000 PER PIECE |
Standard Packaging: | nude/pallet |
Delivery Period: | 5 working days |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 10pcs per week |

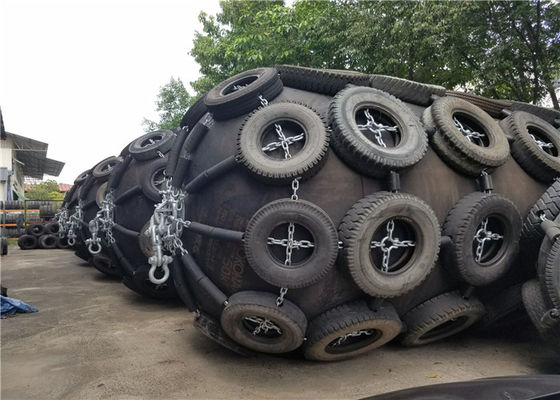

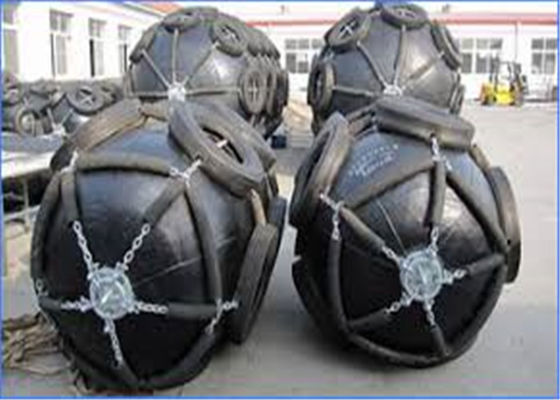

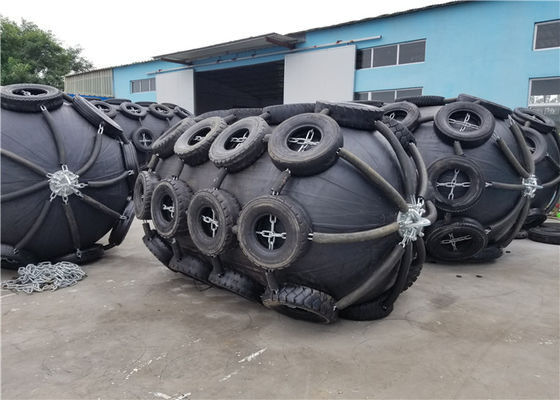

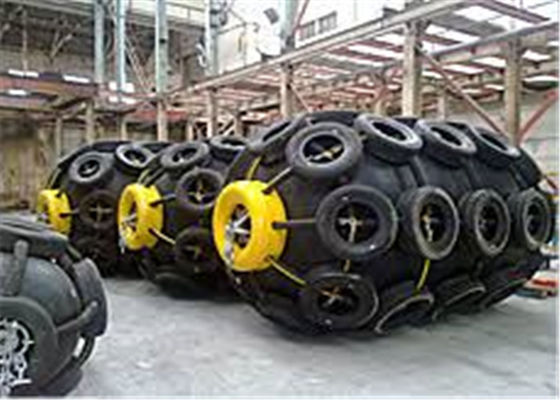

50kpa :24month warranty Pneumatic Rubber Fender
1. Henger Yokohama Rubber Fender Advantages
1.1 Safety and Reliability
Henger Pneumatic Rubber Fenders are constructed of natural rubber, several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
1.2 Patented Active Protecting Safety Valve Design
All Henger Pneumatic Rubber Fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
1.3 No Deterioration or Variation in Performance
Henger Pneumatic Rubber Fenders utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent.
1.4 Advantages at Inclined Berthing
Henger Pneumatic Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.
1.5 Most Cost Competitive System
The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Yokohama Pneumatic Rubber Fenders ideal. The surface pressure of the Yokohama Pneumatic Rubber Fenders is equal to the internal air pressure.
Due to low and uniform surface pressure properties, the Yokohama Pneumatic Rubber Fenders are popular at LNG-ship terminals. Soft Reaction Force for Ship and Jetty Structure the reaction force of Yokohama Pneumatic Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.
1.6 Lower Mooring Forces under Rough Weather Conditions
The reaction force and deflection of Yokohama Pneumatic Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Yokohama Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.
2.Unique Design of Henger Pneumatic Rubber Fender
Pneumatic 50 Kpa fender size and performance requirements
Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) |
Weight with Protective Jacket (kg) |
||
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNM) |
||
500 | 1000 | 64 | 6 | 23 | 35 |
600 | 1000 | 74 | 8 | 28 | 40 |
700 | 1000 | 137 | 17 | 58 | 52 |
1000 | 1500 | 182 | 32 | 82 | 100 |
1000 | 2000 | 257 | 45 | 148 | 152 |
1200 | 2000 | 297 | 63 | 167 | 200 |
1350 | 2500 | 427 | 102 | 220 | 298 |
1500 | 2500 | 499 | 134 | 270 | 300 |
1500 | 3000 | 579 | 153 | 318 | 450 |
1700 | 3000 | 639 | 191 | 380 | 482 |
2000 | 3500 | 875 | 308 | 580 | 890 |
2000 | 4000 | 1000 | 352 | 680 | 1000 |
2500 | 4000 | 1381 | 663 | 1064 | 1180 |
2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
3. Packaging, Transportation and Storage
3.1 Packaging
If there are no special requirements, fender products are usually packed in wooden cases.
3.2 Transportation

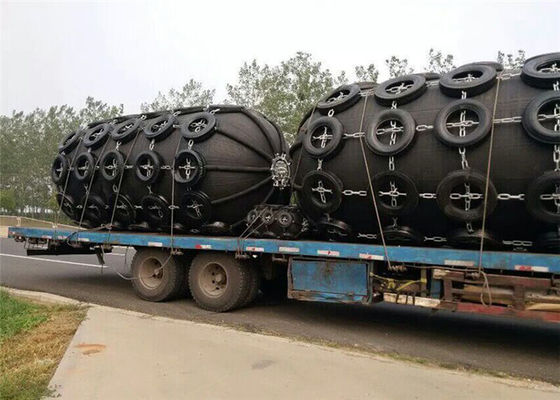

It is usually transported by ship. Smaller products can also be shipped by courier.
3.3 Storage
The fenders should be washed and dried, filled with an appropriate amount of talc and compressed air, and placed in a dry, cool and ventilated place. Store away from heat sources. The ball should not be in contact with acid, alkali, grease and organic solvents.
4. Company Profile
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as pneumatic rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
![]() |
