| MOQ: | 1 Meter |
| Price: | 、 |
| Standard Packaging: | According To Customer Ordered |
| Delivery Period: | 5-8 Days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 - 2000 Meters Per Week |

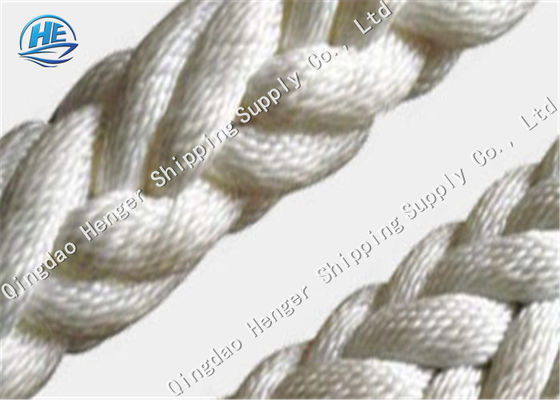

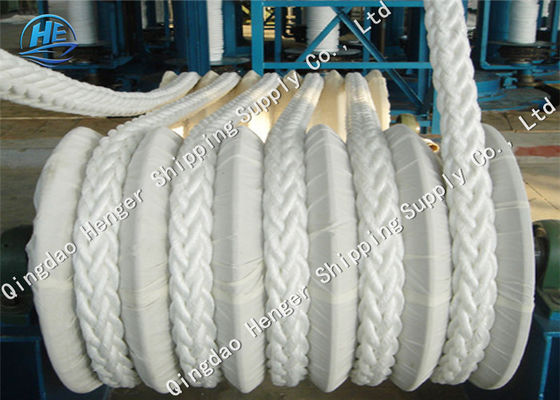

High Quality Cheap Marine Winch UHMWPE Braided Mooring Rope For Ship
Mooring Rope Specific nature
Mooring Rope Details
| Material | Polyamide Multifilament | Polyamide | PP Multifilament | PP Monofilament | Polyester | Polypropylene and Polyester Mixed |
| Spec.Density | 1.14 not floating | 1.14 not floating | 0.91 floating | 0.91 floating | 1.38 not floating | 0.95 floating |
| Melting Point | 215°C | 215°C | 165°C | 165°C | 260°C | 165/260°C |
| Abrasion Resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| U.V.resistance | Very Good | Very Good | Medium | Medium | Good | Good |
| Temperature resistance | 100°C max | 120°C max | 60°C max | 60°C max | 100°C max | 70°C max |
| Diameter(mm) | Linear Density | Breaking Strength(one end eye splice) (kN) | |
| index value(ktcx) | High strength | Normal | |
| 20 | 232 | 340 | 306 |
| 22 | 281 | 400 | 360 |
| 24 | 331 | 470 | 423 |
| 26 | 384 | 540 | 486 |
| 28 | 415 | 610 | 519 |
| 30 | 506 | 690 | 621 |
| 32 | 575 | 780 | 702 |
| 34 | 618 | 860 | 774 |
| 36 | 720 | 940 | 816 |
| 38 | 798 | 1040 | 936 |
| 40 | 881 | 1130 | 1020 |
| 44 | 1060 | 1310 | 1180 |
| 48 | 1250 | 1530 | 1380 |
| 52 | 1460 | 1770 | 1590 |
| 56 | 1690 | 2030 | 1830 |
| 60 | 1930 | 2280 | 2050 |
| 64 | 2200 | 2560 | 2300 |
| 68 | 2480 | 2850 | 2560 |
| 72 | 2780 | 3170 | 2850 |
| 76 | 3090 | 3500 | 3150 |
| 80 | 3430 | 3870 | 3480 |
| 88 | 4170 | 4680 | 4210 |
| 96 | 4970 | 5560 | 5000 |

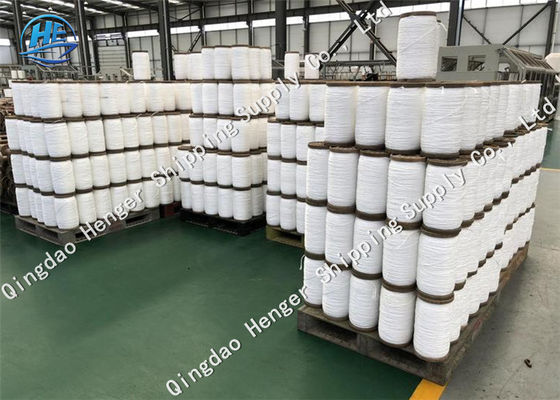

Our Company
The company mainly produces polypropylene (polypropylene), nylon (polyamide), polyester (polyester), polyester-acrylic hybrid, nylon, ultra-high molecular weight polyethylene series cable, Product diameter: 4mm~120mm, optional .The structure has 3 strands, 4 strands, 6 strands, 8 strands, 12 strands, and a double-woven 24-strand, 32-strand, 36-strand rope of various structural types.
The company's products have the characteristics of high strength, low elongation, anti-wear and anti-corrosion, and the performance indicators are in line with relevant national standards and international standards. Nowadays, the products have been widely used in deep sea mooring, marine engineering, ocean transportation, national defense military, port towing, water conservancy engineering and special equipment.
|
|
