Product Details:
Payment & Shipping Terms:
|
| Part: | Marine Airbag | Material: | Natural Rubber |
|---|---|---|---|
| Product Name: | Ship Launching Marine Air Bag | Color: | Black |
| Application: | Ship Launching/landing/lifting | Size: | Customized Size |
| Usage: | Ship Launching | Long: | 8-24m |
| High Light: | inflatable marine fenders,hydro pneumatic fender |
||
|
Diameter(D): |
From 0.8m to 2.4m |
|
Effective Length(EL): |
From 6.0m to 20.0m |
|
Total Length(TL): |
From 7.0m to 21.5m |
|
Standard Number of layers: |
Usually 4-10 layers |
|
Loading Capacity: |
About 10-40 T/M |
|
Type |
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
|
3 layers |
0.13MPA |
0.10MPA |
0.09MPA |
0.07MPA |
0.06MPA |
0.05MPA |
|
4 layers |
0.17MPA |
0.13MPA |
0.11MPA |
0.09MPA |
0.08MPA |
0.07MPA |
|
5 layers |
0.21MPA |
0.17MPA |
0.14MPA |
0.11MPA |
0.09MPA |
0.08MPA |
|
6 layers |
0.25MPA |
0.20MPA |
0.17MPA |
0.13MPA |
0.11MPA |
0.10MPA |
|
7 layers |
0.29MPA |
0.23MPA |
0.20MPA |
0.15MPA |
0.13MPA |
0.12MPA |
|
8 layers |
0.33MPA |
0.26MPA |
0.23MPA |
0.17MPA |
0.15MPA |
0.14MPA |

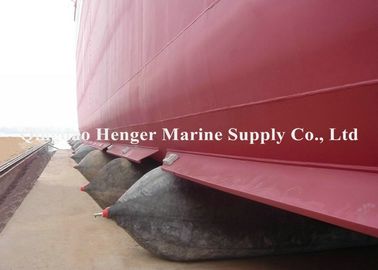

Marine Rubber Airbags
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Whole Intertwine Technology
"Henger" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
| Why do customers like to choose us? |
|---|
| 1. Value for Money, you will get the best price based on the excellent quality. |
| 2. Unrivalled Expertise, we promise first-rate product quality and service.1. Value for Money, you will get the best price based on the excellent quality. |
| 3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years. |
| 4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours. |
| 5. For our customers, we will provide a set of repaire tools with free. |
