Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring

Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring
Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring

Large Image :  Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV, CCS, ISO
Model Number: HEMB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: nude packing with pallet
Delivery Time: 20-26working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000/month
Detailed Product Description
Mame: Tee Head Bollard Type: Bollard
Material: Cast Iron Raw Material: Iron
Surface Treatment: Galvanized + Painted Color: Customized
Place Of Origin:: Qingdao China Warranty: 1 Year
High Light:

marine boat fenders

,

hydro pneumatic fender

,

Casting Iron Mooring Cleats Bollards

High Quality Casting Marine Dock Bollards Steel For Mooring

Henger provides a range of seven bollard styles to ensure the ideal mooring solution for you !

All bollards are precision engineered and manufactured in various metals including premium grade spheroidal iron and cast steel to offer high levels of service life and resistance to corrosion and impact



T-head Bollard Features



“Tee Bollard”, “T-bollard”, this design has a top shaped like a “T”. Hence, the name. Very prominent in many parts of the world due to its simplicity and it gets the job done well up to 300 tonnes. Suitable for steeper rope angles.



The bollard is designed and selected according to the berth capacity and the structure of the wharf to meet the requirements of
safe, reliable and easy-to-use operations such as ship leaving the dock, berthing, shifting and turning around. The bollard is
composed of shell, anchor rod, nut, washer, anchor plate and core packing. The bollard is divided into cast iron (HT200) and cast steel (ZG230-450), specification model: 50KN-2000KN .

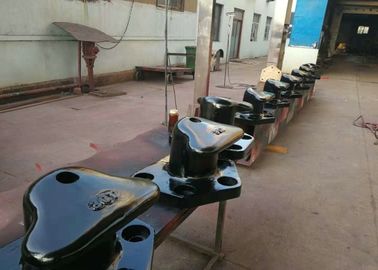

Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring 0

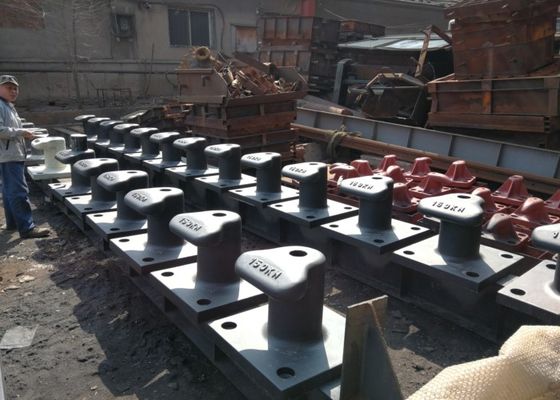

Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring 1

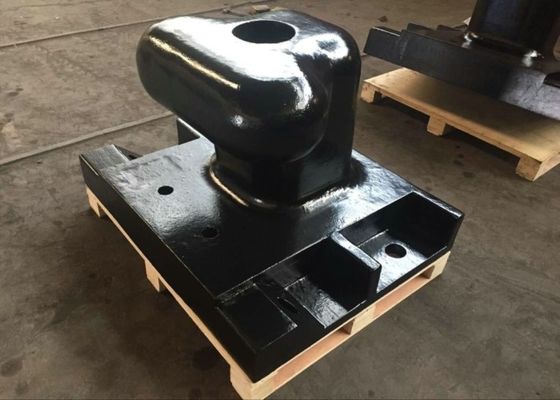

Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring 2



According to usage, there are normal type bollards, storm bollards, trial bollards, etc. Generally, the center of the normal typebollard is about 0.5 ~ 0.8m away from the front line, which is too close, so it is easy to be hit by the ship when approaching andleaving, and it is not safe for the cable operation. Too far behind, hindering the loading and unloading machinery and damagingthe cable. As there are electrical boxes and other facilities at the front edge of the ship-dressing and ship-repairing wharf, itis required that the bollard be a little farther from the front line, which is about 0.8 ~ 1.0 meters.



Bollards Steel High Quality Casting Marine Dock Bollards Steel For Mooring 3



Storm bollards are used formooring ships during storms, and are generally located behind docks. Some ports don't have storm bollards because there is littlechance of typhoon, or ships don't take shelter in the harbor when there is strong wind. In some ports, in order not to hinder theoperation of loading and unloading transportation machinery, storm bollards are not set up at the rear of wharves, but the size ofnormal type bollards is increased so that they can also be used in strong winds.
