| MOQ: | 1 set |
| Standard Packaging: | nude packing or customized |
| Delivery Period: | 15-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 pcs/week |
We offer a wide range of A to N buoys, demarcation buoys & mooring buoys ranging from 400mm upwards and 4m diameter. Full Oceans integrates the latest R&D innovations and manufacturing technologies in order to produce safe and qualitative products with great value for money. Safety, performance and costs are the top priority in the design of our products for ease of use and maintenance.

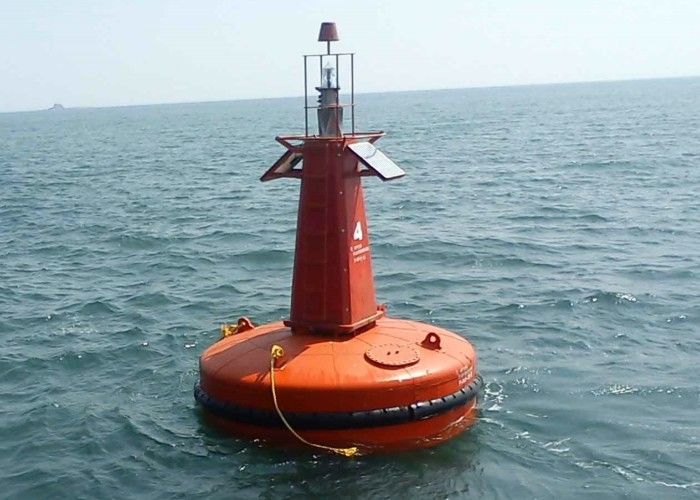

Navigation Aid Introduction
Aids to navigation is also called navigation mark, fairway buoy, navigational aid, set in navigable waters or around to mark the position of navigation channel, anchorage ground, dangerous shoal as well as other obstructions, to show the water depth, wind speed.
Fuatures
1. 2.2mtr diameter & up to 3.2mtr focal height (may be increased to 4mtr)
2. Robust construction, 2-part modular design
3. Large battery & payload section
4. High visibility red, green, white or yellow as per IALA recommendations
5. Internal redundant buoyancy
6. Excellent buoyancy & stability
7. Easy to deploy & service
8. Lightweight
9. Cost effective & environmentally friendly
Specification
1. Focal Plane height (mm) 3200
2. Height (mm) 4120 (with top mark)
3. Width (mm) 2200
4. Reserve Buoyancy (kgs) 1050
5. Wall thickness (mm) 18
6. Warranty* 5 Year
Navigation Aid Technical Parameter
| Model |
Floater Diameter (mm) |
Installation Water Depth(mm) | Free-board (mm) | Focal Plane Height(mm) | Net Weight(kg) |
Height (mm) |
Reserve Buoyancy(kg) |
| ATN800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
| ATN1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
| ATN1500 | 1500 | 3-35 | 610 | 2740 | 760 | 4280 | 974 |
| ATN1800 | 1800 | 5-70 | 700 | 3031 | 1748 | 5034 | 1500 |
| ATN2100 | 2100 | 10-80 | 800 | 3518 | 1900 | 5757 | 2450 |
| ATN2400 | 2400 | 10-90 | 960 | 4527 | 2881 | 6930 | 3950 |
| ATN3050 | 3050 | 20-120 | 1114 | 5164 | 3490 | 7610 | 7646 |
| ATNB3500 | 3500 | 20-150 | 1240 | 6090 | 3863 | 8520 | 11380 |
|
|
