Product Details:
Payment & Shipping Terms:
|
Name: | Steel Mooring Buoy | Material: | Steel |
---|---|---|---|
Application: | Ship Mooring | Warranty: | 12 Months |
Color: | Customized Color | ||
Highlight: | ship mooring buoys,foam filled buoys |

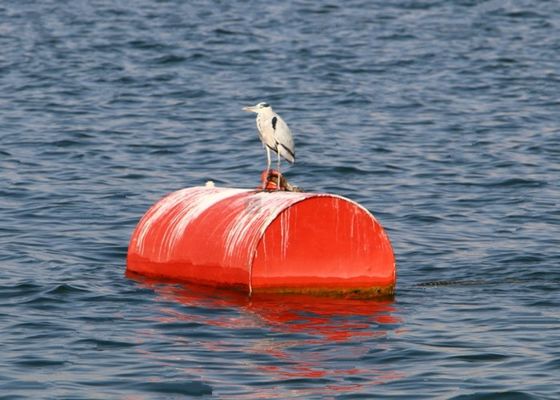

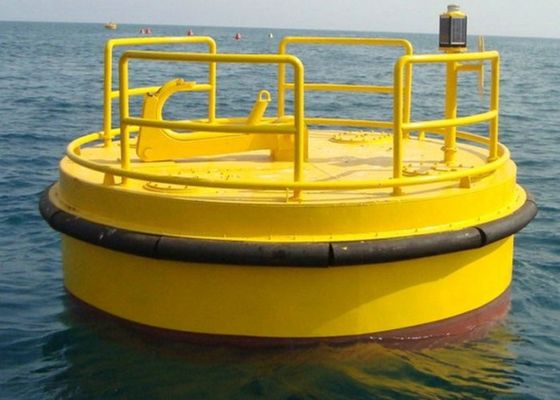

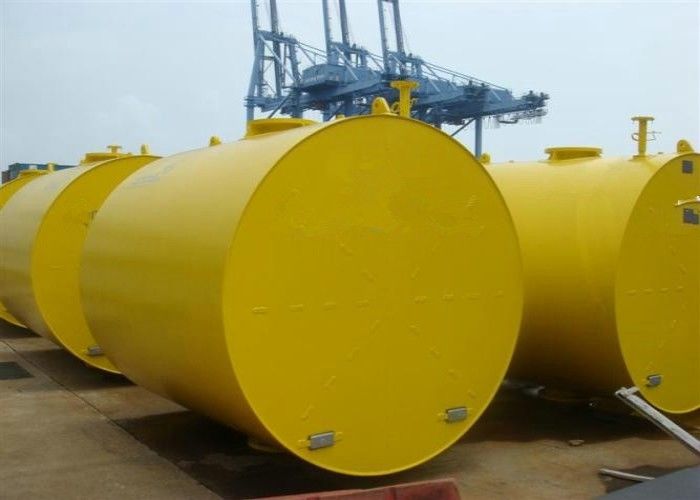

Steel Mooring Buoy Induction
Mooring Buoy is a floating body in the water, made of well sealed steel material or EVA material, providing mooring to ship. It is consisted of floating body, anchor chain and anchorage. Floating body is fixed on the water by anchor chain and anchorage. There is mooring shack and metal shackle on top of floating body. The mooring work is carried under specialized ship warping hawsers. The mooring buoy is divided into single-floater mooring type and double-floater mooring type. With single-floater mooring buoy, the ship would float around the floating body because of wind force and ocean current force. So most of harbors adopt double-floater mooring buoy for ships, which means ship bow and ship stern separately attached with mooring buoy. In this way, ships could be fixed on the water.
Steel Mooring Buoy Product Feature
1. Floating body is stable with compact and reasonable structure. It has perfect performance to resist impact and stormy waves
2. High toughness, strong performance to resist crack caused by environmental stress, suitable for various kinds of marine environment.
3. Lower floating body weight with higher loading capacity and better abrasion performance, easy to delivery and install, lower installation cost.
4. Good corrosion resistance and strong weather fastness, longer service life
5. Low attached marine organism, safe and environmental, low maintenance cost
Steel Mooring Buoy Design & Installation
Steel Mooring Buoy Technical Parameter
Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |
*buoy sizes and buoyancy can be customized according to customer design.
