Natural Rubber Pneumatic Marine Fender Durable 0.05MPa And 0.08MPa For Pier And Vessels

Natural Rubber Pneumatic Marine Fender Durable 0.05MPa And 0.08MPa For Pier And Vessels

What type do we have?

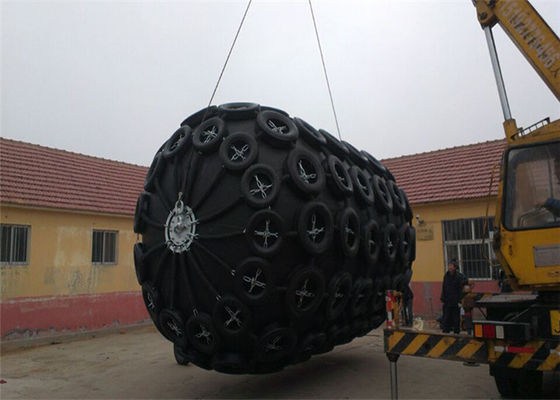

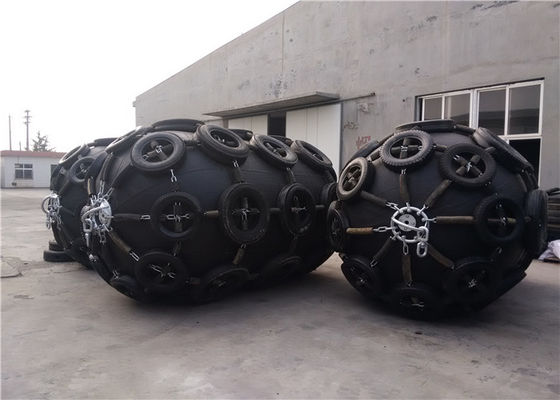

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.

Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.

Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.

1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.

2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.

3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.

4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.

5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.

6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.

7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.

Yokohama fender product specifications and performance:

Our PAYMENT TERMS:

We can accept T/T 30% In Advance and 70% T/T Before Shipment.

We can accept a prepayment of 30% for the first cooperation. In the second cooperation, I can apply for a better payment term from the boss.

About the quality:

1. With ISO17357 DNV - GL inspection, CCS inspection (Rubber Material Testing, Product Size Testing, Air Tightness Testing, Pressure Testing)

2. The factory quality inspection report issued by Henger, and if the customer needs it, a video inspection certificate can be issued when the product quality inspection is performed before the product leaves the factory. On the premise that the buyer bears the cost, a third-party testing agency can be invited to conduct product testing.

About the production process:

1. After the fender is produced, it will stand still for 48 hours in strict accordance with the requirements to check the product quality.

2. Before leaving the factory, each product will be strictly tested for air tightness, and a dedicated technician will use soapy water to detect air leakage. Once there is a quality problem, it is absolutely not allowed to leave the factory and sell it.
