Product Details:
Payment & Shipping Terms:
|
Name: | Pneumatic Rubber Fender | Color: | Black |
---|---|---|---|
Size: | 3.3*6.5M | Inner Pressure: | 50Kpa |
Style: | With Chain And Tyre | Lifespan: | About 10 Years |
Warranty Time: | 24 Months | MOQ: | 1 PC |
Material: | Natural Rubber | Payment: | Trade Assurance, T/T, L/C, Western Union, Money Gram |
High Light: | Marine Floating Pneumatic Rubber Fenders,ISO 17357 Rubber Fenders,Yokohama Type Rubber Fenders |
Qingdao Henger Shipping Supplies Co., Ltd
Qingdao Henger Shipping Supplies Co., Ltd is a most professional manufacturer in Shipping Supplies with 20 years production experience. Mainly supply you shipping supplies.
Main products:
Pneumatic rubber fender;
Floating foam filled fender;
Marine rubber airbag;
D-type /V-type/Cylindrical-type/Cell-type rubber fenders;
Mooring buoy;
Anchor;
Chain;
Bollard;
Mooring rope

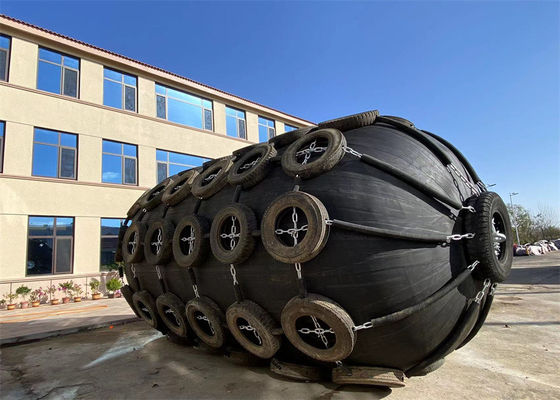

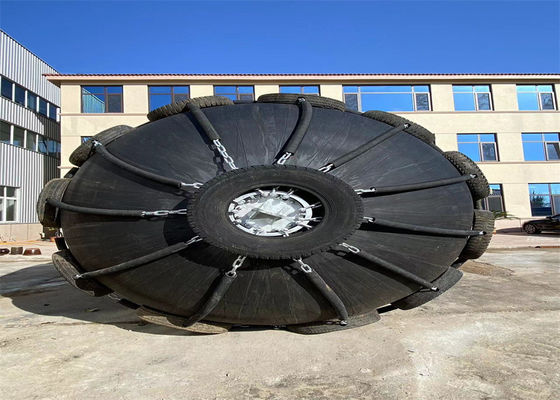

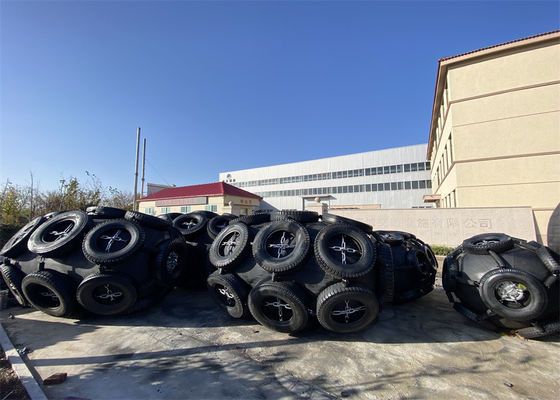

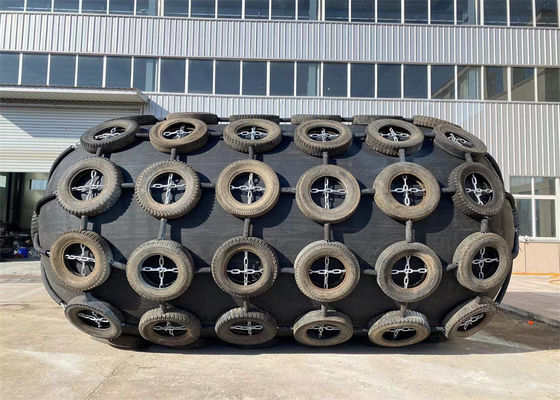

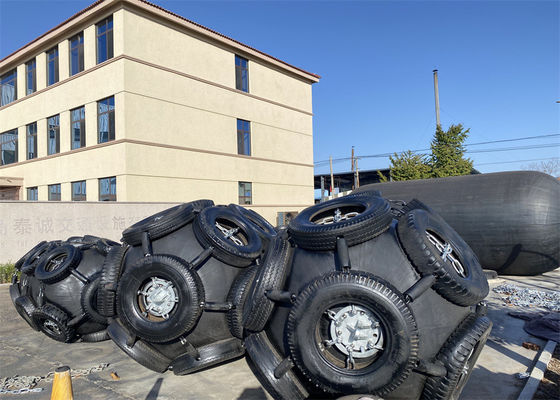

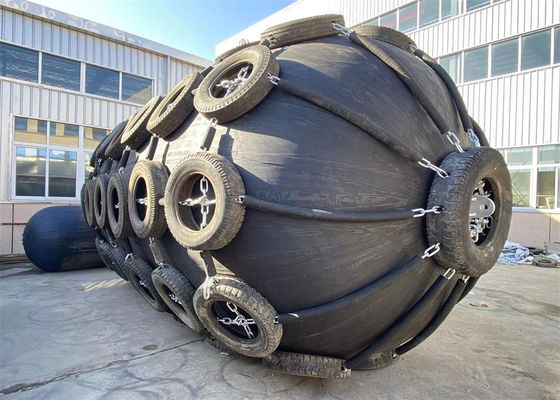

Floating marine pneumatic Yokohama type rubber fenders are called Yokohama fenders or Yokohama type pneumatic fenders. Floating pneumatic rubber Yokohama fenders are made from synthetic wire-reinforced rubber panels with compressed air inside. The internal air keeps it buoyant on the water and acts as a shock absorber between two ships (ship-to-ship) or between a ship and a mooring structure when the ships are side by side on the water. All Doowin Marine yokohama type floating aerodynamic rubber fenders are manufactured and tested to fully comply with ISO 17357 standards
Floating Marine Pneumatic Yokohama Type Rubber Fender Due to its light weight, it can be easily transported and installed with drawstrings or zip ties. It resists shear forces and maintains energy absorption levels under tilt compression up to 15 degrees. At the same time, it provides lower and more uniform hull pressure.
They are composed of multiple layers of synthetic cord and tough, wear-resistant rubber for consistent performance even under harsh conditions and cyclic loads. Maintenance costs and risk of damage are also minimized. The best materials also guarantee self-buoyancy and an extremely long service life.
Floating marine pneumatic Yokohama type rubber fenders are available in diameters ranging from 500mm to 4,500mm and lengths ranging from 1000mm to 12000mm. All sizes of inflatable rubber fenders are available in sling or heavy-duty chain and tire mesh versions. We also provide vertical hydropneumatic fenders for submarines.
Pneumatic rubber fenders (berthing balls) are ship equipment that provide mooring buffering and protection for ships. This type of fender is widely used in ocean-going transport ships, offshore facilities, offshore platforms, ports and terminals, yachts and other fields.
It is a rubber sealed container made of hanging rubber cord as the skeleton material. The ball is filled with compressed air and can float on the water, serving as an important buffer medium for berthing between ships and between ships. At the same time, the inflatable rubber ball can absorb the impact energy of ship movement, reduce the recoil of the ship, and greatly improve the safety of the ship docking.
Features:
1. Small reaction force and strong energy absorption capability.
2. The surface pressure on the side wall of the ship is small (the surface pressure of the fender can reach 14 tons/square meter)
3. The compression resistance does not decrease when tilted
4. Suitable for tidal size areas.
5. Use compressed air as buffer medium, suitable for cold weather.
6. Especially suitable for mooring and lightering of large ships at offshore terminals.
Color:
Regular Color: Black
Other Color: White and Ship Gray (According to your request)
Application:
1. STD anti-collision
2. STS anti-collision
Applicable industries:
1. Oil and Gas
2. STS/STD
3. Shipping Industry
4. Ocean Engineering
5. Maritime Bureau
6. Offshore Service
7. Shipyard/Dockyard
50Kpa/80Kpa Pneumatic Rubber Fenders Technical Parameters:
Nominal size diameter x length (mm) | Initial Internal Pressure (Kpa) | GEA (60+-5%KJ) | Reaction force at GEA deflection (R)/Tolerance+-10% (KN) | Hull Presure at GEA deflection (p)/ Reference value (Kpa) |
500*1000 | 50/80Kpa | 6/8 | 64/85 | 132/174 |
600*1000 | 50/80Kpa | 8/11 | 74/98 | 126/166 |
700*1500 | 50/80Kpa | 17/24 | 137/180 | 135/177 |
1000*1500 | 50/80Kpa | 32/45 | 182/239 | 122/160 |
1000*2000 | 50/80Kpa | 45/63 | 257/338 | 132/174 |
1200*2000 | 50/80Kpa | 63/88 | 297/390 | 126/166 |
1350*2500 | 50/80Kpa | 102/142 | 427/561 | 130/170 |
1500*3000 | 50/80Kpa | 153/214 | 579/761 | 132/174 |
1700*3000 | 50/80Kpa | 191/267 | 639/840 | 128/168 |
2000*3500 | 50/80Kpa | 308/430 | 875/1150 | 128/168 |
2500*4000 | 50/80Kpa | 663/925 | 1381/1815 | 137/180 |
2500*5500 | 50/80Kpa | 943/1317 | 2019/2653 | 148/195 |
3300*4500 | 50/80Kpa | 1175/1640 | 1884/2476 | 130/171 |
3300*6500 | 50/80Kpa | 1814/2532 | 3015/3961 | 146/191 |
3300*10600 | 50/80Kpa | 3067/4281 | 5257/6907 | 158/208 |
4500*9000 | 50/80Kpa | 4752/6633 | 5747/7551 | 146/192 |
4500*12000 | 50/80Kpa | 6473/9037 | 7984/10490 | 154/202 |
Our Hot-sellers size is :
1000*1500mm/1000*2000mm/1200*2000mm/1500*3000mm/1700*3000mm/2000*3500mm/2500*4000mm/2500*5500mm/3300*6500mm/4500*9000mm
Why Choose Us:
1. We are the manufacturer
2. We have our own professional design team, if you have the design method, you can let us know
3. We have our own factory more than 4000 square meters
4. We can supply you all the Shipping Supplies with best price
FAQ:
1. Are you the manufacturer or Trade Company:
We are the manufacturer in Qingdao, Shandong province, China
2. Which shipping method can you use?
We can use sea transportation, air transportation and land transportation to ship, this is according to which is convinience for you
3. Which payment way do you accept?
We accept Alibaba Trade Assurance, T/T, L/C, Western Union, Money Gram and so on payment way.
Contact Person: Mr. Tom
Tel: 15662503695
