Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance

China Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance supplier
Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance supplier Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance supplier Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance supplier Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance supplier

Large Image :  Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance

Product Details:

Place of Origin: CHINA
Brand Name: HENGER
Certification: ISO,BV,ABS,CCS,LRS,DNV,NK,GL
Model Number: J-Fenders-07

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: In nude or Inflatable or as per customized
Delivery Time: 5-10 days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 pieces per months
Contact Now
Detailed Product Description
Material: Natural Rubber Size: D500*1000--D4500*9000
Initial Internal Pressure: 0.05MPa/0.08MPa Delivery: 7-10 Days
Lifespan: 7-10 Years Port: Qingdao Port Or As Per Customized

1. Chinese Good Performance 1000*2000mm Submarine Fenders For Ship to Ship



"Yokohama Pneumatic Inflatable Rubber Fender " progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating pneumatic fenders are used world wide for
ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.









2.Yokohama Pneumatic Inflatable Rubber Fender



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance





3. Yokohama Pneumatic Inflatable Rubber Fender Structure



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance





Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



4.Production Process



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



5.Yokohama Pneumatic Inflatable Rubber Fender Advantage



5.1  Safety and Reliability

Yokohama Pneumatic Rubber Fenders are constructed of several layers of strong
tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the
design of this fender is based on accepted theory and has been proven by extensive
experimentation. Operational experience over a long period of time attests to its high
safety and reliability, and hydraulic pressure tests have proven the strength to be suitable.



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



5.2 No Deterioration or Variation in Performance

Yokohama Pneumatic Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
In the case of solid rubber fenders or foam-filled fenders, based on data were taken
from comparison tests of Yokohama Fenders, there are variations in performance. Such
performance variations are associated to changes of rubber or foam hardness occurring
as a result of cyclic compression and temperature change.



The good performance of the Yokohama Pneumatic Rubber Fenders remains unchanged
even at temperatures under -50 degrees Centigrade (-58 degrees Fahrenheit).



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



5.3 Advantages at Inclined Berthing

Ships usually make initial contact with the dock or another ship on STS operations at an
oblique angle.

In the case of Yokohama Pneumatic Rubber Fenders, energy absorption does not
decrease at inclined compression up to 15 degrees.



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance

5.4 Most Cost Competitive System

The utilization of the compressive elasticity of air, unlike other fenders which need protector panels, provides completely uniform surface pressure on contact. The surface pressure is equal to the internal air pressure



5.5 Stronger against Shearing Force

After contacting a dock, a ship is usually shifted to the correct mooring position. The
shifting exerts shearing and compression forces on the fenders. This combined force is
very severe in the case of solid rubber fenders because they are not reinforced against
such force. In contrast, Yokohama Pneumatic Rubber Fenders are adequately
reinforced using strong tire-cord to cope against such forces as well as internal
pressure.



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



5.6 Simple and Low Cost Installation

The weight of Yokohama Pneumatic Rubber Fenders is supported by the water on which it floats.
Therefore, the fender can be moored simply by means of a guy rope or chain, requiring minimal extra
cost. It can be removed easily to a suitable jetty or quay when not in use, or transferred to another
mooring point whenever required.



5.7 Low Maintenance Cost

Maintenance cost is very low. Although the internal pressure will vary with seasonal changes, the air leakage is so minimal that it is sufficient to check the air pressure only once a year. The chain net needs to be replaced only once in 3 or 4 years, depending on ambient conditions.



5.8 Shipping Cost Minimization

In order to minimize the shipping cost of Yokohama Pneumatic Rubber Fenders, the fenders are usually packed and shipped in containers or on pallets in vacuumed and folded down state.



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good PerformanceMarine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



6.Yokohama Pneumatic Inflatable Rubber Fender Technology Data



Fender Size Compression Amount (60%) Noumenon Weight Weight with Protective Jacket
D L Reaction Energy Absorption (Kg) (Kg)
(mm) (mm) (KN) (KNm)
500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000
* 1. above penumatic fenders parameter is based on of 0.05Mpa internal pressure,there is also & 0.08Mpa type for choice, kindly contact our service consultant for more details and competitive prices.

* 2. penumatic fender size could be customized according to customer requirement.

* 3. all accessorires could be customized according to customers' requirement or drawings.

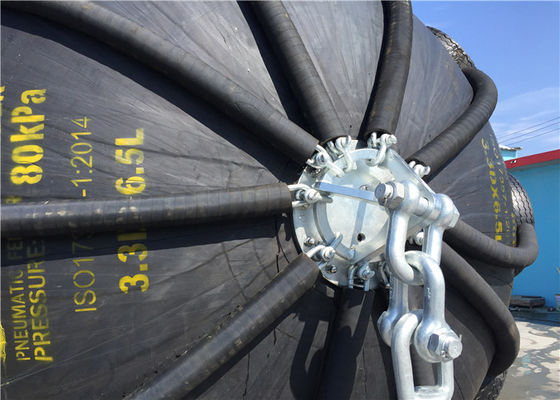

7.Yokohama Pneumatic Inflatable Rubber Fender Installation Methods



At both ends of the fender, first shackles, then swivel joints, followed by a further shackle
should be installed. A guy chain or guy rope is secured to the outer shackle. The swivel
joint prevents twisting of the guy chain or wire.



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance

Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance







8.Yokohama Pneumatic Inflatable Rubber Fender Installation Photos



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance





 9. Factory Facilities



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



    10. Company Exhibition



Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



10. Packing & Delivery

Marine Dock Bumpers Submarine Fenders 1000 * 2000mm Good Performance



11. Our Company

Qingdao Henger Shipping Supplies.,Ltd lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.



With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with all walks of life.
