Product Details:
Payment & Shipping Terms:
|
Name: | Pneumatic Rubber Fender | Color: | Black |
---|---|---|---|
Size: | 3.3*6.5M | Inner Pressure: | 50Kpa |
Style: | With Chain And Tyre | Lifespan: | About 10 Years |
Warranty Time: | 24 Months | MOQ: | 1 PC |
Material: | Natural Rubber | Payment: | Trade Assurance, T/T, L/C, Western Union, Money Gram |
High Light: | 50Kpa Black Pneumatic Fender,3.3X6.5M Black Rubber Fender,ISO17357 Natural Rubber Fender |
Qingdao Henger Shipping Supplies Co., Ltd
Qingdao Henger Shipping Supplies Co., Ltd is a most professional manufacturer in Shipping Supplies with 20 years production experience. Mainly supply you shipping supplies.
Main products:
Pneumatic rubber fender;
Floating foam filled fender;
Marine rubber airbag;
D-type /V-type/Cylindrical-type/Cell-type rubber fenders;
Mooring buoy;
Anchor;
Chain;
Bollard;
Mooring rope

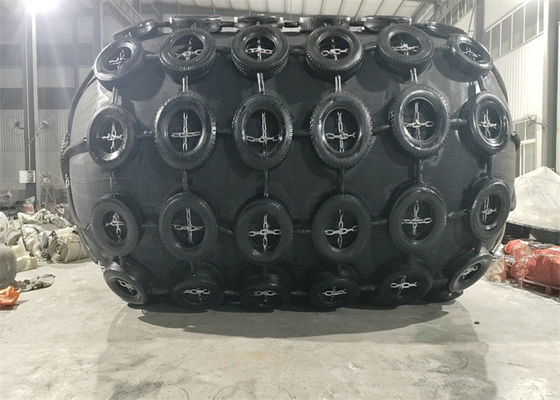

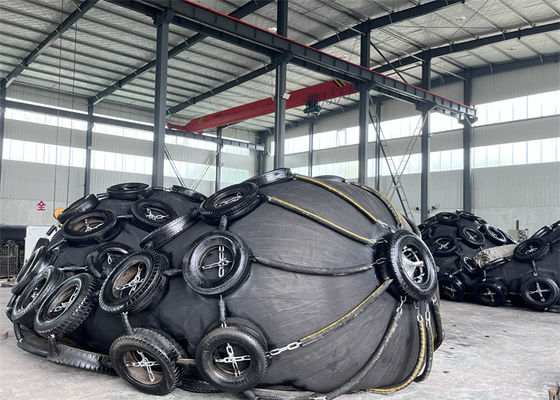

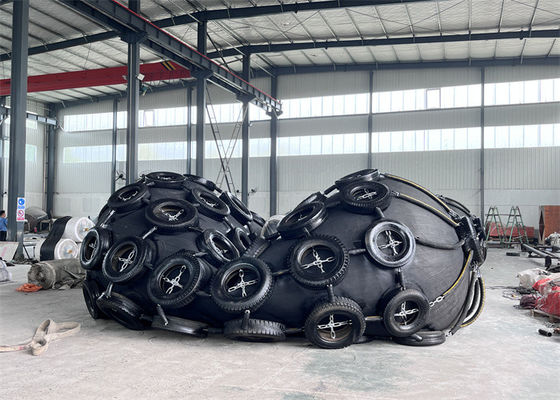

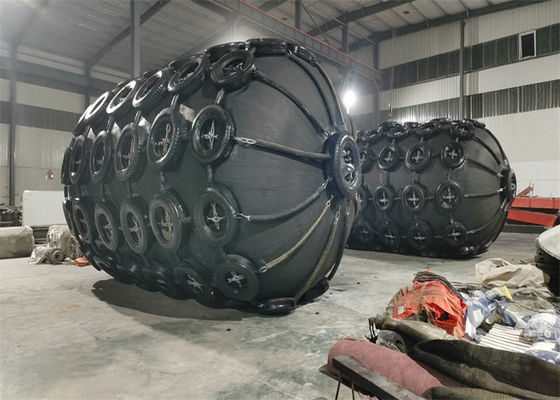

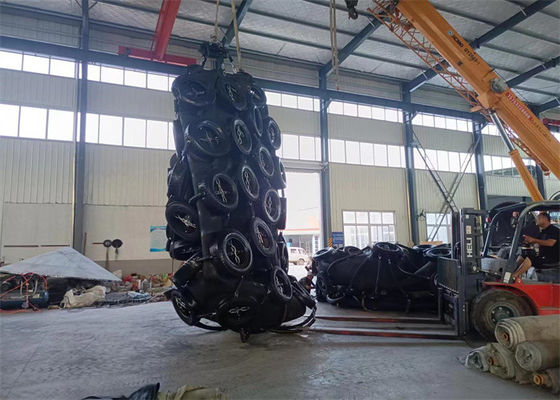

3.3*6.5M Pneumatic Rubber Fender:
ISO17357:2014 Floating pneumatic rubber fender is an anti-clossion device for marine application in the world. It is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the sea surface and work as a shock absorber when ship to ship transfer operation and ship to dock berthing and mooring operations.
Advantage:
The basic body construction of Floating pneumatic rubber fender consists of outer rubber layers, synthetic-tire-cord layers and inner layers
Net Type Pneumatic Fenders are covered with a chain net, wire net, or fiber net. Each end of longitudinal chains, wires, or fibers is linked together with one or two ring(s), which shall be connected with a guy chain or guy-rope. Usually, these nets have used tires together with rubber sleeves for additional protection to the fender body, except for fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.
The 3.3*6.5M fenders are generally installed bare, because the size after deflation is relatively large, and a 3.3*6.5M fender with chain tires can be loaded into a 20GP container, and 2 fenders need loaded into a 40HQ container, 3 fenders need to be loaded into a 40OT container.
Parameters:
Fender body size: 3.3*6.5M
With CTN: 3.62*6.5M
Weight with CNT: 3500KGS
Initial Pressure: 50Kpa
Reaction Force: 3015Kn
Energy ABSorption: 1814Kn M
Color:
Regular Color: Black
Other Color: White and Ship Gray (According to your request)
Application:
1. STD anti-collision
2. STS anti-collision
Applicable industries:
1. Oil and Gas
2. STS/STD
3. Shipping Industry
4. Ocean Engineering
5. Maritime Bureau
6. Offshore Service
7. Shipyard/Dockyard
50Kpa/80Kpa Pneumatic Rubber Fenders Technical Parameters:
Nominal size diameter x length (mm) | Initial Internal Pressure (Kpa) | GEA (60+-5%KJ) | Reaction force at GEA deflection (R)/Tolerance+-10% (KN) | Hull Presure at GEA deflection (p)/ Reference value (Kpa) |
500*1000 | 50/80Kpa | 6/8 | 64/85 | 132/174 |
600*1000 | 50/80Kpa | 8/11 | 74/98 | 126/166 |
700*1500 | 50/80Kpa | 17/24 | 137/180 | 135/177 |
1000*1500 | 50/80Kpa | 32/45 | 182/239 | 122/160 |
1000*2000 | 50/80Kpa | 45/63 | 257/338 | 132/174 |
1200*2000 | 50/80Kpa | 63/88 | 297/390 | 126/166 |
1350*2500 | 50/80Kpa | 102/142 | 427/561 | 130/170 |
1500*3000 | 50/80Kpa | 153/214 | 579/761 | 132/174 |
1700*3000 | 50/80Kpa | 191/267 | 639/840 | 128/168 |
2000*3500 | 50/80Kpa | 308/430 | 875/1150 | 128/168 |
2500*4000 | 50/80Kpa | 663/925 | 1381/1815 | 137/180 |
2500*5500 | 50/80Kpa | 943/1317 | 2019/2653 | 148/195 |
3300*4500 | 50/80Kpa | 1175/1640 | 1884/2476 | 130/171 |
3300*6500 | 50/80Kpa | 1814/2532 | 3015/3961 | 146/191 |
3300*10600 | 50/80Kpa | 3067/4281 | 5257/6907 | 158/208 |
4500*9000 | 50/80Kpa | 4752/6633 | 5747/7551 | 146/192 |
4500*12000 | 50/80Kpa | 6473/9037 | 7984/10490 | 154/202 |
Our Hot-sellers size is :
1000*1500mm/1000*2000mm/1200*2000mm/1500*3000mm/1700*3000mm/2000*3500mm/2500*4000mm/2500*5500mm/3300*6500mm/4500*9000mm
Why Choose Us:
1. We are the manufacturer
2. We have our own professional design team, if you have the design method, you can let us know
3. We have our own factory more than 4000 square meters
4. We can supply you all the Shipping Supplies with best price
FAQ:
1. Are you the manufacturer or Trade Company:
We are the manufacturer in Qingdao, Shandong province, China
2. Which shipping method can you use?
We can use sea transportation, air transportation and land transportation to ship, this is according to which is convinience for you
3. Which payment way do you accept?
We accept Alibaba Trade Assurance, T/T, L/C, Western Union, Money Gram and so on payment way.
Contact Person: Mr. Tom
Tel: 15662503695
