| Certification: | CCS,ABS,BV,LR,CCS BV GL | Application: | Salvage,heavy Lifting,ship Launching,landing |
|---|---|---|---|
| Material: | Natural Rubber | Color: | Black |
| Size: | Customer's Ruquirement | Lifespan: | 8~10 Years |
| Standard: | ISO14409 | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
| Warranty: | 18 Months | Type: | Pnematic |
| High Light: | Marine Inflatable Ship Launching Airbag,10layers Ship Launching Airbag |
||

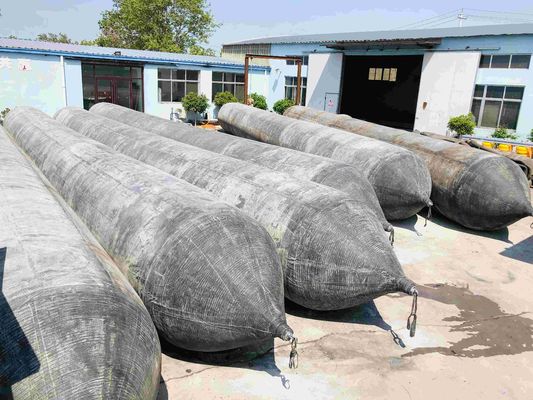

Inflatable Rubber Ship Launching Airbag Introduction
Marine Rubber Airbag is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The Products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Upgrade of the Airbag end Fittings
The material and structure were reformed respectively :
1. Material: The upgraded end fittings are made of stainless steel, which is more resistant to corrosion than the previous hot-dip galvanized material.
2. Structurally: Technical changes have been made to the structure design of the end, and the air retention performance has been greatly improved. After testing, our airbags can be air-tight for 24 hours.
1.Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
2.Weight Lifting & Moving
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects.
3.Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
Whole Intertwine Technology
"HENGER" Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology (roller), more than 20% bearing capacity.
“HENGER” airbag structure are consist of the outer rubber + synthetic cord reinforced rubber layers.Its shape characteristics: central body cylindrical + tapered on both ends. Cord layers: 4,5,6,7,8,9,10,11,12 layers.
Inflatable Rubber Ship Launching Airbag Real-time production dynamic sharing
In order to assure you of the quality of the products and the status of the whole goods, our factory can show you the production and delivery status of the goods by video at any time
