ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier

ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier
ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier

Large Image :  ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier

Product Details:
Place of Origin: CHINA,QINGDAO
Brand Name: Henger
Certification: ISO9001:2000, ISO14000, SGS, CE, etc.
Model Number: 016
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: paller
Delivery Time: 5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Material: PU/EVA+Galvanized Beam Color: Yellow,Orange
Product Name: Safety Roller Barrier Usage: Road Traffic Safety
Size: 1.2 M*1 M* 1.2 M Or Custom Standard: AISI,GB,JT/T281/AASHTO M180
High Light:

PVC Safety Guard Rail

,

ISO Safety Guard Rail

,

ISO Rolling Guardrail Barrier

ISO Standard PU And PVC Safety Roller Guard Rail Rolling Barrier Guardrail

Product Introduction



The Safety highway roller barrier is mainly composed of rotating barrels, columns, beams, swing rings, buckles, sleeves, ends, reflective strips and bolts. It adopts the "one column and four columns" method to strengthen the performance and installation of the columns and guardrails. Way, effectively preventing the car from crossing the fence and driving out of the driving lane.



ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 0



Working principle



The Safety highway roller barrier pioneered a rotating structure to support the flexible and anti-collision and wear-resistant rotating bucket on the column, so that the rotating bucket can rotate freely on the column, through the freedom of the rotating bucket The rotation decomposes the impact force of the car, so that the impact force perpendicular to the guardrail is decomposed to the direction parallel to the guardrail, which is effectively absorbed and reduced by the rotating barrel, thereby effectively reducing the consequences of traffic accidents.

ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 1



Product Components And Specifications

The rotary anti-collision guardrail is composed of rotating barrel, beam, column, reflective strip, casing, rotating coil and connecting piece.
The exploded view is as follows:

ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 2

Products specification
Roller (royalty barrel)
H240xφ350mm,H270xφ350
Post
φ140x2200x4.5mm
Cross beam
100x80x4.0mm
Connecting rack
430x84x70x4.0mm
U shape frame
380x70x6.0mm
Turning circle
φ182xφ145x2.0mm
Square buckle
46x64x4.0mm
Terminal
1300x230x2.0mm
Bolts&Nuts
M20x60/120/140mm





Rotary anti-collision guardrail constitutes the outline - the deviation of the outer dimensions of the rotating anti-collision guardrail member is allowed 5%

Easy to install

The new rotary anti-collision guardrail series adopts modular design, the whole
installation is simple and quick, no need for professional guidance, the installation is
safe and pollution-free, and the installation cost is low.

ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 3

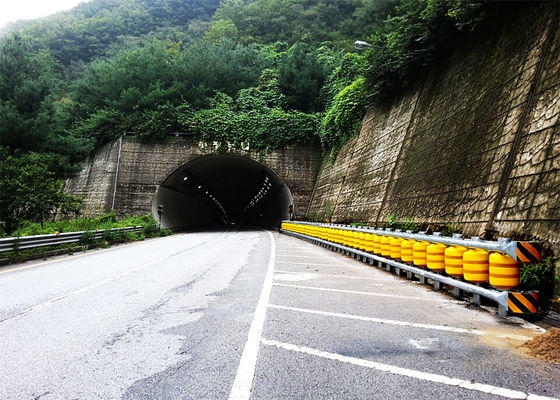

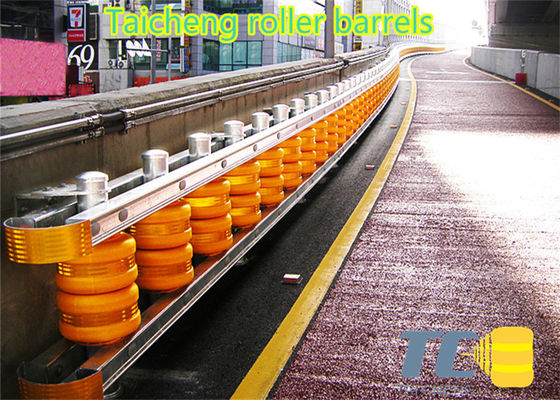

Product Application

ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 4ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 5ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 6ISO Standard PU And PVC Safety Guard Rail Rolling Guardrail Barrier 7



Company Profile



Taicheng Transportation Independents research and development, the self-designed anti-shock energy-absorbing highway roller barriers( new rotary anti-collisionguardrail )broke the technical monopoly of Korean American countries, filled the market gap of China's rotary guardrail, and was praised by the industry as “China's guardrail technology milestone ”.



The product has more than 20 national patents, successfully passed the collision test of small cars (house cars), buses and large trucks in the highway test site of the Ministry of Communications, and the test results and collision data are at the international leading level.
