| Product Name: | High Quality 50KPA 80KPA ISO17357 Yokohama Floating Pneumatic Rubber Fender | Part: | Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender |
|---|---|---|---|
| Color: | Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color | Material: | Natural Rubber |
| Warranty Period: | 24 Months | Size: | Customized,D3.3*L6.5m Pneumatic Rubber Fender |
| Packing: | Nude Packing/As Requirement | Usage: | Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat |
| Chain: | 312,hot Galvanizing Or Stainless Steel(304 | Quality: | Excellent |
| Design Using Life: | 10 Years | Feature: | Aging Resistance |
| High Light: | 50KPA Pneumatic Rubber Fender,80KPA Pneumatic Rubber Fender,ISO17357 Pneumatic Rubber Fender |
||

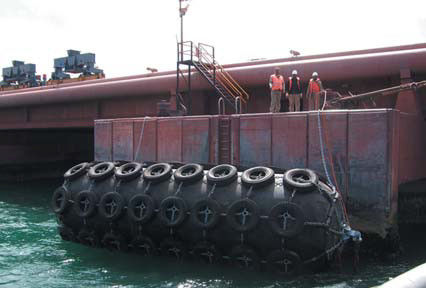

The fender is mainly to withstand the impact force of the ship when the ship is docking, leaving the dock and other forms (such as when the ship is tied to tow), and transmits it to the hull structure of a larger area. Wooden fenders have buffering effect. Although steel fenders have poor buffering effect, they have better strength and can be included in the section of the hull girder (the welding strength must be guaranteed). Especially for large-open deck barges, they can make up for the deck The lack of effective cross-sectional area is conducive to longitudinal strength. Steel materials cannot be used for the fenders of oil barges and small oil tankers.
There are many advantages of fenders, which not only protect the hull from impact, but also protect marine facilities.
Large seagoing vessels usually do not have fenders. River boats, work boats, permanent double-track fenders, one of which is located on the upper deck, and the other is located slightly higher than the designed waterline.
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
1. Meet the requirements of ISO17357:2002
2. More secure and reliable
3. Smaller parking force
4. Adapt to the tide and environmental friendly
5 Low maintenance costs
6. Low reactivity and Hull pressure
7. The most cost-effective system
8. Advantages of reducing shear force
9. Simple installation and low cost
10. There are many optional accessories.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers.
Unified arrangements according to customer requirements.We always put the customer's requirements first.
Pneumatic Rubber Fenders are suitable for many applications including:
1. Tankers, Gas Carries and Bulk Cargo Ships;
2. Fast ferries and aluminum hulled vessels;
3. Temporary of permanent installations;
4. Rapid response and emergency fendering;
5. As stand-off fenders to realign ships with shore facilities.
6.large crude oil carrier, VLCC
7. container vessel
8. offshore sea task platform and etc.
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. And please contact us if have any other needs or problems. We always put the customer's requirements first.
