Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS BV Certification ISO17357 ISO9001 | Color: | Black/As Requirements |
|---|---|---|---|
| Material: | Natural Rubber | Application: | STD,STS,Ships And Boats,Marine/quay/dock/boat |
| Name: | Pneumatic Rubber Fender | Warranty Period: | 24 Months |
| Packing: | Nude Packing/As Requirement | Diameter: | 0.5~4.5m |
| High Light: | Anticollision Pneumatic Marine Fenders,Pneumatic Marine Fenders ISO17357,ISO17357 d fender rubber |
||
Made In China Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification
Why do customers like to choose us?
1. Value for Money, you will get the best price based on the excellent quality.
2. Unrivalled Expertise, we promise first-rate product quality and service.
3. Good product lifespan and quality warranty, our products has a long servicing life for 10-15years.
4. Professional after-sales service. We will help our customers to solve any product's questions within 24 hours.
5. For our customers, we will provide a set of repaire tools with free.
Our equipment :

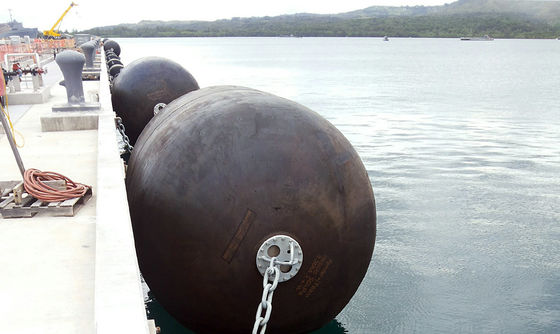

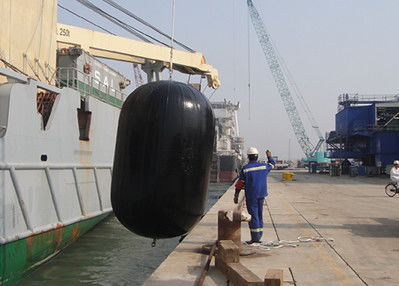

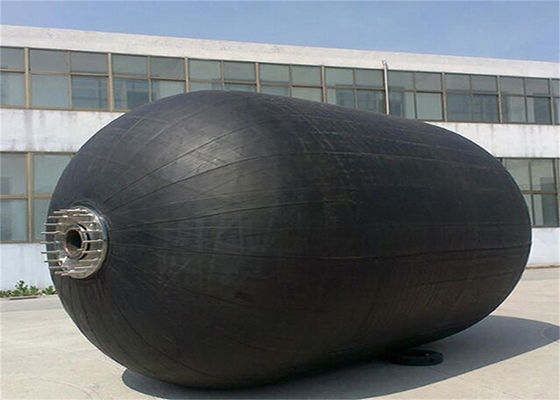

Pneumatic rubber fender is the advanced anti-collision device for marine application in the world. Pneumatic Rubber Fender also known as floating fender or Yokohama type rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment.
Features:
1. Large compression deformation, low reaction force, high energy absorption
2. Good floating performance, can meet the needs of the water level change
3. With compressed air as medium, the collision energy consumption by compressed air power
4. Easy installation and long service life

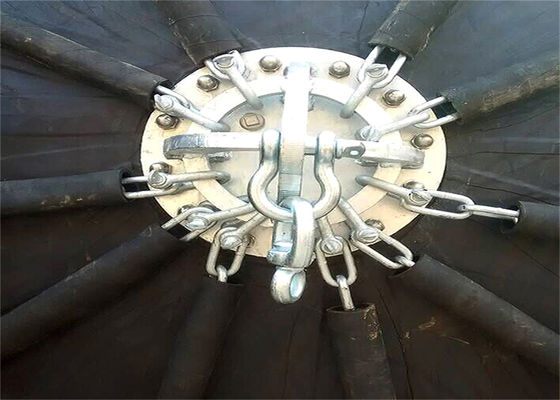

Structure:
Specification:
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Company Information
Qingdao Henger Shipping Supplies Co., Ltd Lies in Qingdao , a beautiful coastal city . Qingdao Henger Shipping Supplies Co., Ltd is a high-
tech enterprise integrated with manufacturing , research and innovation , technical services , specialized in manufacturing marine products , such
as pneumatic rubber fenders, foam filled fenders , marine rubber airbags , navigation mark , marine buoys . We are committed to ensuring
the safe docking of ships and contributing to the development of marine shipping.
