Product Details:
Payment & Shipping Terms:
|
Certification: | CCS/BV/ABS/ISO17357/ISO9001 | Product Name: | Pneumatic Rubber Fender/Marine Fender/Yokohama Fender |
---|---|---|---|
Brand: | Henger | Material: | Natural Rubber |
Size: | 0.5*1m~4.5*9m | Warranty: | 24 Months |
Working Pressure: | 50kPa/80kPa | Usage: | Dock Protection/ship Protection/ship To Ship Protection |
Production Time: | 5-8 Days | Color: | Black/blue/as Requirements |
Diameter: | 0.5m~4.5m | Length: | 1.0m~9m |
Using Life: | 10years | Payment Method: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
High Light: | Inflatable Pneumatic Rubber Fender,50kPa Pneumatic Rubber Fender,9m Pneumatic Rubber Fender |

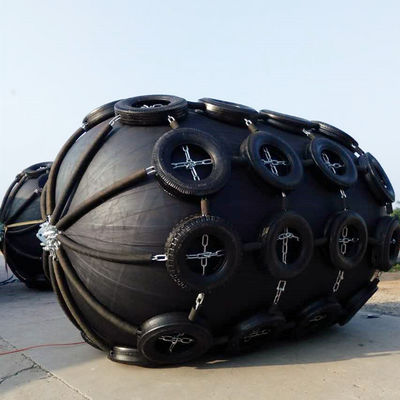

Natural Rubber Floating Inflatable Marine Fender Rubber Boat Fender
The fender is mainly to withstand the impact force of the ship when the ship is docking, leaving the dock and other forms (such as when the ship is tied to tow), and transmits it to the hull structure of a larger area. Wooden fenders have buffering effect. Although steel fenders have poor buffering effect, they have better strength and can be included in the section of the hull girder (the welding strength must be guaranteed). Especially for large-open deck barges, they can make up for the deck The lack of effective cross-sectional area is conducive to longitudinal strength. Steel materials cannot be used for the fenders of oil barges and small oil tankers.
Large seagoing vessels usually do not have fenders. River boats, work boats, permanent double-track fenders, one of which is located on the upper deck, and the other is located slightly higher than the designed waterline
Features of pneumatic rubber fender:
1.Comply with ISO 17357-1:2014 standard
2.Can support large panels
3.Very low response and hull pressure
4.Suitable for small and large tidal ranges
5.Maintain a large gap between the hull and structure
6.Easy to deploy
7.Made of 100% synthetic tire cord
The following are the product specifications and detailed parameters:
Pneumatic 50 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
500 x 1000 | 50 | 6 | 64 | 132 |
600 x 1000 | 50 | 8 | 74 | 126 |
700 x 1500 | 50 | 17 | 137 | 135 |
1000 x 1500 | 50 | 32 | 182 | 122 |
1000 x 2000 | 50 | 45 | 257 | 132 |
1200 x2000 | 50 | 63 | 297 | 126 |
1350 x 2500 | 50 | 102 | 427 | 130 |
1500 x 3000 | 50 | 153 | 579 | 132 |
1700 x 3000 | 50 | 191 | 639 | 128 |
2000 x 3500 | 50 | 308 | 875 | 128 |
2500 x 4000 | 50 | 663 | 1381 | 137 |
2500 x5500 | 50 | 943 | 2019 | 148 |
3300 x 4500 | 50 | 1175 | 1884 | 130 |
3300 x 6500 | 50 | 1814 | 3015 | 146 |
3300 x 10600 | 50 | 3067 | 5257 | 158 |
4500 x 9000 | 50 | 4752 | 5747 | 146 |
4500 x 12000 | 50 | 6473 | 7984 | 154 |
Pneumatic 80 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
500 x 1000 | 80 | 8 | 85 | 174 |
600 x 1000 | 80 | 11 | 98 | 166 |
700 x 1500 | 80 | 24 | 180 | 177 |
1000 x 1500 | 80 | 45 | 239 | 160 |
1000 x2000 | 80 | 63 | 338 | 174 |
1200 x 2000 | 80 | 88 | 390 | 166 |
1350 x 2500 | 80 | 142 | 561 | 170 |
1500 x 3000 | 80 | 214 | 761 | 174 |
1700 x 3000 | 80 | 267 | 840 | 168 |
2000 x 3500 | 80 | 430 | 1150 | 168 |
2500 x 4000 | 80 | 925 | 1815 | 180 |
2500 x 5500 | 80 | 1317 | 2653 | 195 |
3300 x 4500 | 80 | 1640 | 2476 | 171 |
3300 x 6500 | 80 | 2532 | 3961 | 191 |
3300 x 10600 | 80 | 4281 | 6907 | 208 |
4500 x 9000 | 80 | 6633 | 7551 | 192 |
4500 x 12000 | 80 | 9037 | 10490 | 202 |
Application of pneumatic rubber fender:
Oil and gas tanker
Fast ferry and aluminum boat
Temporary and permanent facilities fast
Quick response and emergency
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
Hener Shipping Company mainly produces marine airbags, inflatable fenders (marine ball), marine navigation marks, mooring buoys, bridge anti-collision piers, rotating guardrails and inflatable mandrels for construction projects. They are constantly updated and improved every year. Owning a professional production line developed by ourselves, the products are exported to domestic and foreign markets, advanced mechanical equipment and technical processes, produce high-quality airbags with abrasion resistance, aging resistance, good air tightness, high strength, long service life and high bearing pressure The airbag has now undertaken safe launching and launching projects for giant ships with a load of 60,000 tons and a dead weight of more than 10,000 tons. At the same time, it overcomes the disadvantages of being restricted by fixed launching slides when repairing and building ships. The advantages of high comprehensive economic benefits. The airbag is widely used in the upper row and launching of various ships, as well as salvaging sunken ships and moving heavy objects. The launch of high-strength dual-purpose airbag products has solved the common problems of launching and launching water in various types of flat, sharp-bottomed, medium and small ships at home and abroad.
Pneumatic Rubber Fender
Made of natural rubber, the warranty period can reach two years.
Internal structure drawings:
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

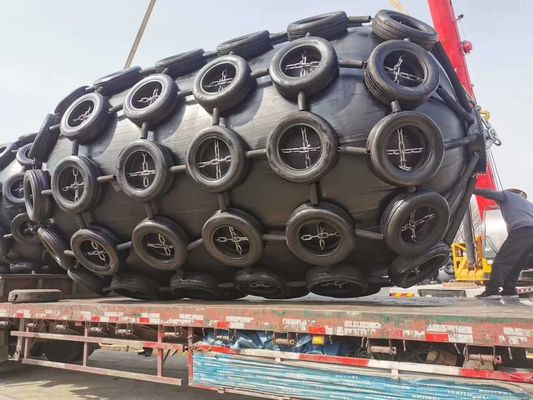

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
Thank you for reading. If you have any needs and interests, you can contact me.
