Product Details:
Payment & Shipping Terms:
|

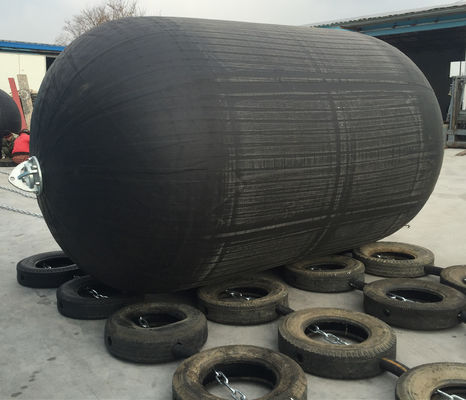

| Certification: | BV CCS LRS GL SGS | Product Name: | Pnematic Rubber Fender / Yokahama Rubber Fender / Inflatable Rubber Fender |
|---|---|---|---|
| Brand: | HENGER | Material: | Natural Rubber |
| Size: | D0.5m-3.3m | Warranty Period: | 24months |
| Application: | Ships And Boats | Packing: | Nude Packing/As Requirement |
| High Light: | 3.3m Pneumatic Rubber Fender,Fishing Ship Pneumatic Rubber Fender,Pneumatic Inflatable Marine Fenders |
||
What type do we have?

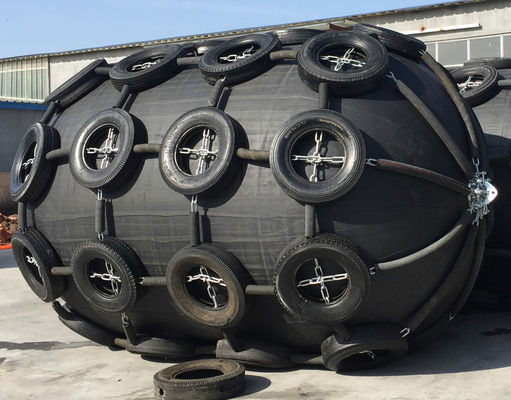

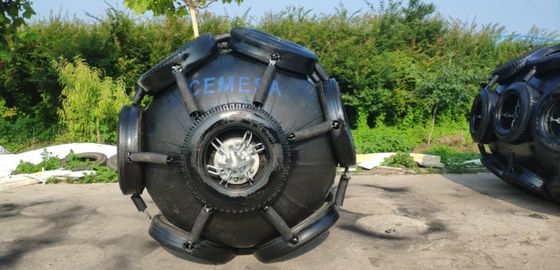

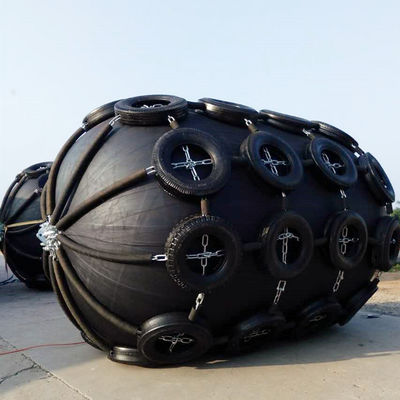

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.
Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.
How does the fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
Pneumatic rubber fender Parameter
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
Pneumatic Rubber Fender Application
1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
