Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks

China Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks supplier

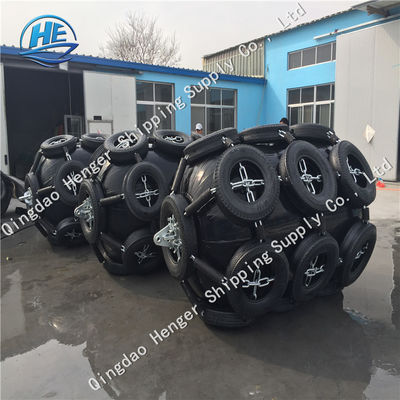

Large Image :  Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks

Product Details:

Place of Origin: CHINA,QINGDAO
Brand Name: Henger
Certification: Iso 9001、BV、ccs
Model Number: 015

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Naked
Delivery Time: 5day
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs week
Contact Now
Detailed Product Description
Color: Customized Colors Material: Customized
Size: Customized Size Product Name: Pneumatic Rubber Fender
Warranty Period: 24 Months Packing: Naked
Certification: CCS BV Certification ISO17357 ISO9001,LR,CCS Design Using Life: 10 Years

Pneumatic rubber fender (for ship use) uses compressed

-air as medium to absorb the energy from impact.



Progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.



Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.



Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.



Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks



Pneumatic rubber fender Features:

1. Guaranteed energy absorption


2. Chain tyre net and sling type


3. Thick skin construction


4. Good angular performance


5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).


6. No reduction on the performance of compression when inclined.


7. Suitable for areas with large or small tides.


8. Suitable in cold weather because the compressed air as buffering medium.


9. Especially in mooring of large scale ships in sea docks and lightering.


10. Maintains large clearances between hull and structure



Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks



Pneumatic rubber fenders have a long and successful history of protecting vessels in mooring operations. They are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers.

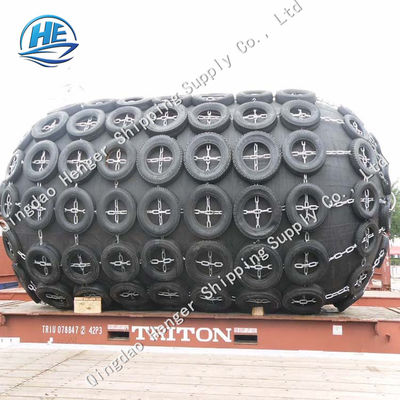

Pneumatic fenders are available as sling type or with chain tyre nets to suit a variety of inshore and offshore applications.

Pneumatic fenders are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. They are supplied in a wide range of sizes and in standard of high-pressure versions. Smaller fenders can be supplied as Hook type. Larger fenders are commonly fitted with a chain-tyre net for added protection. For navy ships, a grey body is also available.

Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks

Comparison of Henger Pneumatic Rubber Fender​ and traditional elastic rubber fender:


1. High impact energy absorption, low impact force on the ship


2. Simple installation


3. Good elasticity, no deformation under the action of compression


4. Lightweight, practical and economical



Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks



Pneumatic Rubber Fender​ Applications:



1. Oil and gas tankers


2. Fast ferries and aluminum vessels


3. Temporary and permanent installations


4. Rapid response and emergencies


5. In ports with extreme tidal variations


6. For ship-to-ship lightering operations


7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption





Compressed Air Anti-Collision Pneumatic Rubber Fender For Ships Or Docks



Specification parameter table:





Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202






Service and transportation:


The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.


After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
