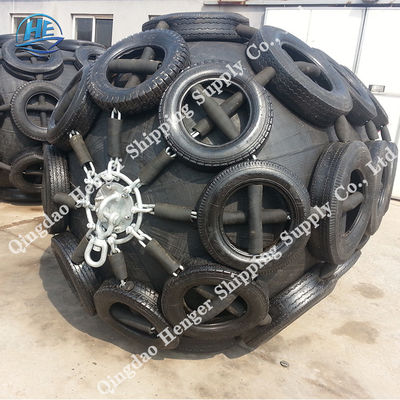

Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

China Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color supplier
Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color supplier Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color supplier

Large Image :  Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

Product Details:

Place of Origin: Qingdao
Brand Name: HENGER
Certification: CCS.ABS.LRS.BV.GL.DNV.NK
Model Number: D2500mm*L4000mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Nude Packing/Pallet/Box
Delivery Time: 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30 Pcs Per Week
Contact Now
Detailed Product Description
Color: Black/White Material: Natural Rubber
Lifespan: 6-10 Years Initial Internal Pressure: 0.05MPa/0.08MPa
Part: Marine Fender Warranty: 24 Months
Usage: Protect Boat Quality: Durable

Long Lifespan Marine Fender With Chain And Tyre Net Rubber Fenders





1. Product Description

Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

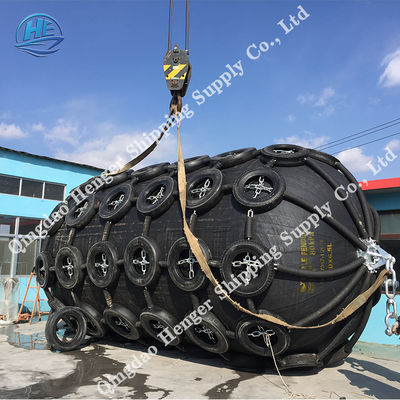

Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color



2.Product Structure

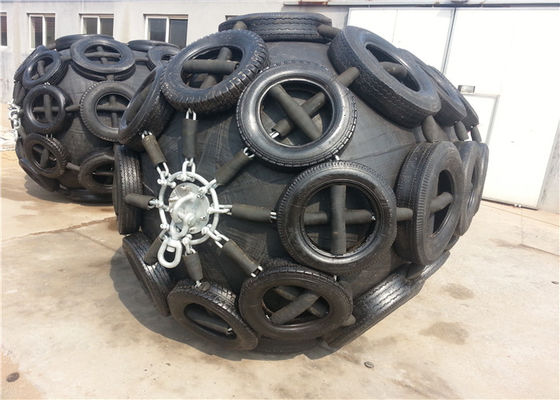

Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color

2.1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.

2.2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.

2.3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.

2.4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.

2.5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.

2.6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.

2.7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.



3.Product Specifications



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202



4.Product Applications



Pneumatic Rubber Fender is constructed of synthetic-cord-reinforced rubber sheets with compressed air inside to keep floating over the water surface and work as a shock absorber between two ships or between ships and berthing structure when they come alongside each other on the water.

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today. Pneumatic Fender has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.



Pneumatic Rubber Fenders are suitable for many applications including:

1. Tankers, Gas Carries and Bulk Cargo Ships;

2. Fast ferries and aluminum hulled vessels;

3. Temporary of permanent installations;

4. Rapid response and emergency fendering;

5. As stand-off fenders to realign ships with shore facilities.

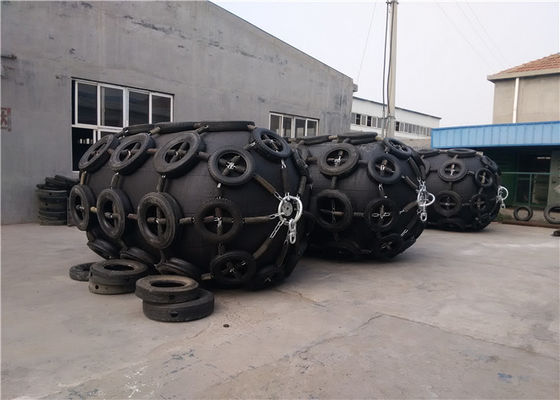

Long Lifespan Boat Mooring Fenders Marine Boat Fenders With Chain Black Color
