1.8*18mtr Marine Rubber Airbag For Boat Launching

1.8*18mtr Marine Rubber Airbag For Boat Launching
1.8*18mtr Marine Rubber Airbag For Boat Launching
video play

Large Image :  1.8*18mtr Marine Rubber Airbag For Boat Launching

Product Details:
Place of Origin: Qingdao
Brand Name: HER
Certification: BV / CCS / ISO9001
Model Number: 1.8*18mtr
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Pallet
Delivery Time: 7
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Pieces per months
Detailed Product Description
Material: Natural Rubber Application: Ship Launching
Diameter: 0.8 /1.0 / 1.5 / 1.8 / 2.0 / 3.0 / 4.0m Working Pressure: 0.05MPa-0.17MPa
Color: Black Size: Customized Size
Layer: 5/ 6/ 7 / 8 / 9 / 10 Layers Packing: Pallet
High Light:

1.8*18mtr Marine Rubber Airbag

,

1.8*18mtr ship launching airbag

,

Marine Rubber Airbag For Boat Launching

High quality 1.8*18mtr marine rubber airbags for boat launching



Product Advantage



1. Our rubber has passed SGS certificate, and the rubber content has reached more than 60%. As you know the quality of rubber determines the service life and frequency of the airbag.

2. Our ship launching airbag uses reinforced synthetic cords, which doubles its carrying capacity.

3. There are explosion-proof designs on both ends, which improves the degree of bonding between the rubber theme and the metal parts, ensures air tightness, and solves hidden safety hazards to prevent explosions.



1.8*18mtr Marine Rubber Airbag For Boat Launching 0





Technical Requirement



According to CB/T 3795--1996, marine rubber fender should meet the following requirements.

  1.  Dimensional Deviation:

Diameter & Effective Length Deviation: ±2%

Total Length Deviation: ±4%

  1. Amount of Elastic Deformation: diameter deformation amount ≤ 5% under 1.2 times working pressure.
  2. Safety Factor: >4.5
  3. Air Tightness: depressurization < 5% after 1hour inflation
  4. Surface Quality: fairing line shape, no crack, no bubble, no double skin, no impurities, no distinct dirt and other apparent defect.
  5. Anti-explosion design of end part.

1.8*18mtr Marine Rubber Airbag For Boat Launching 1





Specifications



Diameter(m) Effective Length(m) Layer Pressure(MPa)
1.0 10 5~6 0.07~0.10
1.0 12 5~6 0.07~0.10
1.0 15 5~6 0.07~0.10
1.2 10 5~6 0.08~0.12
1.2 12 5~6 0.08~0.12
1.2 15 5~6 0.08~0.12
1.5 12 5~8 0.08~0.16
1.5 15 5~8 0.08~0.16
1.5 18 5~8 0.08~0.16
1.5 20 4~8 0.08~0.16
1.5 24 5~8 0.08~0.16
1.8 12 5~8 0.08~0.15
1.8 15 5~8 0.08~0.15
1.8 18 5~8 0.08~0.15
1.8 20 5~8 0.08~0.15
1.8 24 5~8 0.08~0.15
2.0 18 6~10 0.08~0.18
2.0 20 6~10 0.08~0.18
2.0 24 6~10 0.08~0.18
2.5 18 7~10 0.07~0.13
2.5 20 7~10 0.07~0.13
2.5 24 7~10

0.07~0.13





1.8*18mtr Marine Rubber Airbag For Boat Launching 2



1.8*18mtr Marine Rubber Airbag For Boat Launching 3

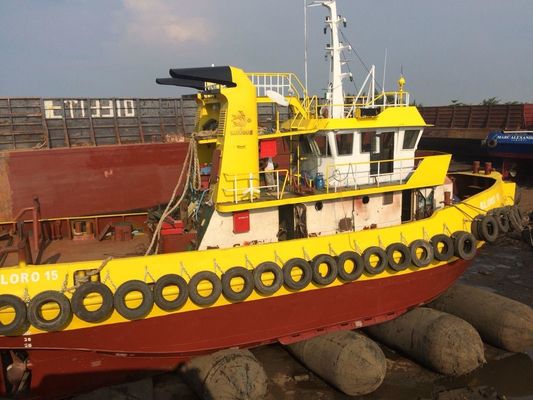

Marine Rubber Airbag Application



1.Ship Launching & Upgrading

2.Weight Lifting & Moving

3.Buoyancy Aid & Salvage



1.8*18mtr Marine Rubber Airbag For Boat Launching 4



1.8*18mtr Marine Rubber Airbag For Boat Launching 5



Our Services

1.One-to-one VIP service.

2.Lifelong after-sale service.

3.Professional suggestions for suitable marine rubber airbag size and quantity.

4.Teach customers to use the marine rubber airbag on site .

5.Any questions will be replied within 24 hours.



1.8*18mtr Marine Rubber Airbag For Boat Launching 6
